Description

Price

1

Speedometer | Includes 10 to 10c

515177914

$593.82

2

Speedometer Button | XTP

415129355

$13.94

3

Gauge Ring

415129370

$10.66

4

Lens | XTP

415129349

$23.05

5

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$139.97

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$139.97

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

8

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

9

Cap

515176498

$12.18

10

Rubber Cap Protector

219800280

$17.66

11

Torx Screw M6 X 20

250000722

$1.34

12

Panel Nut M6 X 1.0

250100198

$1.73

13

DESS Switch

515177249

$106.12

17

Safety Nut (DESS Switch)

278002963

$2.72

18

DESS

515178284

$81.51

21

Voltage Regulator

515176364

$147.66

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

23

Temperature Sensor This part replaces 420664508.

420664509

$142.28

26

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

WIRING HARNESS MAIN - Call your local BRP dealership | 600, Includes 1 to 258

515176834

Unavailable

30

Lock

515176681

$18.43

31

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

$10.63

32

Ground Wire

515176358

$26.12

33

Black, Dart

414644300

$0.78

34

Tie Rap Mount (screwable)

515176795

$5.11

35

Insert

293450275

$9.89

36

Hex. Flange Screw M6 X 20

207662044

$1.66

37

Lock Washer Serrated M6

250200041

$0.92

38

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

39

Tie-Rap 180 mm

414115200

$0.09

39

Tie Wrap 368 mm

293750008

$0.85

39

Tie Wrap 142 mm

293750002

$0.88

39

Tie-Rap 173 mm

293750009

$0.85

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

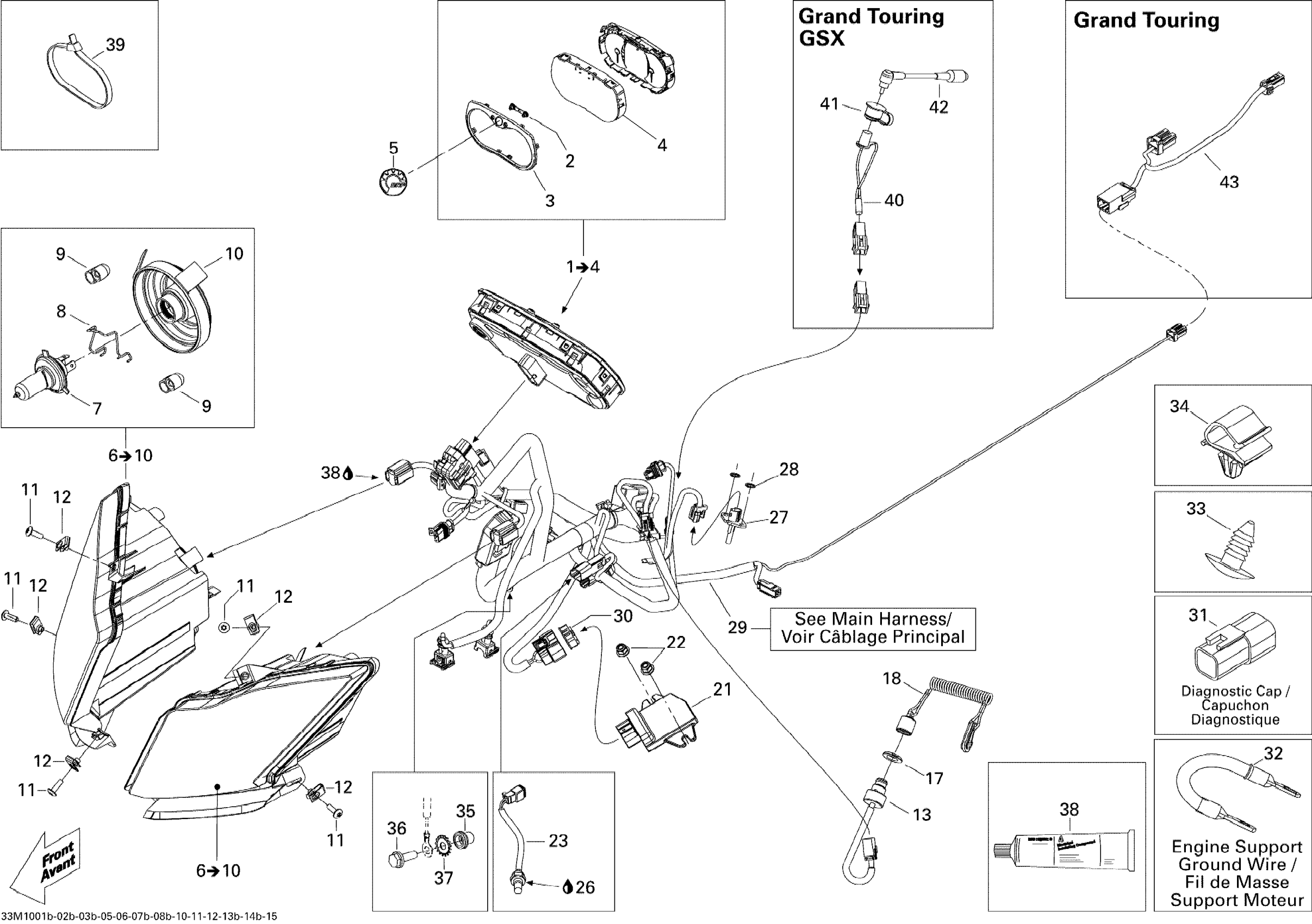

Ski-Doo Summit Sport 600, 2010 Electrical System Diagram

BULB HOLDER - Call your local BRP dealership

Not Available As Spare Parts

Not Available As Spare Parts

WIRING HARNESS MAIN - Call your local BRP dealership | 600, Includes 1 to 258

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
