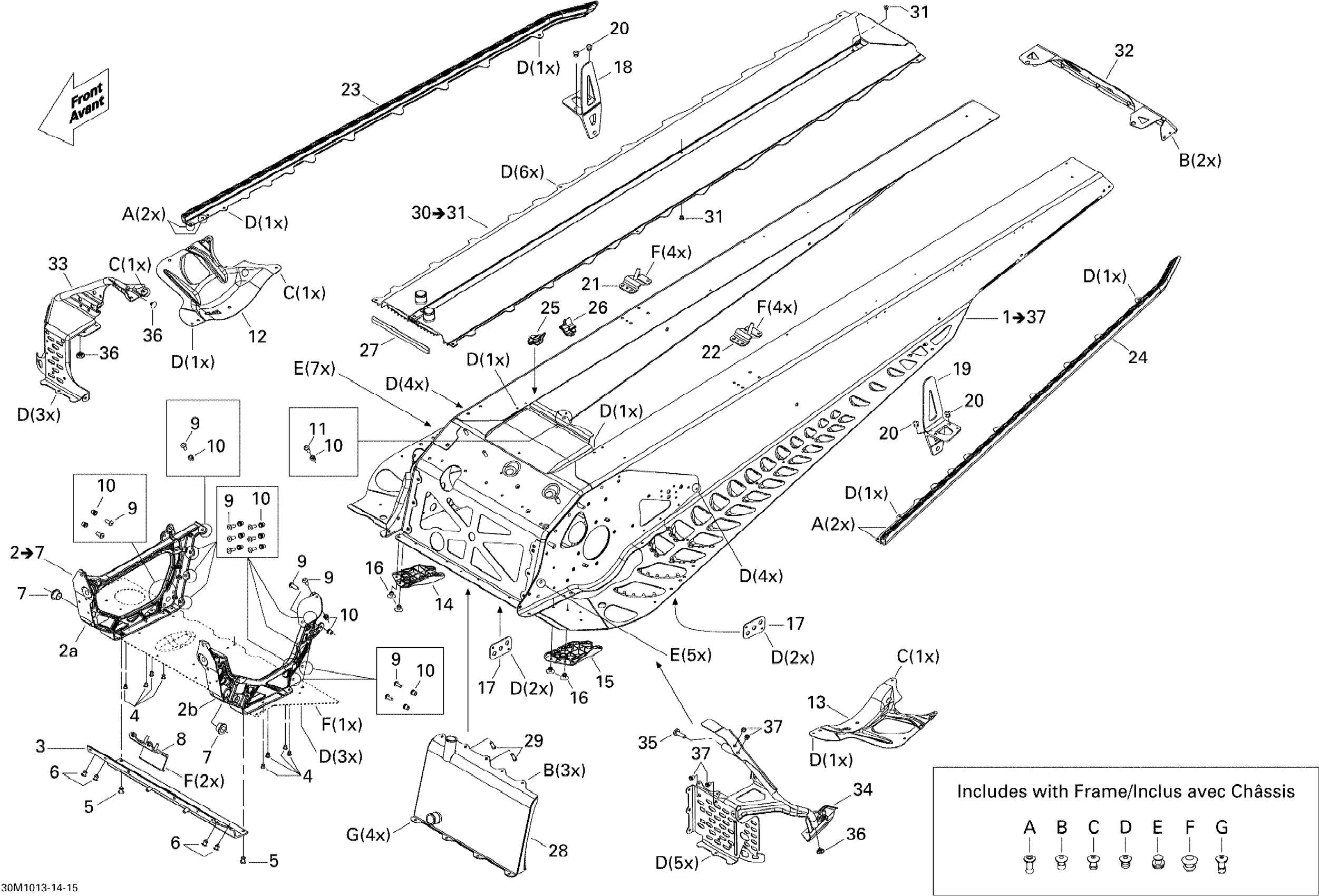

Ski-Doo Summit Sport 600, 2010 Frame Diagram

#

Description
Price

1

FRAME 146 - Call your local BRP dealership | Includes 1 to 37

415129469

Unavailable

2

E Module | Includes 10n to 10at

518327567

$428.43

2a

RH Member

518326795

$259.97

2b

LH Member

518326796

$210.74

3

Front Member

518326198

$59.97

4

Stavex Rivet

293150144

$0.77

5

Hemlock Rivet 6.5 mm

293150120

$7.23

6

Hemlock Rivet, 6.5 mm

293150119

$4.00

7

Leg Bushing

505072690

Unavailable

8

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

9

Hex. Flange Screw M6 X 20

207662044

$1.66

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Hex. Flange Screw M6 X 20

207662044

$1.66

12

RH Reinforcement

518324874

$25.35

13

LH Reinforcement

518324875

$25.35

14

RH Deflector, Black Polypropylene

518325782

$11.77

15

LH Deflector, Black Polypropylene

518325783

$11.77

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

17

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

$7.08

18

RH Suspension Bracket

518324976

$39.97

19

LH Suspension Bracket

518324977

$40.74

20

Ornit Rivet 6,5 X 14.5

293150266

$1.94

21

RH Rear Base

518325973

$18.43

22

LH Rear Base | Includes 10v to 10x

518325974

$18.43

23

RH ROLLER - Call your local BRP dealership

518325159

Unavailable

24

LH Roller | Includes 10bd to 10be

518325160

$78.43

25

RH SEAL - Call your local BRP dealership

518325653

$6.37

26

LH SEAL - Call your local BRP dealership

518325654

Unavailable

27

NEOPRENE SEAL - Call your local BRP dealership

293200105

$5.72

28

Front Radiator | Includes 10b to 10b2

518326485

$434.58

29

Clinch Stud M6 X 20

250300027

$1.92

30

REAR RADIATOR ASS'Y, 146 - Call your local BRP dealership | Includes 10bk to 10bp

518326728

Unavailable

31

Stavex Rivet

293150144

$0.77

32

Rear Cap

518327105

$20.74

33

RH Stirup | Includes 10aa to 10ab

518328938

$166.12

34

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

35

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

36

Full Moon Dart 5 mm

293730042

$2.12

37

Insert M5 X 0.8

293450268

$1.95

A

Pop Rivet 3/16"

390402300

$0.64

B

Avex Rivet

390909200

$0.29

C

Avex Rivet

390909100

$0.29

D

Stavex Rivet

293150144

$0.77

E

Henrob Rivet

293150146

$1.92

F

Hemlock Rivet, 6.4 mm

293150174

$6.43

G

MONOBOLT RIVET 4.8 - Call your local BRP dealership

293150179

$1.83
