Description

Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

2

Cap

572051500

$5.38

3

Grip

506152486

$14.71

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.99

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

Hex. Flange Screw M8 X 40

250000352

$3.26

8

Steering Pad

506152192

$54.58

9

Strap Ass'y | Package XMR

506152115

$43.05

10

Black Support Plate

506152536

$8.60

11

Hex. Flange Screw M6 X 20

207662084

$0.83

12

Bushing | Package XMR

506152156

$5.35

13

Hex. Flange Elastic Nut M6

233261494

$1.26

14

Steering Column

506152964

$189.20

15a

Upper Half Housing

506152219

$1.68

15b

Lower Half-Housing

506152217

$5.57

15c

Upper Vibration Ring

506152292

$0.72

15d

Lower Vibration Ring

506152518

$4.52

16

Housing Bushing

506152297

$10.23

17

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

18

Hex. Flange Screw M6 X 70

207667056

$3.61

19

Hex. Flange Screw M6 X 70

207667044

$0.70

20

Elastic Flange Nut M6 X 1.0

233261416

$1.74

21

Plate

506152163

$10.23

22

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

23

Elastic Stop Nut M10

232500416

$1.56

24

Tie-Rod

506152498

$36.89

25

LH Thread Ball Joint

506152081

$39.97

26

LH Threaded Hex. Jam Nut M10

250100016

$0.72

27

RH Threaded Ball Joint

506152019

$39.97

28

RH Threaded Hex. Jam Nut M10

732610010

$0.72

29

Washer

506152194

$4.42

30

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

31

Elastic Stop Nut M10

232500416

$1.56

32

Bushing

506152521

$13.60

33

Not Available As Spare Parts

XXX

Unavailable

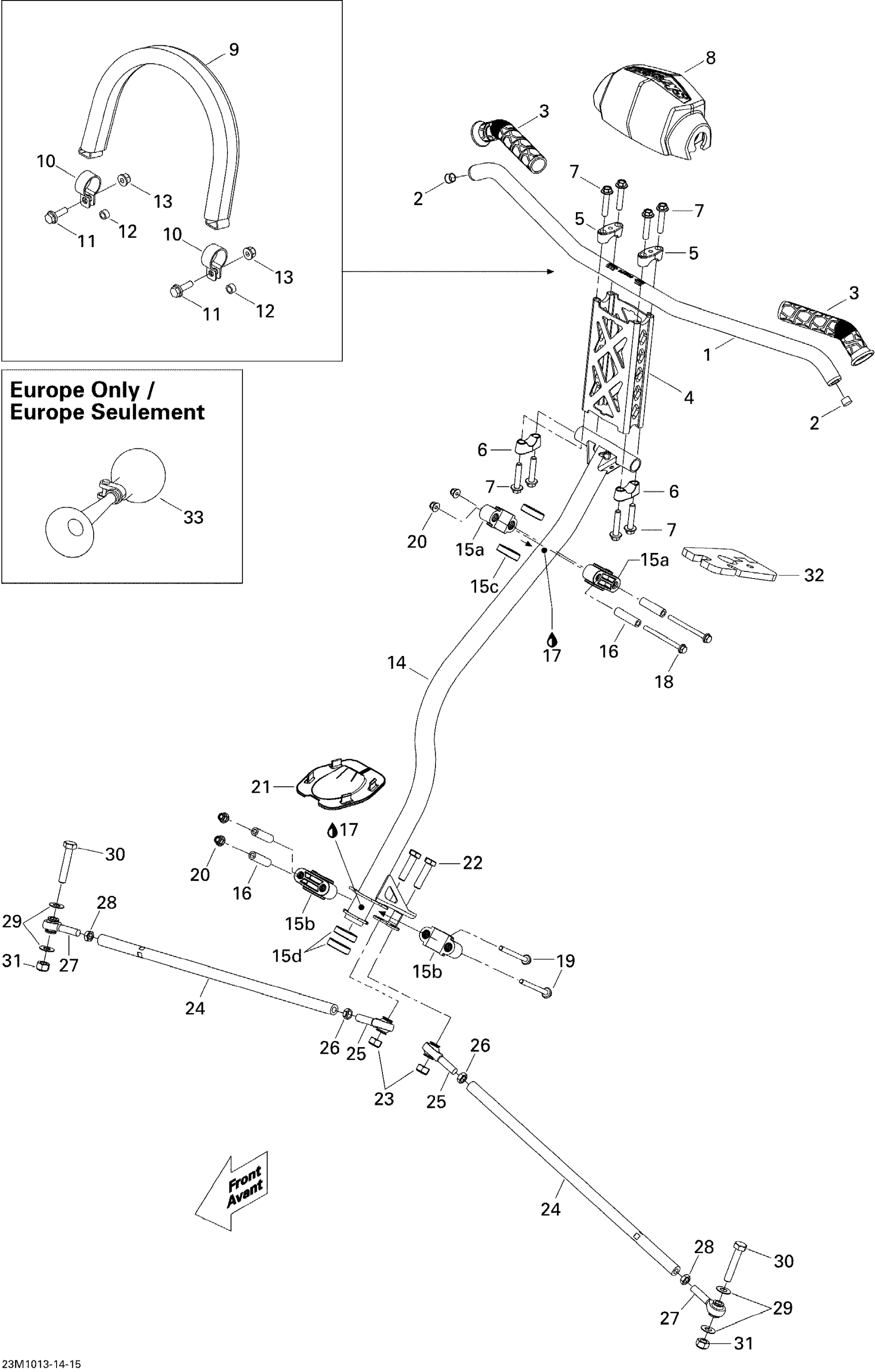

Ski-Doo Summit Sport 600, 2010 Steering Diagram
