Description

Price

1

Chaincase | 800R ETEC

504152942

Unavailable

2

Hex. Flange Screw M6 X 20

207662034

$1.74

3

Flange Elastic Nut M6

233261434

$3.61

6

Oil Seal

293200158

$12.52

7

Ball Bearing

293350115

$11.15

8

Circlip

504152576

$8.71

9

Shim

504152628

$8.40

10

Sprocket, 19 Teeth

504152031

$102.28

18

Spring Washer M10

504152784

$6.26

19

Hex. Screw M10 X 30

207103044

$1.25

29

Oil Seal

293200159

$13.12

30

Ball Bearing

293350059

$30.74

31

Circlip

504152582

$8.71

32

Kit Sprocket This part replaces 504152581.

861805539

$149.97

33

Circlip

504152572

$6.26

34

O-Ring

293300122

$2.06

35

Magnetic Cap

504152619

$23.05

36

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

39

Drive Chain, 104 Links

504152629

$173.82

40

Hex. Nut M10 X 1.5

232006414

$1.11

41

Adjustment Screw

504152602

$9.62

42

Magnetic Plug 1/8 - 27 NPTF

504152636

$8.95

43

Bonded Washer

250200100

$1.74

44

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

45

Tensioner chain

504153429

$13.77

46

Slider Chain

504152739

$67.66

47

Tensioner Axle

504152841

$14.65

48

Circlip

504152282

$3.11

51

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$324.58

51a

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

51b

Rotation Sensor

504152896

$35.35

52

Tight Seal

293300130

$7.31

53

Hex. Flange Screw M6 X 1.0 X 30

250000360

$1.74

54

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

55

Cap

504152860

$19.20

55a

Male Connector

414580700

$3.38

55b

Polyurethane Hose 10000Mm Long

219704410

$46.12

58

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

79

Retaining Ring

504153886

$18.43

80

Ball Bearing

293350059

$30.74

81

O-Ring

293300122

$2.06

82

Magnetic Cap

504152619

$23.05

83

Circlip

504152572

$6.26

84

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

85

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.89

86

Hex. Flange Elastic Nut M8

233281414

$1.14

87

Not Available As Spare Part - Friction Washer

Unavailable

89

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

91

Drive Axle Ass'y

504154054

$516.89

93

TRACK ASS'Y 15X146X2.0 - Call your local BRP dealership

504152843

$859.99

93a

Track Guide | Track Width 16''

415129528

$3.12

93b

Cleat

504152651

$8.22

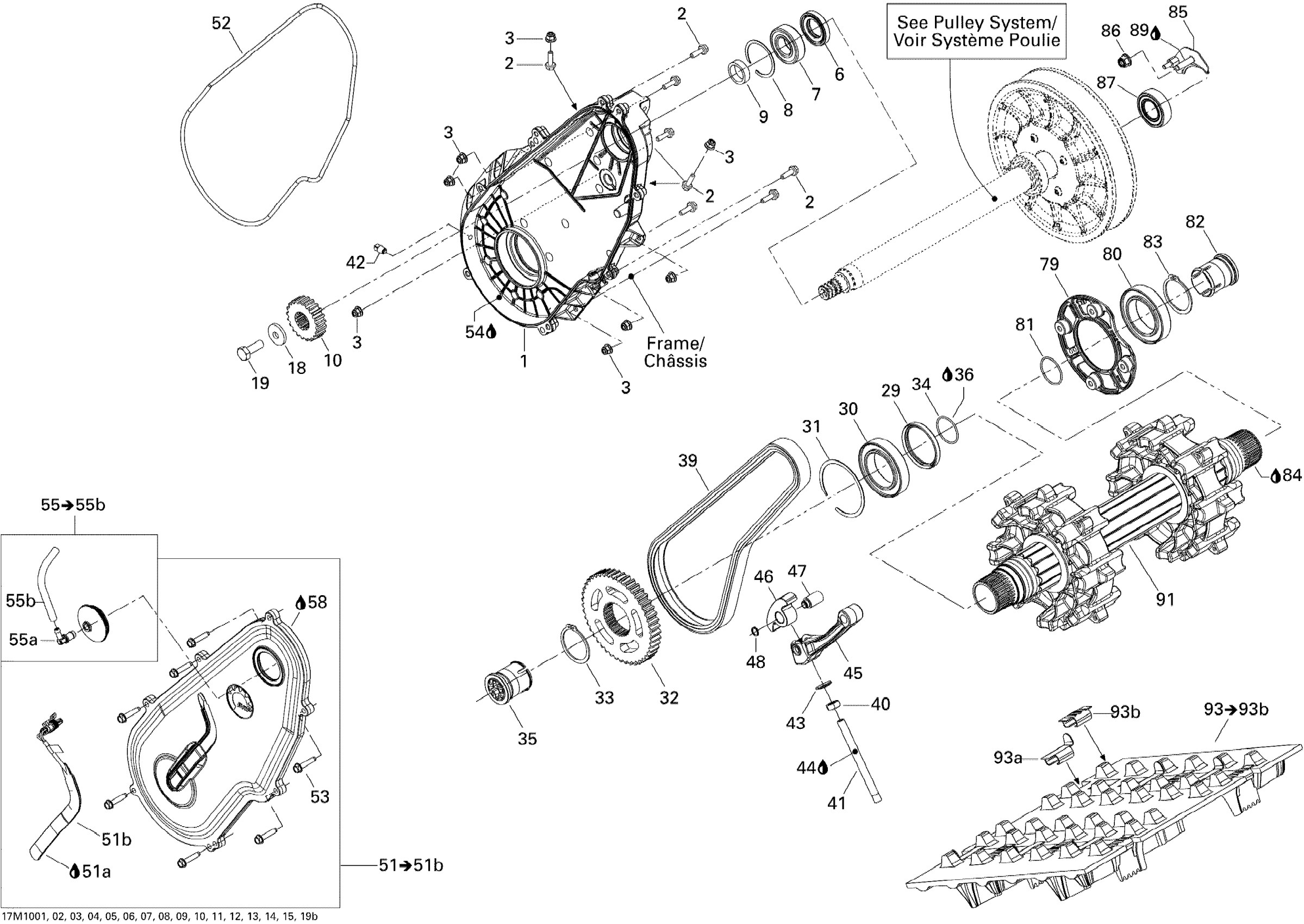

Ski-Doo Summit Sport 600, 2010 Drive System Diagram
