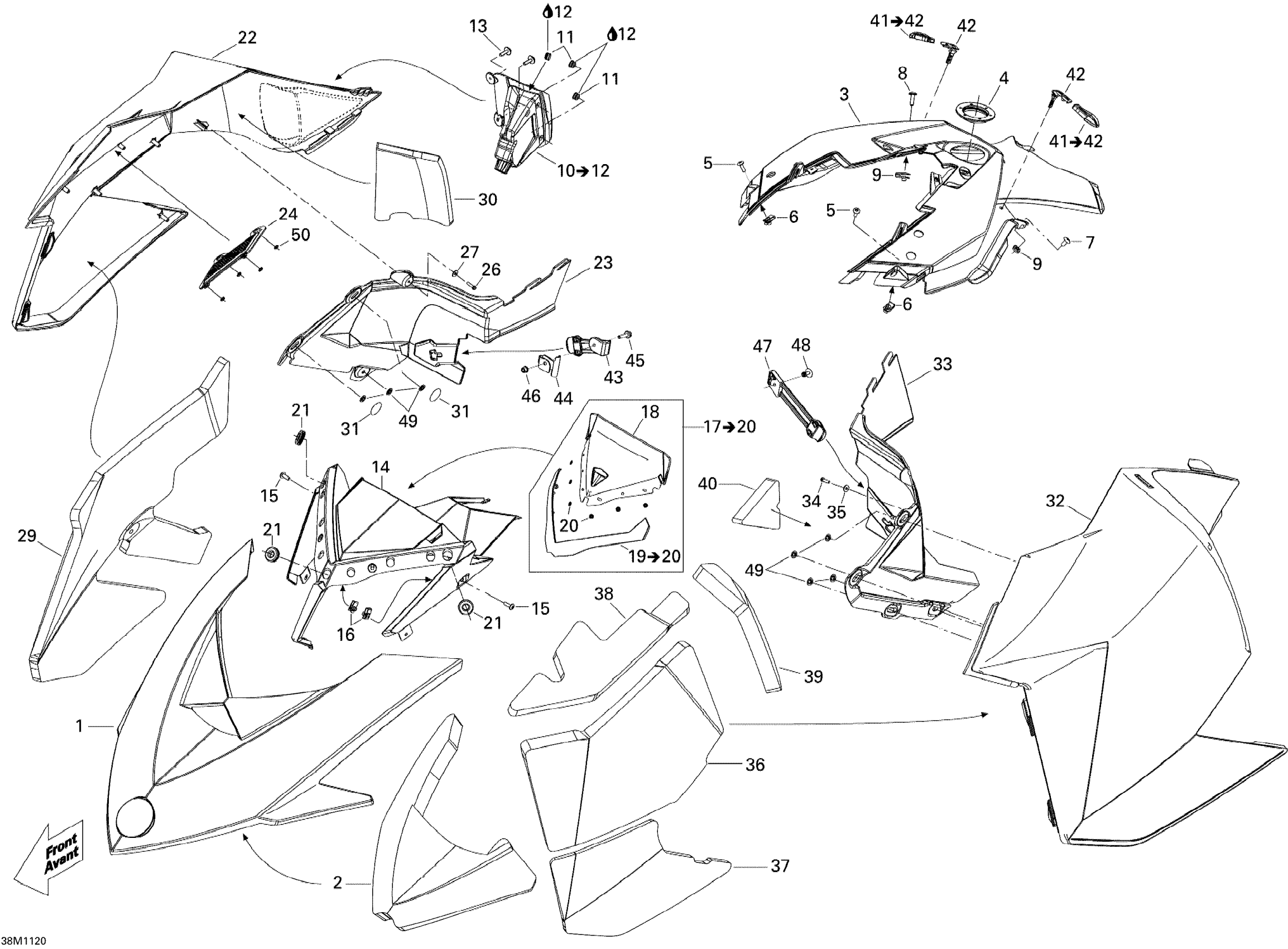

Ski-Doo Summit SP 800R P-TEK, 2011 Hood Diagram
#
2
Hood Foam
517304913
Unavailable
3
Deep Black Console
517303923
Unavailable
4
Console Nut
517304518
Unavailable
5
Torx Screw M6 X 20
250000722
Unavailable
6
Panel Nut M6 X 1.0
250100198
Unavailable
7
Torx Truss Screw M6 X 16
250000721
Unavailable
8
Torx Screw M6 X 20
250000722
Unavailable
9
Panel Nut M6 X 1.0
250100198
Unavailable
10
Black, RH Console | Includes 400 to 400b
517304322
Unavailable
11
Black, Cap
275500241
Unavailable
13
Screw M4 X 16
250000725
Unavailable
15
Torx Screw M6 X 20
250000722
Unavailable
16
Panel Nut M6 X 1.0
250100198
Unavailable
17
Windshield 285 Ass'y | Includes 800 to 800b
517304390
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Windshield Support Kit
860200089
Unavailable
20
Push Nut
732610072
Unavailable
21
Grommet
517303756
Unavailable
22
Deep Black, RH Panel
517304029
Unavailable
23
Deep Black RH Moulding Panel
517303671
Unavailable
24
Grille
517303622
Unavailable
26
Hex. Flange Screw K40 X 16
241141660
Unavailable
27
Flat Washer 4 mm, Stainless
234042600
Unavailable
29
RH Center Foam
517304883
Unavailable
30
RH Panel Rear Foam
517304884
Unavailable
31
Adhesive Patch
518325560
Unavailable
32
Deep Black, LH Panel
517304030
Unavailable
33
Deep Black, LH Moulding Panel
517303673
Unavailable
34
Hex. Flange Screw K40 X 16
241141660
Unavailable
35
Flat Washer 4 mm, Stainless
234042600
Unavailable
36
LH Panel Center Foam
517304887
Unavailable
37
LH Panel Lower Foam
517304888
Unavailable
38
LH Panel Upper Foam
517304889
Unavailable
39
LH Panel Rear Foam
517304890
Unavailable
40
Foam
517304891
Unavailable
42
Panel Latch
517303981
Unavailable
43
RH Panel Latch
517303612
Unavailable
44
Latch Support
517304221
Unavailable
46
Hex. Flange Elastic Nut M5
233251414
Unavailable
47
LH Panel Latch
517303808
Unavailable
49
Push Nut
732610072
Unavailable
50
Push Nut
732610072
Unavailable
