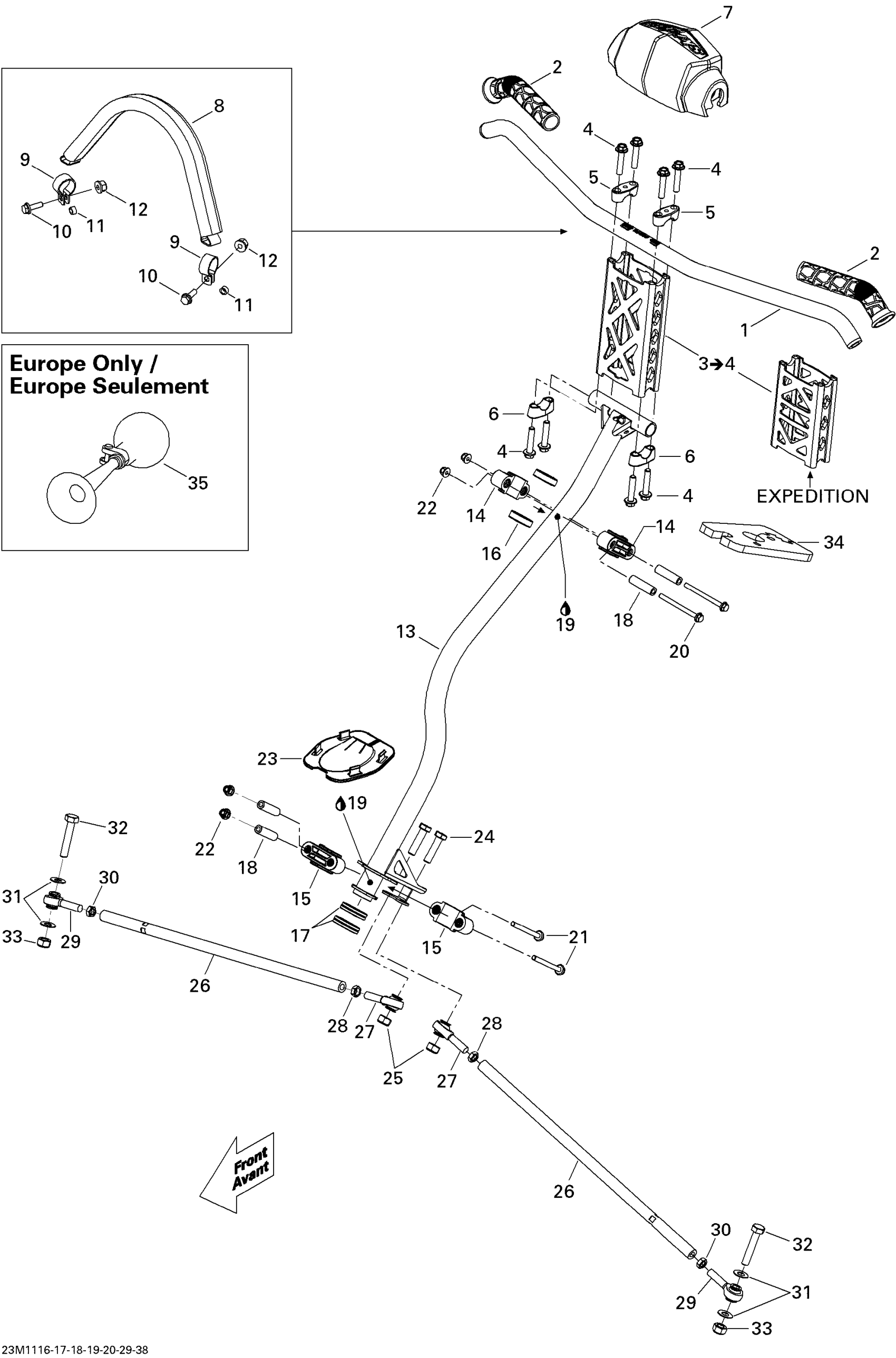

Ski-Doo Summit SP 800R P-TEK, 2011 Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

2

Grip

506152486

$14.71

3

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

Unavailable

4

Hex. Flange Screw M8 x 40

250000285

$0.77

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

Steering Pad

506152192

Unavailable

8

Strap Ass'y | Package XMR

506152115

$43.05

9

Black Support Plate

506152536

$8.60

10

Hex. Flange Screw M6 X 20

207662084

Unavailable

11

Bushing | Package XMR

506152156

$5.35

12

Hex. Flange Elastic Nut M6

233261494

$1.26

13

Steering Column

506152964

$189.20

14

Upper Half-Housing

506152508

$7.40

15

Lower Half-Housing

506152217

$5.57

16

Upper Anti-Vibration Gasket

506152509

$4.52

17

Lower Vibration Ring

506152518

Unavailable

18

Housing Bushing

506152297

Unavailable

19

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

20

Hex. Flange Screw M6 X 70

207667056

$3.61

21

Hex. Flange Screw M6 X 70

207667044

Unavailable

22

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

23

Plate

506152163

$10.23

24

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

25

Elastic Stop Nut M10

232500416

$1.56

26

Tie-Rod

506152482

Unavailable

27

LH Thread Ball Joint

506152081

$39.97

28

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

29

RH Threaded Ball Joint

506152019

$39.97

30

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

31

Washer

506152194

$4.42

32

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

33

Elastic Stop Nut M10

232500416

$1.56

34

Bushing

506152521

$13.60

35

Not Available As Spare Parts

XXX

Unavailable
