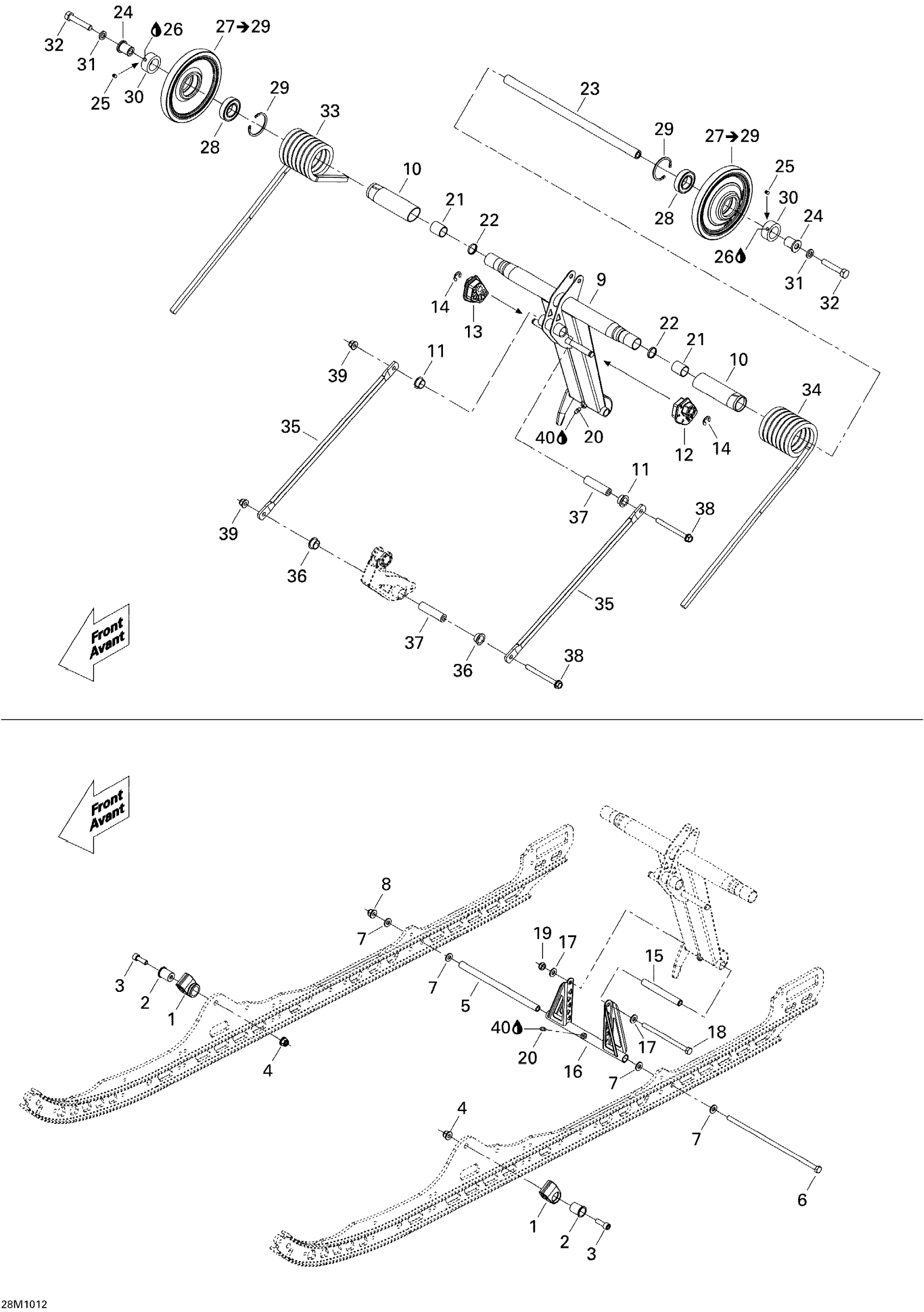

Ski-Doo Summit HillClimb, 2010 Rear Arm Diagram
#
Description
Price
1
Spring Support Kit
861805547
Unavailable
2
Spring Support Kit
861805547
Unavailable
3
Socket Head Screw M8 X 25
205082544
Unavailable
4
Hex. Flange Elastic Nut M8
233281414
Unavailable
5
Pivot Arm Axle
503189156
Unavailable
6
Bolt M8 X 248mm
503192440
Unavailable
8
Hex. Flange Elastic Nut M8
233281414
Unavailable
11
Swivel Bushing
503191555
Unavailable
12
LH Cam Adjuster
503191565
Unavailable
13
RH Cam Adjuster
503191566
Unavailable
14
E-Circlip
293370013
Unavailable
15
Upper Axle, Pivot Arm
503144300
Unavailable
16
Pivot Arm | Includes 3000j to 3000j3
503191209
Unavailable
18
Bolt M8, Short
732601197
Unavailable
19
Hex. Elastic Stop Nut M8
232581414
Unavailable
20
Grease Fitting
408200700
Unavailable
21
Extended Bushing
503191556
Unavailable
27
Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b
503191738
Unavailable
28
Ball Bearing
503193548
Unavailable
29
Retaining Ring
415129371
Unavailable
31
Washer
503189564
Unavailable
32
HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership
207205586
Unavailable
33
RH Spring
503192080
Unavailable
34
LH Spring
503192081
Unavailable
35
ROD_LINK - Call your local BRP dealership
503191148
Unavailable
36
Swivel Bushing
503191555
Unavailable
38
Hex. Flange Screw
207688544
Unavailable
39
Hex. Flange Elastic Nut M8
233281414
Unavailable
40
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
293550033
Unavailable
