Description

Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$81.51

2

Cap

572051500

$5.38

3

Grip

506152486

$14.71

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

Unavailable

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

Hex. Flange Screw M8 X 40

250000352

Unavailable

8

Steering Pad

506152192

Unavailable

9

Strap Ass'y | Package XMR

506152115

$43.05

10

Black Support Plate

506152536

$8.60

11

Hex. Flange Screw M6 X 20

207662084

Unavailable

12

Bushing | Package XMR

506152156

$5.35

13

Hex. Flange Elastic Nut M6

233261494

$1.26

14

MAIN TUBE - Call your local BRP dealership

506152478

Unavailable

15

Half-Housing

506152293

Unavailable

16

Housing Bushing

506152297

Unavailable

17

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

18

Lower Half-Housing

506152217

$5.57

19

Lower Vibration Ring

506152518

Unavailable

20

RETAINING RING - Call your local BRP dealership

506152440

Unavailable

21

Hex. Flange Screw M6 X 70

207667056

$3.61

22

Hex. Flange Screw M6 X 70

207667044

Unavailable

23

Hex. Flange Screw M6 X 70

207667056

$3.61

24

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

25

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

26

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

27

Plate

506152163

$10.23

28

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

29

Elastic Stop Nut M10

232500416

$1.56

30

Not Available As Spare Part - Friction Washer

Unavailable

31

ROD_TIE ASSY - Call your local BRP dealership

506152499

Unavailable

32

LH Thread Ball Joint

506152081

$39.97

33

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

34

RH Threaded Ball Joint

506152019

$39.97

35

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

36

Washer

506152194

$4.42

37

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

38

Elastic Stop Nut M10

232500416

$1.56

39

Bushing

506152476

Unavailable

40

Horn

549011291

$35.35

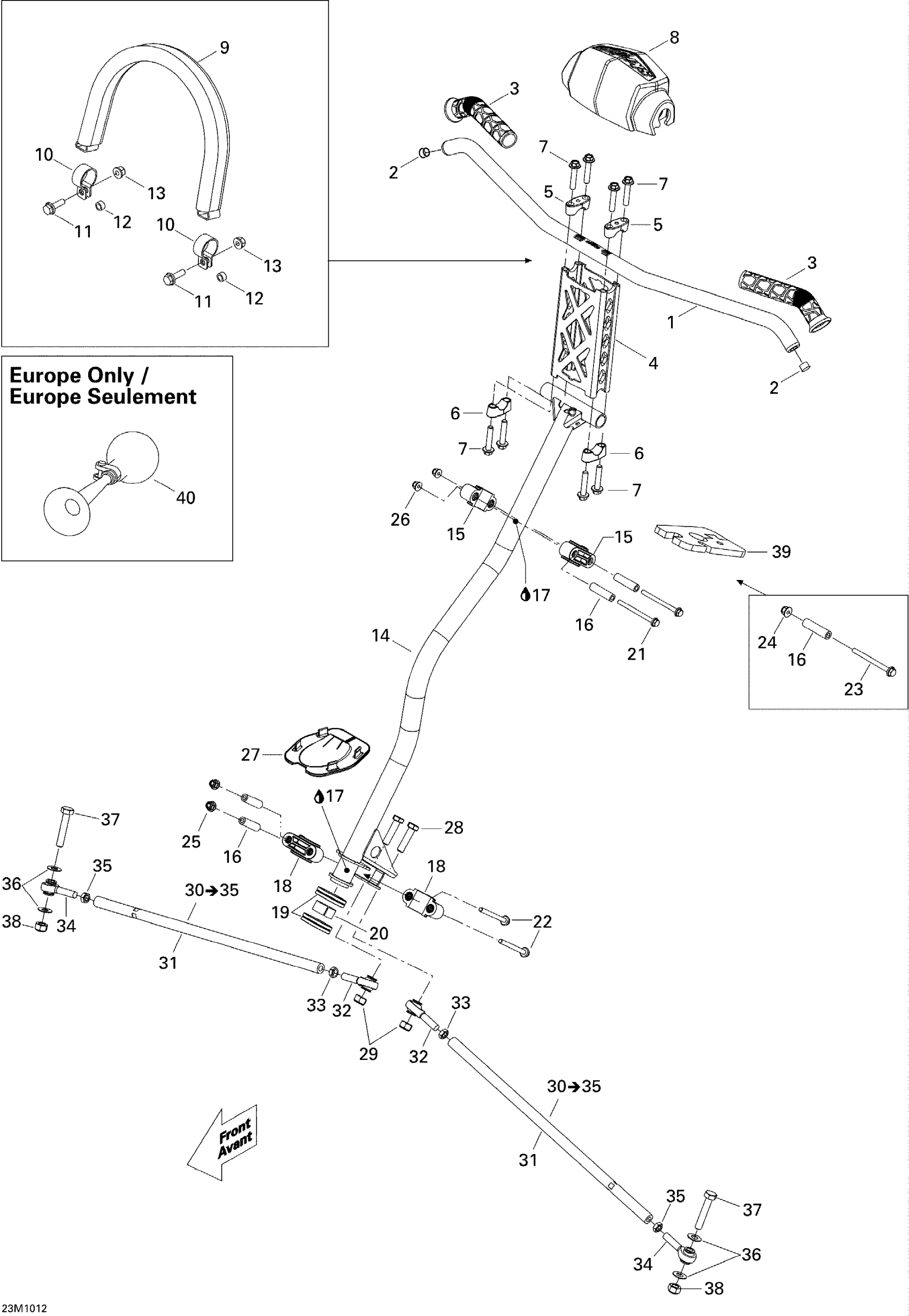

Ski-Doo Summit HillClimb, 2010 Steering Diagram

Extension Kit ( 205mm ) This part replaces 860200269.

Hex. Flange Screw M8 X 40

Steering Pad

Hex. Flange Screw M6 X 20

MAIN TUBE - Call your local BRP dealership

Half-Housing

Housing Bushing

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

Lower Vibration Ring

RETAINING RING - Call your local BRP dealership

Hex. Flange Screw M6 X 70

Elastic Flange Nut M6 X 1.0

Elastic Flange Nut M6 X 1.0

Elastic Flange Nut M6 X 1.0

Not Available As Spare Part - Friction Washer

ROD_TIE ASSY - Call your local BRP dealership

LH Threaded Hex. Jam Nut M10

RH Threaded Hex. Jam Nut M10

HEX. SCREW M10 X 60 - Call your local BRP dealership

Bushing
