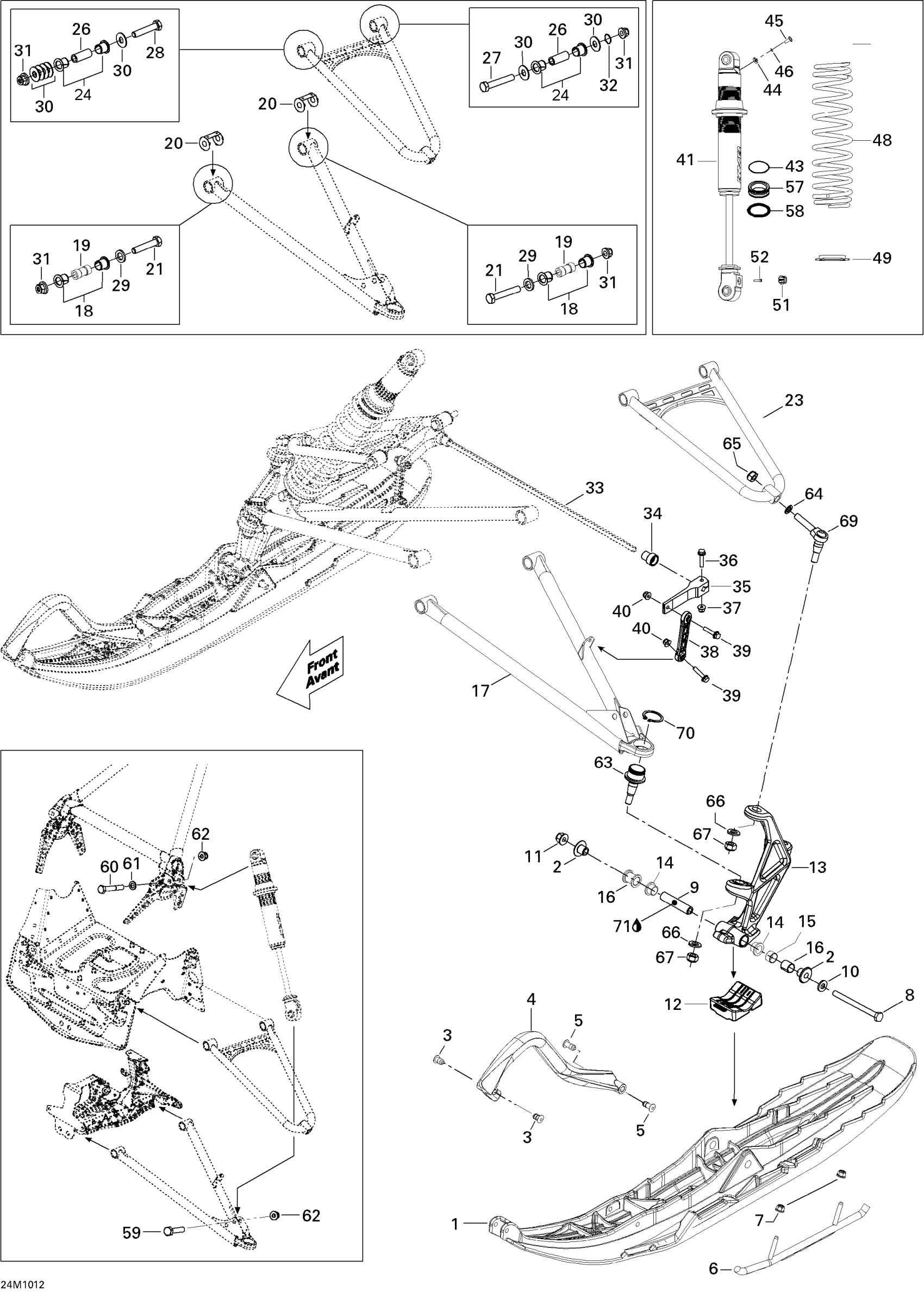

Ski-Doo Summit HillClimb, 2010 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

Unavailable

1

Black Pilot Ski Ass'y 6.9 LH

505073055

Unavailable

2

Ski Bushing

505071781

Unavailable

3

Retainer 17mm long

505071812

$4.43

4

Black, Handle

505070963

Unavailable

5

Retainer 23mm Long

505072133

$5.03

6

Round Carbide Runner

860201043

$144.58

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

9

Spacer

506133300

Unavailable

10

Washer

732900049

Unavailable

11

Hex. Flange Elastic Nut M10

233201414

$1.26

12

Ski Stopper

505071779

$16.12

13

LH SKI LEG - Call your local BRP dealership

505072801

Unavailable

13

RH SKI LEG - Call your local BRP dealership

505072803

Unavailable

14

Leg Cushion

505072663

Unavailable

15

SPACER - Call your local BRP dealership

505072747

Unavailable

16

Spacer

505072807

Unavailable

17

RH LOWER ARM - Call your local BRP dealership

505072654

Unavailable

17

LH LOWER ARM - Call your local BRP dealership

505072655

Unavailable

18

Cushion

503191766

$5.71

19

Aluminum Bushing

505072401

$16.12

20

Wear Plate

505072634

Unavailable

23

LH UPPER ARM - Call your local BRP dealership

505073188

Unavailable

23

RH UPPER ARM - Call your local BRP dealership

505073190

Unavailable

24

Swivel Bushing

503191555

Unavailable

26

Sleeve

505072143

Unavailable

27

SCREW HEX. M10 X 65 - Call your local BRP dealership

250000387

Unavailable

28

Screw Hex. M10 X 60

250001023

Unavailable

29

Washer

503189564

Unavailable

30

Washer

505072392

Unavailable

31

Hex. Flange Elastic Nut M10

250100165

Unavailable

32

O-Ring

505072448

Unavailable

33

Stabilisator

505072602

$71.99

34

Bushing

505072064

Unavailable

35

Stabilisator Lever

505072394

$16.12

36

Hex. Flange Screw M6 X 30

207663046

$1.42

37

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

38

Sway Bar Double Joint Link

505072204

Unavailable

39

Hex. Flange Screw M6 X 30

207663046

$1.42

40

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

41

FRONT SHOCK - Call your local BRP dealership | X

505072752

Unavailable

43

Piston Ring

503189308

$77.66

44

Air Valve

505070398

Unavailable

45

Screw | Not Shown

505070399

Unavailable

46

O-Ring

505070400

Unavailable

48

DEEP BLACK SPRING - Call your local BRP dealership

505072800

Unavailable

49

Spring Stopper

503194270

Unavailable

49

Spring Stopper

503194270

Unavailable

51

Adjustment Knob

505072753

Unavailable

52

Allen Screw M3 X 0.5 X 10

250000644

$1.74

57

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

58

O-Ring

414888312

$16.12

59

Hex. Screw M10 X 55

207005544

$1.85

60

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

61

Washer

503189564

Unavailable

62

Hex. Flange Elastic Nut M10

233201414

$1.26

63

Ball Joint

505073636

$49.97

64

Washer

503189276

Unavailable

65

Hex. Elastic Hex. Nut M12

250100089

$0.39

66

Flat Washer 12 mm

234021410

$0.68

67

Hex. Elastic Hex. Nut M12

250100089

$0.39

68

Washer

503189276

Unavailable

69

Upper Ball Joint

505072257

$16.89

70

Circlip

293370035

$2.55

71

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
