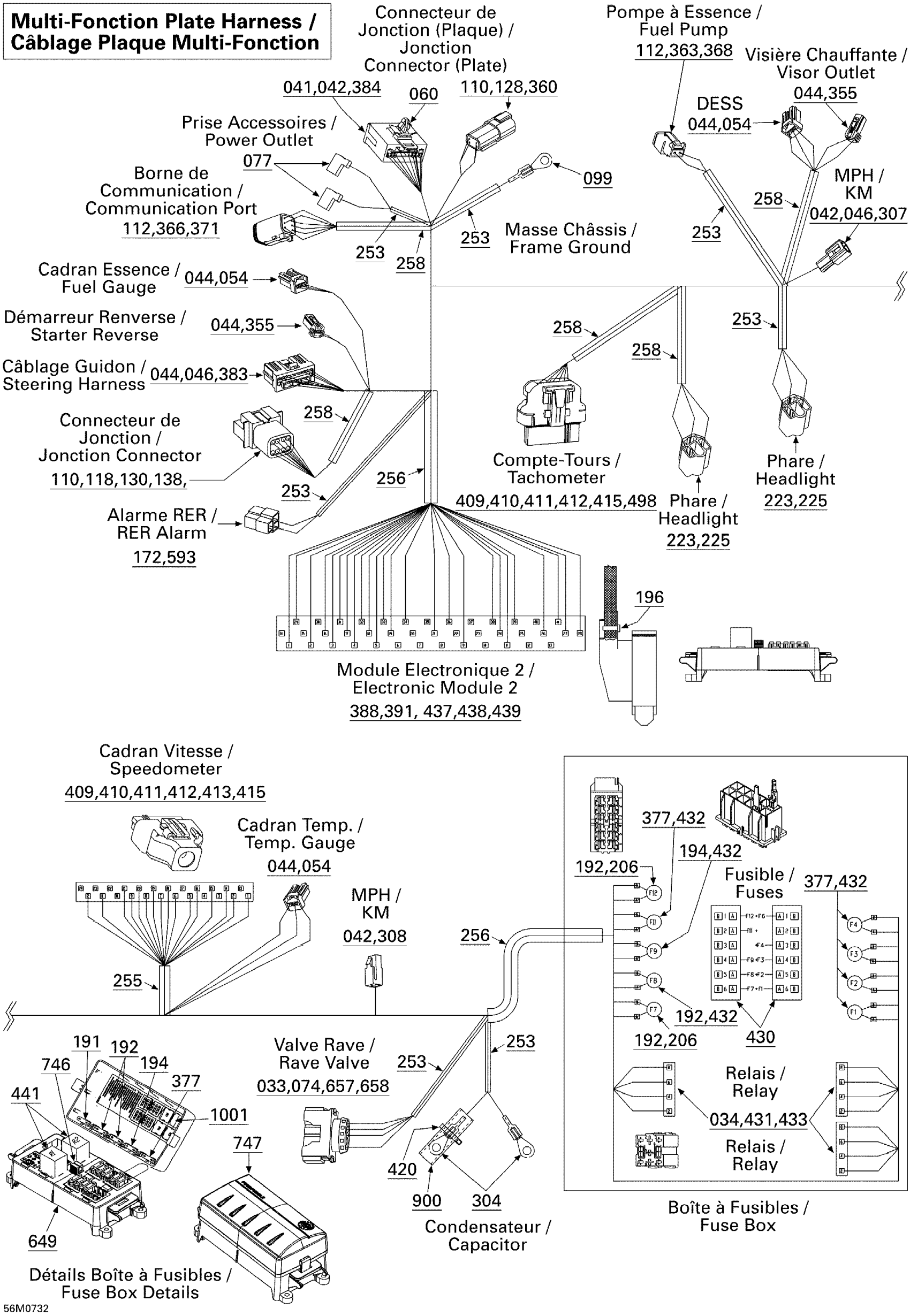

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Multi Function Plate Harness Diagram

#

Description
Price

1

Multi-Function Plate Harness | Includes 1 to 1001

515176475

Unavailable

33

Wire Seal

278000999

$2.93

34

Female Terminal

409010100

$5.30

41

Male Terminal

515175232

$1.45

42

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

44

Female Terminal

515175231

$4.00

46

Female Terminal

515175282

$6.24

54

Female Housing, 3 Circuits

515175495

$14.90

60

Housing Support

515175283

$8.18

74

Plug

409013700

$4.28

77

Female Terminal

409010300

$4.00

99

Open Barrel

278000992

$2.06

110

Male Terminal

278000631

$4.00

112

Female Terminal

278000632

$1.94

118

MALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001742

Unavailable

128

Female Wedge, 4 Circuits

278000636

$4.00

130

LOCK MALE, 8 CIRCUITS - Call your local BRP dealership

515175276

Unavailable

138

Sealing Cap

293000052

$2.93

172

Female Terminal

561503100

Unavailable

191

Fuse, 30 Amperes

410917200

$3.12

192

Fuse, 20 Amperes

409003900

$3.12

194

Fuse, 10 Amperes | North America

278001197

$2.06

196

Tie Wrap 142 mm

293750002

$1.01

206

Female Terminal

409004200

$4.28

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$12.75

255

Was 409901800 Tubing (13 mm)

219704400

$10.79

256

Tubing 16 Mm 1000Mm Long

219704408

$7.15

258

Tubing 10 MM 1000MM Long

219704407

$2.52

304

Ring Terminal

515175504

$7.25

307

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

308

FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175510

Unavailable

355

Female Housing, 2 Circuits

515175658

$14.90

363

Female Terminal Housing, 2 Circuits

515175670

$7.61

366

Male Housing, 6 Circuits

515175673

$12.66

368

Female Lock, 2 Circuits

515175675

$4.28

371

Male Wedge, 6 Circuits

515175678

$4.96

377

Fuse, 5 Amperes | CE

278000344

$3.12

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

384

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

388

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

409

Plug

515175812

$1.96

410

Female Housing, 24 Circuits

515175801

$8.73

411

Retainer Block

515175802

$10.34

412

Wire Seal

515175803

$2.76

413

BLOCK - Call your local BRP dealership

515175804

Unavailable

415

Female Terminal

515175806

$0.93

420

Tie-Rap 180 mm

414115200

$0.10

430

FUSE HOLDER - Call your local BRP dealership

515175857

Unavailable

431

RELAY HOLDER - Call your local BRP dealership

515175856

Unavailable

432

FEMALE TERMINAL - Call your local BRP dealership

515175855

Unavailable

433

FEMALE TERMINAL - Call your local BRP dealership

515175854

Unavailable

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.25

439

LOCK - Call your local BRP dealership

515175884

Unavailable

441

Relais *Relay This part replaces 410113604.

515177672

$43.25

498

Female Housing

710000399

$13.60

593

MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515176069

Unavailable

649

FUSE BOX BASE - Call your local BRP dealership

515176065

Unavailable

657

Male Housing, 5 Circuits

515176238

Unavailable

658

FEMALE TERMINAL - Call your local BRP dealership

515176239

Unavailable

746

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

747

COVER - Call your local BRP dealership

515176066

Unavailable

900

Hose

415079200

Unavailable

1001

FUSE DECAL - Call your local BRP dealership

516002975

Unavailable
