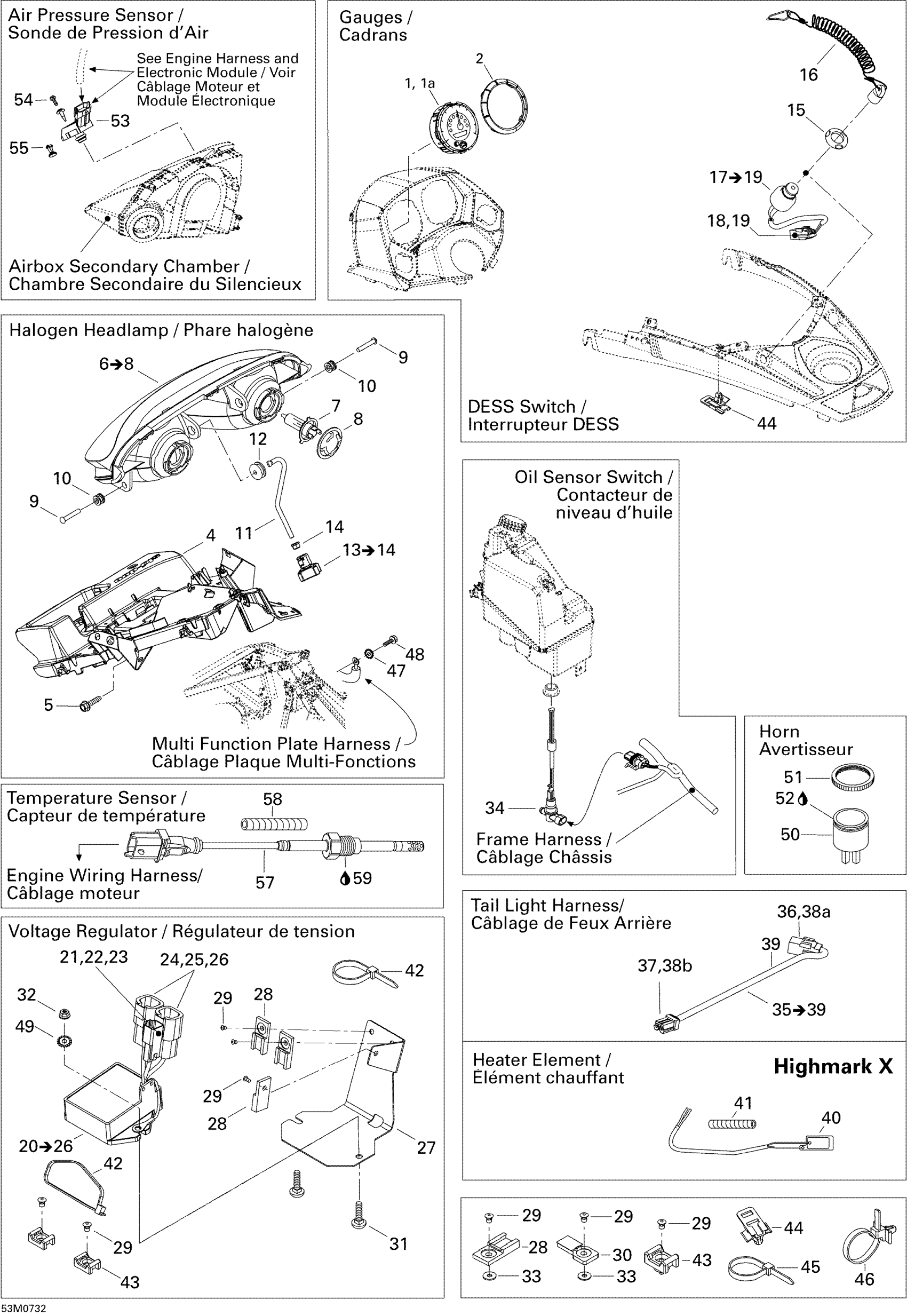

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Electrical Accessories Diagram

#

Description
Price

1

TACHOMETER/SPEEDO GAUGE - Call your local BRP dealership | Includes 3 to 3a

515176479

Unavailable

1a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

Unavailable

4

MULTI FUNCTION PLATE - Call your local BRP dealership

515176104

Unavailable

5

Hex. Flange Screw M6 X 16

210261650

$1.22

6

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

8

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

9

RIVET M6 X 35 - Call your local BRP dealership

293150128

Unavailable

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

15

Safety Nut (DESS Switch)

278002963

$2.72

16

DESS

515178284

Unavailable

17

DESS Switch

515177249

Unavailable

18

Male Terminal

515175232

$1.49

19

Male Housing, 3 Circuits

515175494

$15.35

20

Voltage Regulator | Includes 32 to 38

515176243

Unavailable

21

Male Housing, 2 Circuits

409206900

Unavailable

22

Male Terminal

278000631

$4.12

23

Male Lock, 2 Circuits

409207500

$3.02

24

Female Housing, 4 Circuits

278000635

$14.02

25

Male Terminal

515175568

$7.48

26

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

27

Housing Support

515176167

Unavailable

28

Clip

270000141

$8.33

29

Avdel Rivet 3/16"

293150037

$0.47

30

DEUTSCH GRAY CLIP - Call your local BRP dealership

515176209

Unavailable

31

Carriage Bolt M6 X 25

207762544

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

34

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

35

TAIL LIGHT HARNESS - Call your local BRP dealership | Includes 2 to 7

515176380

Unavailable

36

Male Terminal

515175232

$1.49

37

Female Terminal

515175231

Unavailable

38a

Male Housing, 3 Circuits

515175494

$15.35

38b

Female Housing, 3 Circuits

515175495

$15.35

39

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

40

HEATER ELEMENT - Call your local BRP dealership

515176139

Unavailable

41

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

42

Tie Wrap 368 mm

293750008

$0.85

43

Tie Rap Mount (screwable)

515176795

$5.11

44

Housing Support

515175283

$8.43

45

Tie-Rap 180 mm

414115200

$0.09

45

Tie Wrap 142 mm

293750002

Unavailable

45

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

$0.91

46

Tie-Rap 173 mm

293750009

Unavailable

47

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

48

Hex. Flange Screw M6 X 12

210261250

$1.56

49

Lock Washer Serrated M6

250200041

Unavailable

50

HORN - Call your local BRP dealership

515176035

Unavailable

51

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

52

Silicone Sealant 51388, 300 ml

296000309

Unavailable

53

Pressure Sensor

270600040

Unavailable

54

Tuflock Phillips Plastic Screw

414745900

$1.30

55

CAP - Call your local BRP dealership

508000465

Unavailable

56

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

$10.63

57

Temperature Sensor

515176132

Unavailable

58

Tubing 6 Mm 3000Mm Long

219704425

$13.14

59

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
