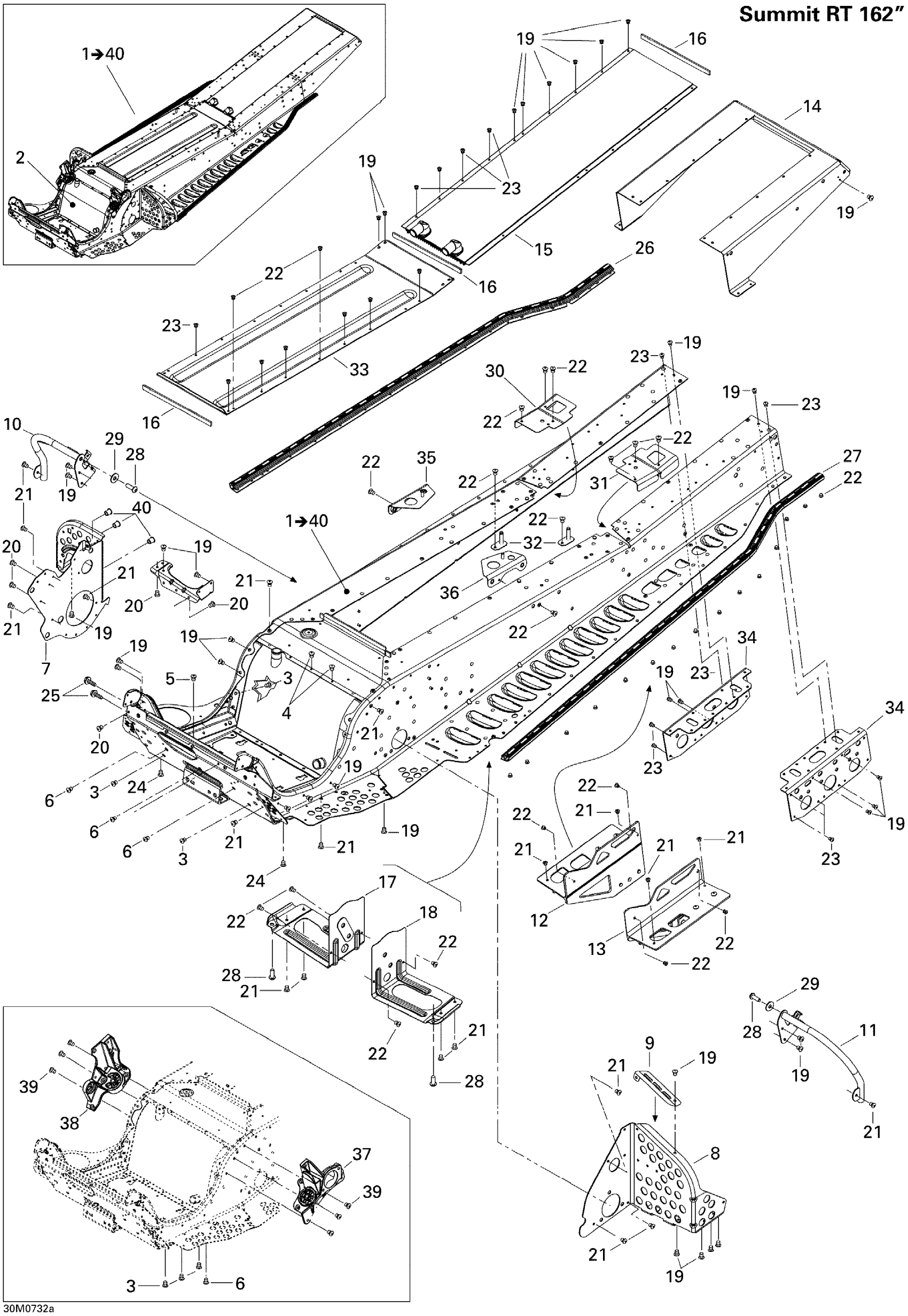

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Frame RT 162 Diagram

#

Description
Price

1

Frame RT 162" | Includes 1 to 40

415129239

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Avex Rivet

390909200

Unavailable

4

Avex Rivet

390909100

$0.29

5

Pop Rivet 3/16"

390402200

$0.26

6

Pop Rivet 3/16"

390402300

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

PLATE, BLACK - Call your local BRP dealership

518323105

$7.89

10

RH Toe Hold Support

518324098

Unavailable

11

LH Toe Hold Support

518324097

Unavailable

12

RH Suspension Bracket Ass'y

518324157

Unavailable

13

LH SUSPENSION BRACKET ASS'Y - Call your local BRP dealership

518324154

Unavailable

14

REAR CAP - Call your local BRP dealership

518325007

Unavailable

15

Rear Radiator

518324850

Unavailable

16

GASKET - Call your local BRP dealership

293200104

Unavailable

17

RH FOOTREST REINFORCEMENT - Call your local BRP dealership

518323952

Unavailable

18

LH Footrest Reinforcement

518323954

Unavailable

19

Avex Rivet

390909200

Unavailable

20

Avex Rivet

390909100

$0.29

21

Pop Rivet 3/16"

390402200

$0.26

22

Pop Rivet 3/16"

390402400

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

26

RH ROLLER - Call your local BRP dealership

518324978

Unavailable

27

LH ROLLER - Call your local BRP dealership

518324979

Unavailable

28

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

29

Flat Washer 8 mm

234082410

$1.11

30

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

31

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

32

Tank Bracket

518322791

Unavailable

33

Center Plate

518323804

Unavailable

34

REAR REINFORCEMENT PLATE - Call your local BRP dealership

518324991

Unavailable

35

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

36

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

37

LH Engine Support

518323715

Unavailable

38

RH ENGINE SUPPORT - Call your local BRP dealership

518323716

Unavailable

39

Hemlock Rivet 6.5 mm

293150120

$7.23

40

Insert

293450275

Unavailable
