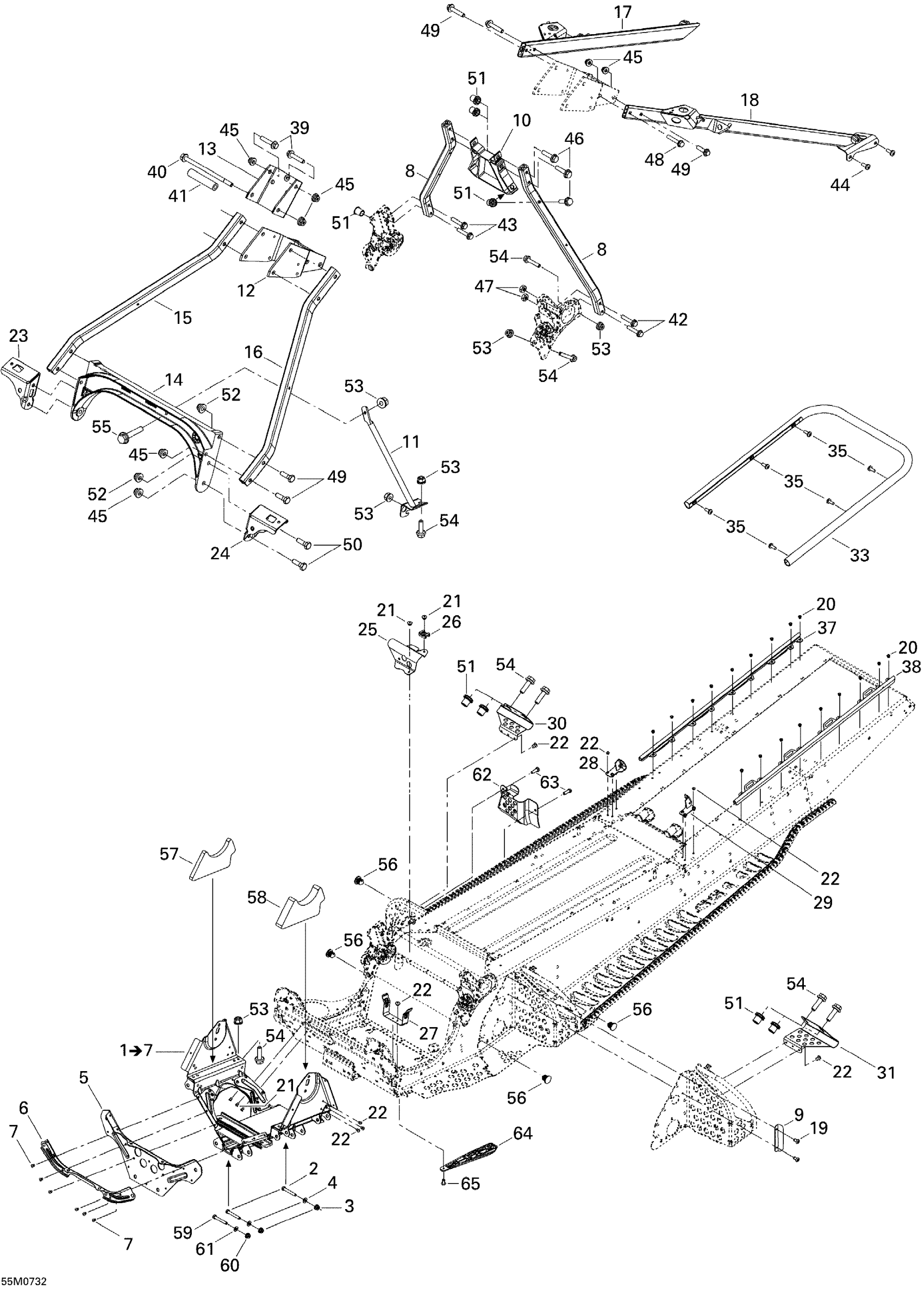

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Frame and Components Diagram

#

Description
Price

1

FRONT MEMBER ASS'Y - Call your local BRP dealership | Includes 1 to 7

518325433

Unavailable

2

Hex. Screw M8 X 55

207085544

$1.62

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Flat Washer 8 mm

234081410

Unavailable

5

FRONT PLATE - Call your local BRP dealership

518325422

Unavailable

6

Front Plate Reinforcement

518324727

Unavailable

7

Avex Rivet

390909100

$0.29

8

HANDLE SUPPORT - Call your local BRP dealership

518324228

Unavailable

9

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

10

HANDLE SUPPORT REINFORCEMENT - Call your local BRP dealership

518323811

Unavailable

11

Brace, Black

518324080

Unavailable

12

ATTACHMENT BRACKET - Call your local BRP dealership

518323676

Unavailable

13

STEERING COLUMN SUPPORT - Call your local BRP dealership

518324046

Unavailable

14

Upper Cross Member

518324265

Unavailable

15

RH FRONT BRACE - Call your local BRP dealership

518324285

Unavailable

16

LH FRONT BRACE - Call your local BRP dealership

518324286

Unavailable

17

RH MEMBER - Call your local BRP dealership

518324182

Unavailable

18

LH Member

518324183

Unavailable

19

Pop Rivet 3/16"

390402200

$0.26

20

Pop Rivet 3/16"

390402400

Unavailable

20

Pop Rivet 3/16"

390402400

Unavailable

21

Avex Rivet

390909100

$0.29

22

Avex Rivet

390909200

Unavailable

23

RH SHOCK BRACKET - Call your local BRP dealership

518324148

Unavailable

24

LH Shock Bracket

518324150

Unavailable

25

HOSE SUPPORT - Call your local BRP dealership

518323584

Unavailable

26

Tie Rap Mount (screwable)

515176795

$5.11

27

Belt Guard Bracket

518202100

$16.12

28

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

29

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

30

RH TOE HOLD - Call your local BRP dealership

518323948

Unavailable

31

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

33

REAR BUMPER - Call your local BRP dealership | 151" Track

518324833

Unavailable

33

REAR BUMPER - Call your local BRP dealership | 162" Track

518324853

Unavailable

35

Hex. Screw M8 X 20

236282084

Unavailable

37

RH WIRE PROTECTOR - Call your local BRP dealership | 151" Track

518324940

Unavailable

37

RH WIRE PROTECTOR - Call your local BRP dealership | 162" Track

518324941

Unavailable

38

LH WIRE PROTECTOR - Call your local BRP dealership | 151" Track

518324942

Unavailable

38

LH WIRE PROTECTOR - Call your local BRP dealership | 162" Track

518324943

Unavailable

39

Hex. Flange Screw M8 X 40

207684044

Unavailable

40

HEX. FLANGED SCREW M8 X 140 - Call your local BRP dealership

230684044

Unavailable

41

SPACER - Call your local BRP dealership

518324048

Unavailable

42

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

43

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

44

Pan Head Torx Screw M8 X 12

250000887

$1.56

45

Hex. Flange Elastic Nut M8

233281414

Unavailable

46

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

47

Elastic Stop Nut M6

232561414

Unavailable

48

Hex. Flange Screw M8 X 50

207685044

Unavailable

49

Hex. Flange Screw M8 X 35

207683544

$1.39

50

Hex. Screw M8 X 25

207182544

Unavailable

51

Insert

293450275

Unavailable

52

Hex. Elastic Stop Nut M8

232581414

Unavailable

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

54

Hex. Flange Screw M6 X 20

207662044

Unavailable

55

Hex. Flange Screw M6 X 35

207663544

$0.74

56

Panel Fastener

518321954

Unavailable

57

RH FRONT FOAM - Call your local BRP dealership

518324372

Unavailable

58

LH FRONT FOAM - Call your local BRP dealership

518323007

$8.68

59

Hex. Screw M8 X 55

207085544

$1.62

60

Hex. Flange Elastic Nut M8

233281414

Unavailable

61

Flat Washer 8 mm

234081410

Unavailable

62

Footrest Extension

518324609

Unavailable

63

Hex. Flange Screw M6 X 16

207661644

Unavailable

64

FRONT PROTECTOR - Call your local BRP dealership

518324438

Unavailable

65

Pop Rivet 3/16" | DS 650 X

293150104

$1.49
