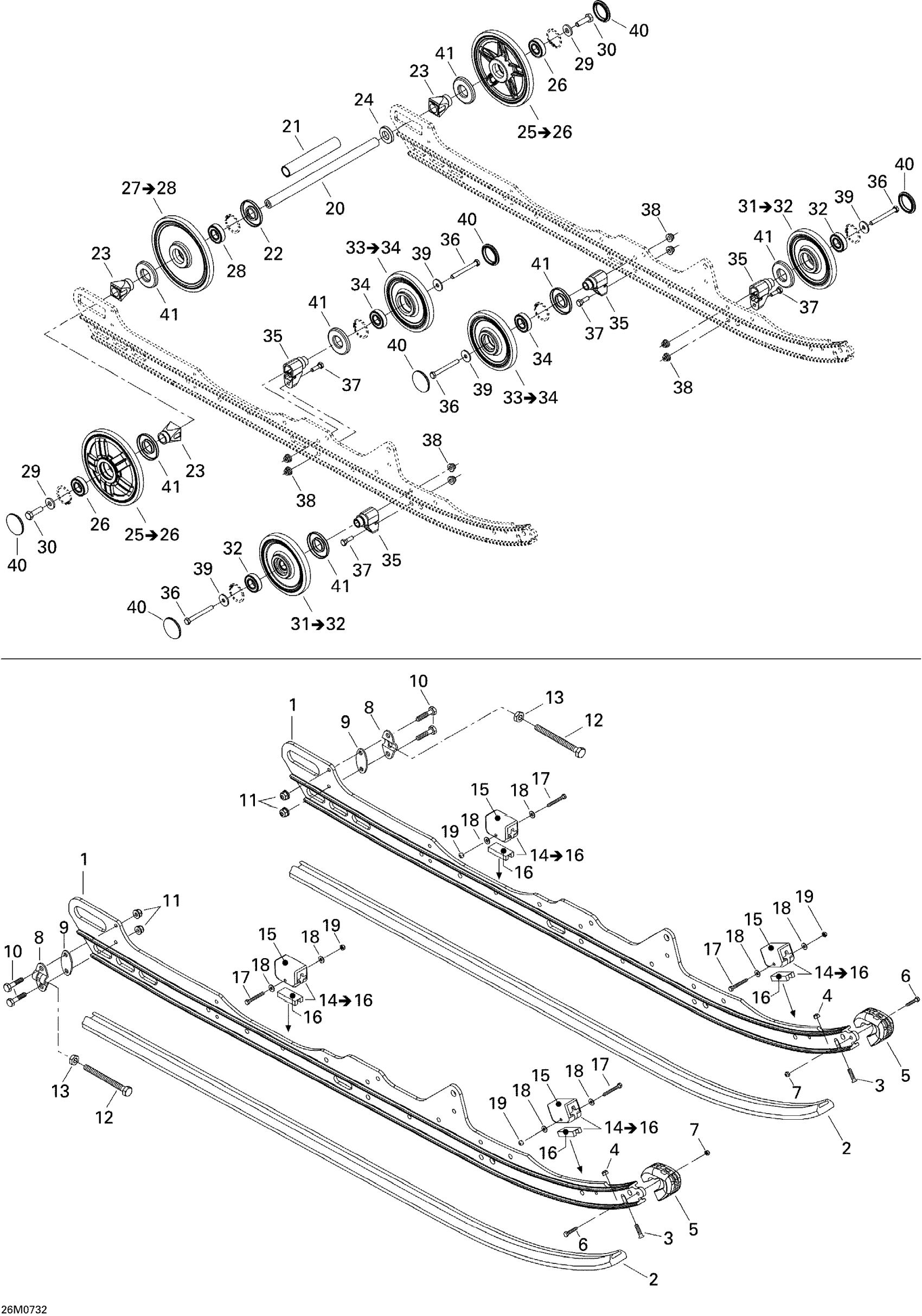

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Rear Suspension Diagram

#

Description
Price

1

RUNNER 162 - Call your local BRP dealership

503190818

Unavailable

1

RUNNER 151 - Call your local BRP dealership

503191050

Unavailable

2

Rail 151", Black

503190368

Unavailable

2

RAIL 151, YELLOW - Call your local BRP dealership

503190383

Unavailable

2

SHOE SLIDER 162, BLACK - Call your local BRP dealership

503190866

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

Hex. Flange Screw M5 X 25

207652544

Unavailable

7

Hex. Flange Elastic Nut M5

233251414

Unavailable

8

Tensioner

503155300

Unavailable

9

TENSIONER SPACER - Call your local BRP dealership

503189160

Unavailable

10

Hex. Screw M6 X 30

207063044

Unavailable

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

12

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

13

Elastic Locking Nut M10 X 1.5

233601416

$1.68

14

RUBBER STOPPER ASS'Y - Call your local BRP dealership

503190905

Unavailable

15

Rubber Stopper

570063000

Unavailable

16

Reinforcement Stopper

572084800

$5.25

17

HEX. SCREW M5 X 40 - Call your local BRP dealership

207054044

Unavailable

18

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

19

Elastic Stop Nut M5

232551414

Unavailable

20

Rear Axle

503190429

$59.97

21

Spacer

503196317

Unavailable

22

Labyrinth Seal

503190682

Unavailable

23

Rear Wheel Spacer

503190428

$6.06

24

Washer

503190432

Unavailable

25

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

Unavailable

26

Ball Bearing | Package-STD

503190396

Unavailable

27

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

Unavailable

28

Ball Bearing | Package-STD

503190396

Unavailable

29

Washer

503190439

$5.82

30

Hex. Screw With Nylon

250000019

Unavailable

31

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

32

Ball Bearing | Package-STD

503190396

Unavailable

33

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

34

Ball Bearing | Package-STD

503190396

Unavailable

35

Support

503190580

Unavailable

36

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

37

Hex. Screw M8 X 25

207182544

Unavailable

38

Hex. Flange Elastic Nut M8

233281414

Unavailable

39

Washer

211200041

Unavailable

40

Wheel Cap

570063600

Unavailable

41

Labyrinth Seal

503190434

Unavailable
