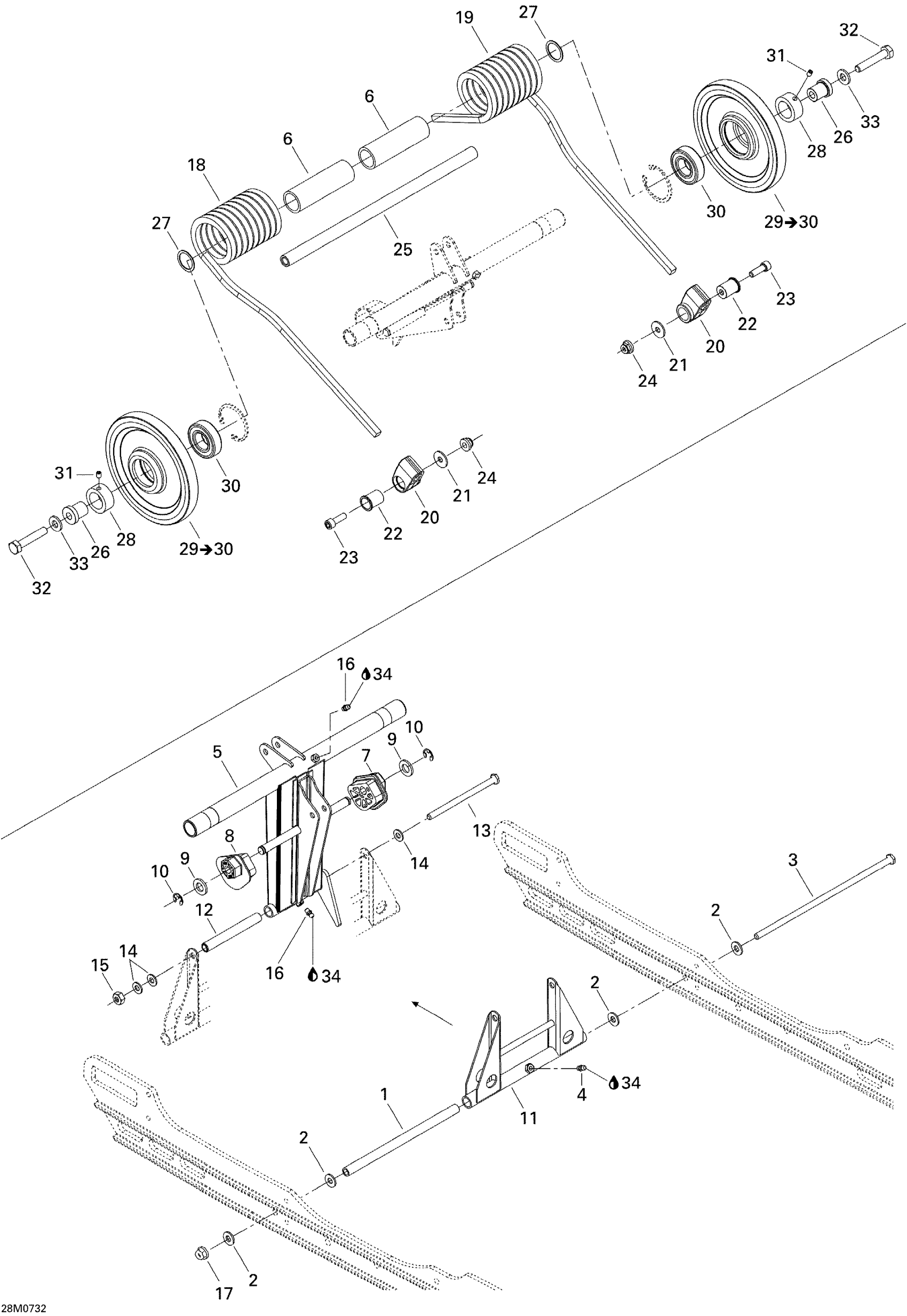

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Rear Arm Diagram

#

Description
Price

1

Pivot Arm Axle

503189156

$20.12

2

Washer

503189157

$3.10

3

Bolt M8 X 248mm

503192440

$29.07

4

Grease Fitting

408200700

$3.21

5

Rear Arm

503191057

Unavailable

6

BUSHING - Call your local BRP dealership

503190333

Unavailable

7

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

8

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

9

Washer | 7415/7416. 7417/7418.

503189148

$2.64

10

E-Circlip

293370013

$0.60

11

PIVOT ARM - Call your local BRP dealership

503191372

Unavailable

12

Upper Axle, Pivot Arm

503144300

$10.84

13

Bolt M8, Short

732601197

$14.61

14

Flat Washer 8 mm

234081410

$0.79

15

Hex. Elastic Stop Nut M8

232581414

$0.54

16

Grease Fitting

408200700

$3.21

17

Hex. Flange Elastic Nut M8

233281414

$1.31

18

RH SPRING, SQUARE - Call your local BRP dealership | Europe

503190773

Unavailable

19

LH SPRING, SQUARE - Call your local BRP dealership | Europe

503190775

Unavailable

20

SPRING SUPPORT - Call your local BRP dealership

503191539

Unavailable

21

Flat Washer 8 mm

234082410

$1.27

22

Spring Support Kit

861805547

$7.90

23

Socket Head Screw M8 X 25

205082544

$1.06

24

Hex. Flange Elastic Nut M8

233281414

$1.31

25

SHAFT - Call your local BRP dealership

503190387

Unavailable

26

BUSHING - Call your local BRP dealership

503190422

Unavailable

27

Washer

503190328

$11.00

28

Retaining Ring

503168800

$12.27

29

WHEEL 165 - Call your local BRP dealership | Includes 28 to 29

503191359

Unavailable

30

Ball Bearing

503193548

$16.39

31

Socket Set Screw M6 X 8

206260844

$1.43

32

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

33

Washer

732900049

$0.55

34

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
