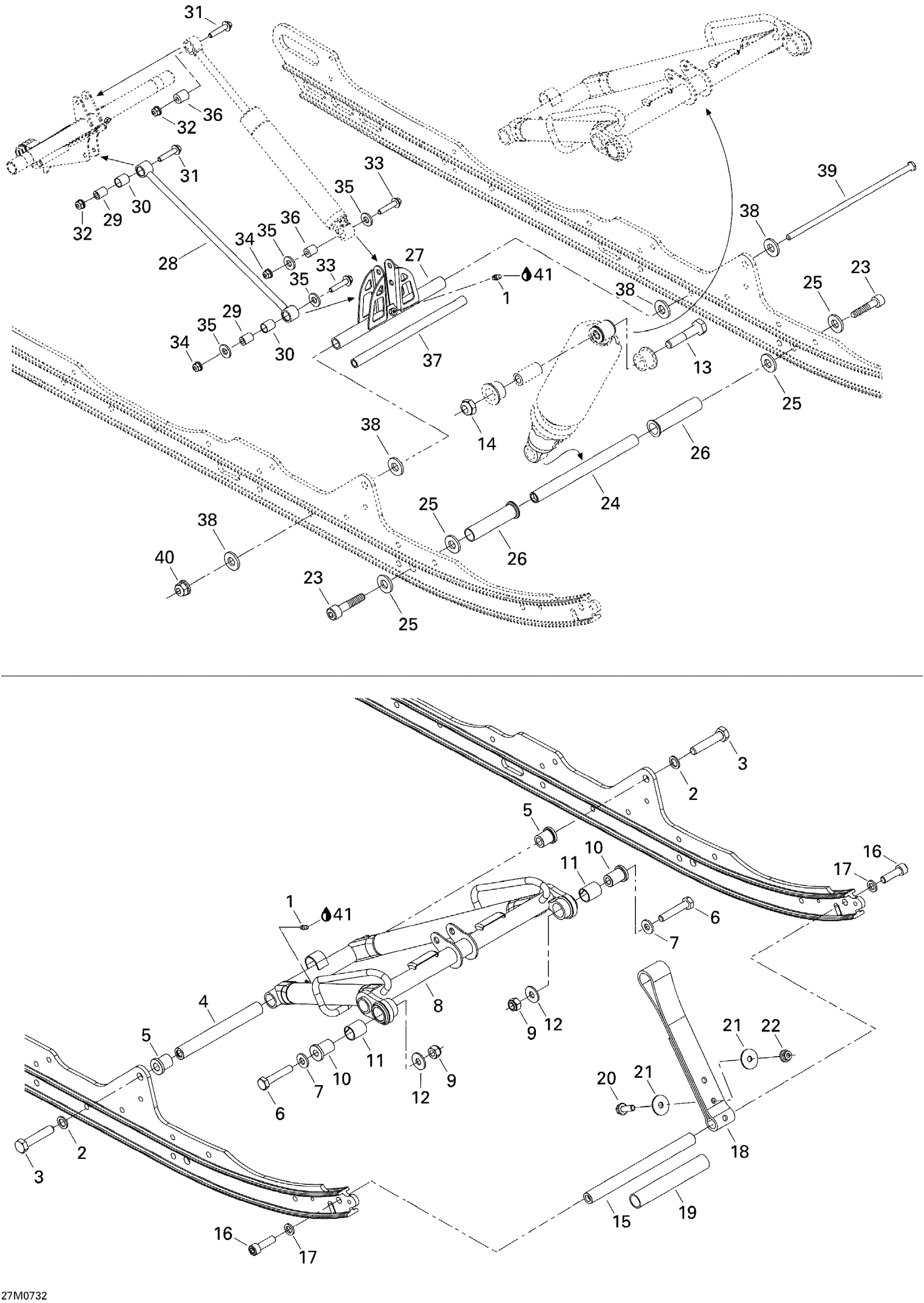

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Front Arm Diagram

#

Description
Price

1

Grease Fitting

408200700

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$1.85

7

Washer

732900049

Unavailable

8

FRONT ARM - Call your local BRP dealership

503191142

Unavailable

9

Elastic Locking Nut M10 X 1.5

233601416

$1.68

10

EXTENSION - Call your local BRP dealership

503190373

Unavailable

11

EXTENDED BUSHING - Call your local BRP dealership

503190474

Unavailable

12

Flat Washer M10 | 4X4

250200014

$1.17

13

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

14

Elastic Stop Nut M10

232500416

$1.56

15

Axle Strap

503191260

Unavailable

16

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

17

Washer

503189564

Unavailable

18

Stopper Strap

503192360

Unavailable

19

Spacer

503191448

Unavailable

20

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

21

Flat Washer

224081301

$0.86

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

24

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

25

Washer

503189276

Unavailable

26

Center Bushing

503191259

Unavailable

27

PIVOT ARM, BLACK - Call your local BRP dealership

503189545

Unavailable

28

THROTTLE ROD - Call your local BRP dealership

503189547

Unavailable

29

BUSHING - Call your local BRP dealership

503189133

Unavailable

30

CUSHION - Call your local BRP dealership

503189625

Unavailable

31

Hex. Flange Screw M8 X 40

207684044

Unavailable

32

Elastic Flange Nut M8

250100025

Unavailable

33

Hex. Screw M8 X 40

207084044

Unavailable

34

Hex. Elastic Stop Nut M8

232581414

Unavailable

35

WASHER - Call your local BRP dealership

503191564

Unavailable

36

Bushing

414936000

Unavailable

37

Pivot Arm Axle

503189156

Unavailable

38

Washer

503189157

$3.20

39

Bolt M8 X 248mm

503192440

Unavailable

40

Elastic Flange Nut M8

250100025

Unavailable

41

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
