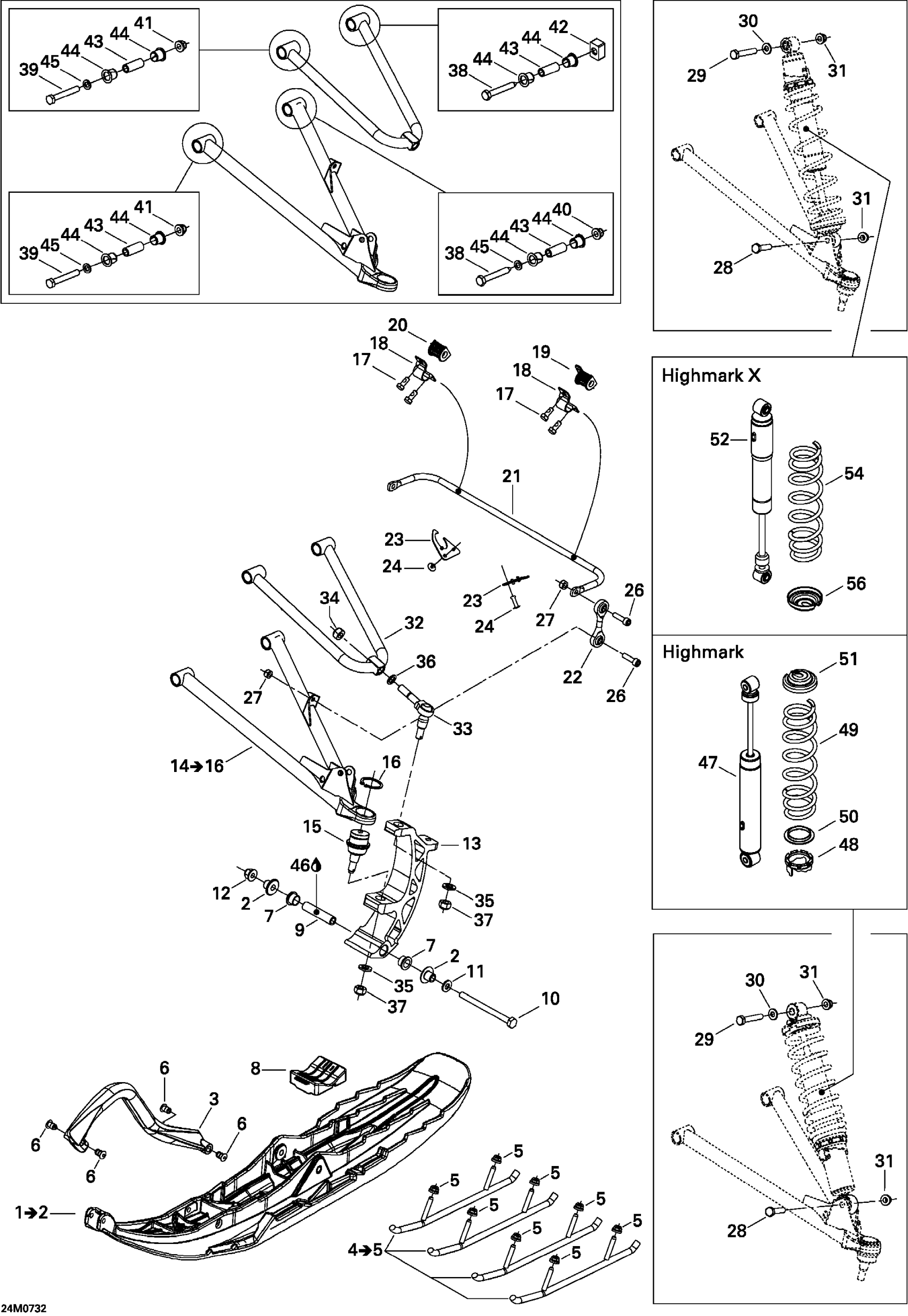

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

Unavailable

1

Black Pilot Ski Ass'y 6.9 LH

505073055

Unavailable

2

Ski Bushing

505071781

Unavailable

3

Black, Handle

505070963

Unavailable

3

Black, Handle

505070963

Unavailable

4

Square Carbide Runner Kit | Includes 5 to 6

860511800

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

Unavailable

6

Retainer 17mm long

505071812

$4.43

7

Leg Bushing

505072690

Unavailable

8

Ski Stopper

505071779

$16.12

9

BUSHING - Call your local BRP dealership

505071271

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

11

Washer

732900049

Unavailable

12

Flange Nut M10

732610084

Unavailable

13

SKI LEG - Call your local BRP dealership

505071248

Unavailable

13a

SPACER - Call your local BRP dealership

505071215

Unavailable

14

RH LOWER ARM - Call your local BRP dealership

505071742

Unavailable

14

LH Lower Arm

505071745

Unavailable

15

Ball Joint

505073636

$49.97

16

Circlip

293370035

$2.55

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

20

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

21

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

22

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

Unavailable

26

Socket Head Screw M8 X 30

205083044

Unavailable

27

Hex. Elastic Stop Nut M8

232581414

Unavailable

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Washer

503189564

Unavailable

31

Hex. Flange Elastic Nut M10

233201414

$1.26

32

RH UPPER ARM - Call your local BRP dealership

505071857

Unavailable

32

LH UPPER ARM - Call your local BRP dealership

505071859

Unavailable

33

BALL JOINT - Call your local BRP dealership

505072050

Unavailable

34

Hex. Elastic Hex. Nut M12

250100089

$0.39

35

Flat Washer 12 mm

234021410

$0.68

36

Washer

503189276

Unavailable

37

Hex. Elastic Hex. Nut M12

250100089

$0.39

38

Hex. Screw M10 X 75

250001063

Unavailable

39

Hex. Screw M10 X 75

250001063

Unavailable

40

Hex. Flange Elastic Nut M10

250100165

Unavailable

41

Hex. Flange Elastic Nut M10

250100165

Unavailable

42

RECTANGULAR NUT - Call your local BRP dealership

505071695

Unavailable

43

Aluminium Bushing

505070960

Unavailable

44

Arm Bushing

505070566

Unavailable

45

Washer

503189564

Unavailable

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

FRONT SHOCK - Call your local BRP dealership

505071455

Unavailable

48

Adjustment Cam

505073625

Unavailable

49

FULL MOON SPRING - Call your local BRP dealership

505071849

Unavailable

50

Spring Guide

503191872

Unavailable

51

Spring Stopper

706200881

$10.30

52

Front Shock | Includes 34 to 36, Europe

505071457

Unavailable

54

SPRING - Call your local BRP dealership | Highmark X

505071840

Unavailable

56

Spring Stopper

706200881

$10.30
