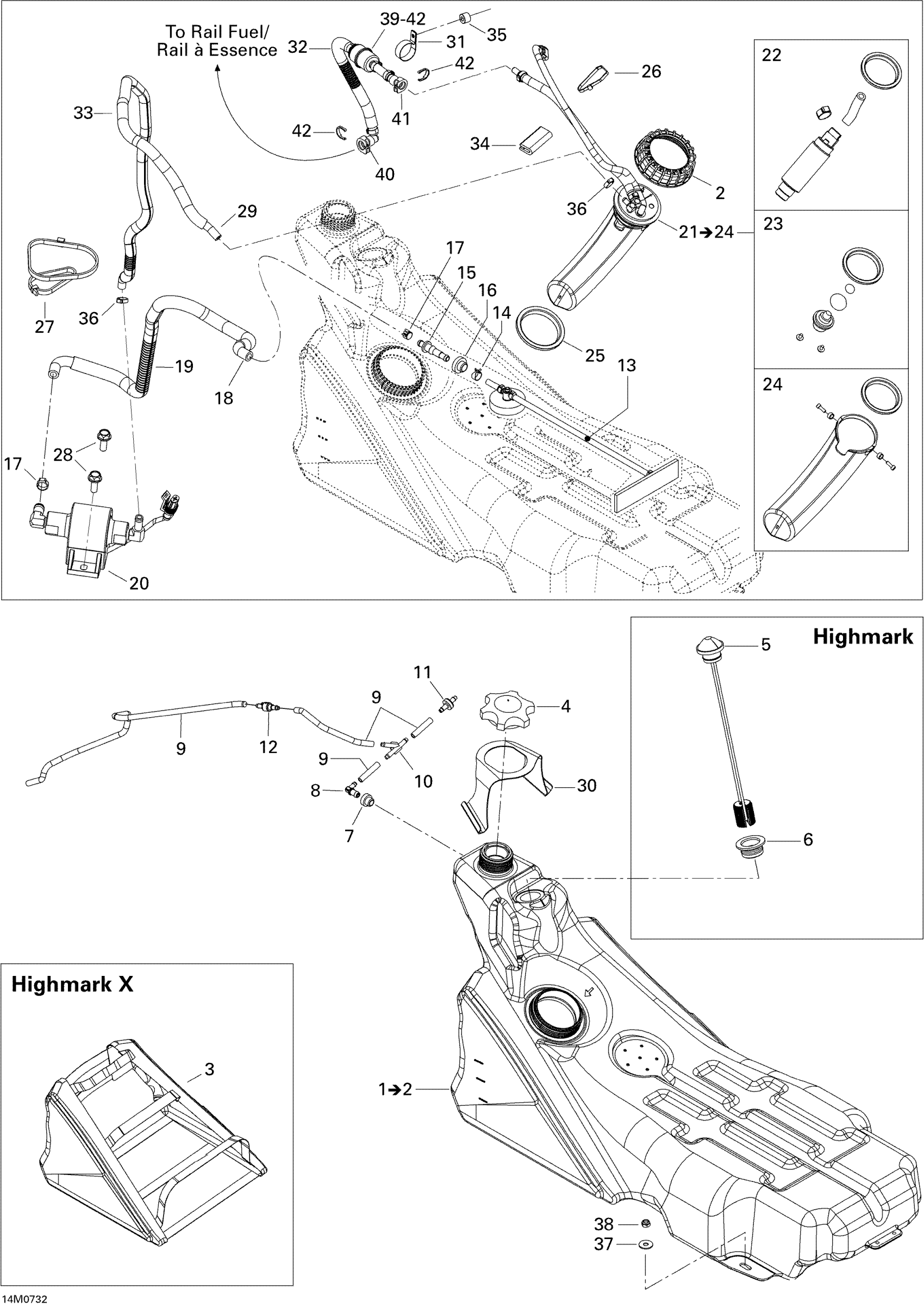

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Fuel System Diagram

#

Description
Price

1

Fuel Tank | Includes 1 to 1, HMX

513033147

Unavailable

1

Fuel Tank, Black | Includes 1 to 2

513033085

Unavailable

2

Nut, Fuel Pump Module

513033040

$27.66

3

TANK COVER, BLACK - Call your local BRP dealership

513033075

Unavailable

4

Fuel Tank Cap 91 Octane

513033722

$23.05

5

Fuel Gauge | HM

513033095

Unavailable

6

Grommet

293720058

$11.00

7

Grommet

513032908

$8.74

8

Male Connector

414580700

Unavailable

9

Polyurethane Hose 10000Mm Long

219704410

Unavailable

9

Polyurethane Hose 10000Mm Long

219704410

Unavailable

9

Polyurethane Hose 10000Mm Long

219704410

Unavailable

9

Polyurethane Hose 10000Mm Long

219704410

Unavailable

10

Y-Fitting

293710059

Unavailable

11

Check Valve

275500398

Unavailable

12

Check Valve

275500505

Unavailable

13

FUEL HOSE ASS. - Call your local BRP dealership

513033172

Unavailable

14

Norma Spring Clamp

513033010

Unavailable

15

Male Connector

414872700

Unavailable

16

Grommet | Europe

707800347

Unavailable

17

Crimp Clamp

293650053

Unavailable

18

Hose

513033148

Unavailable

19

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

20

FUEL PUMP - Call your local BRP dealership

513033328

Unavailable

21

FUEL PUMP MODULE - Call your local BRP dealership | Includes 25 to 27

513033120

$479.20

22

PUMP KIT - Call your local BRP dealership

861302700

Unavailable

23

REGULATOR KIT - Call your local BRP dealership

861302100

Unavailable

24

Réservoir Kit

861302800

Unavailable

25

SEAL - Call your local BRP dealership

513033039

Unavailable

26

Tie-Rap 180 mm

414115200

$0.09

27

Tie Wrap 368 mm

293750008

$0.85

28

Hex. Flange Screw M6 X 16

210261650

$1.22

29

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

30

SUPPORT - Call your local BRP dealership

513033066

$11.98

31

Open Clamp

513033047

$4.88

32

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

33

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

34

Was 271000110 Protection Trim

219704353

Unavailable

35

SPACER - Call your local BRP dealership

503189448

Unavailable

36

Crimp Clamp, 15.3-706R

293650047

Unavailable

37

Flat Washer 8 mm

234082410

$1.11

38

Hex. Elastic Stop Nut M8

232581414

Unavailable

39

Fuel Filter Ass'y | Includes 44 to 47

513033133

$87.66

40

Quick Fitting 90° Ass'y

415128965

Unavailable

41

Female Quick Fitting Ass'y

709000125

Unavailable

42

Locking Clip

513033135

$5.11
