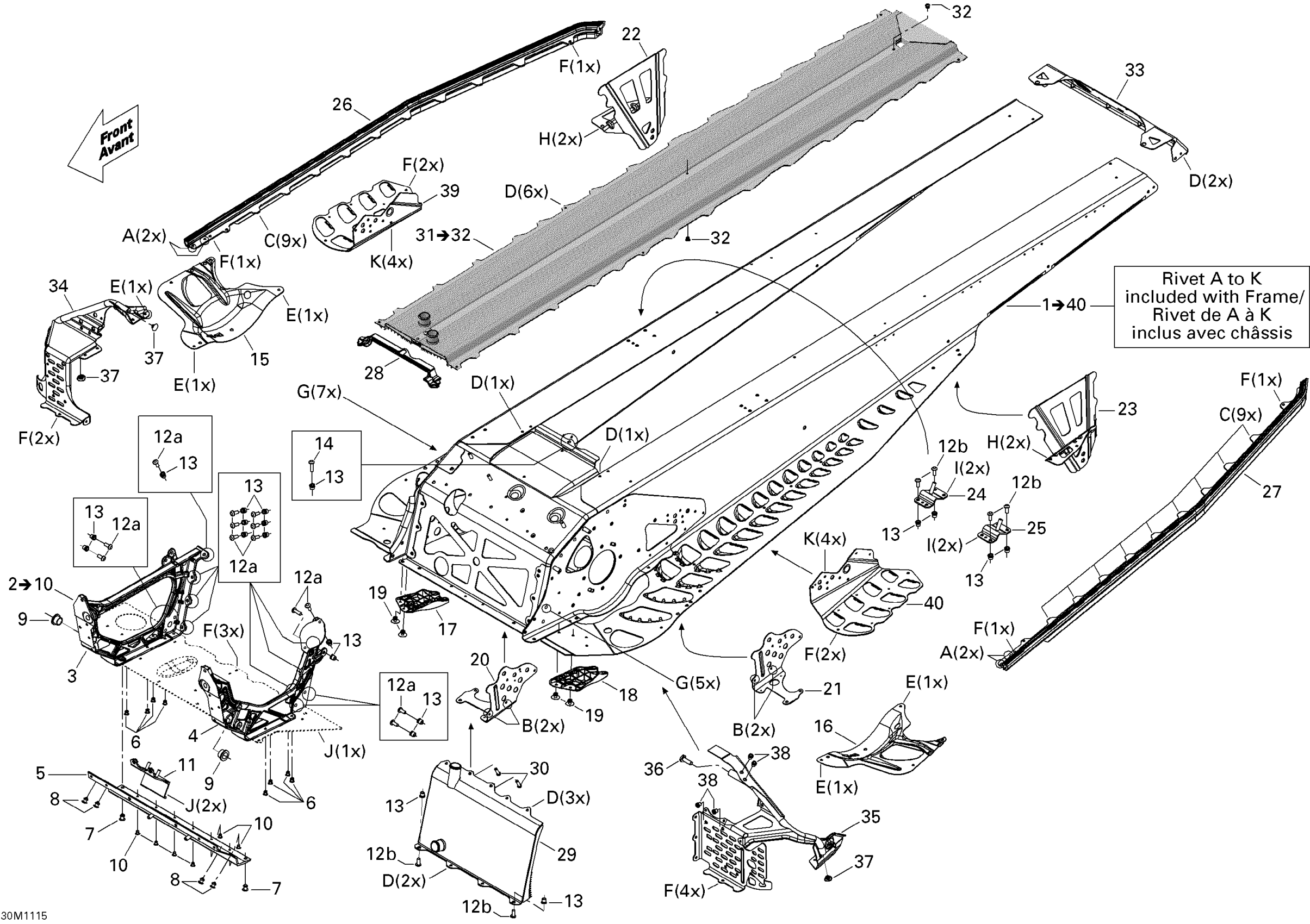

Ski-Doo Summit FREERIDE 800R E-TEC, 2011 Frame Diagram

#

Description
Price

1

FRAME FREERIDE 154'' RACING - Call your local BRP dealership

415129638

Unavailable

2

E Module | Includes 10n to 10at

518327567

Unavailable

3

RH Member

518326795

Unavailable

4

LH Member

518326796

$210.74

5

Front Member

518326198

$59.97

6

Stavex Rivet

293150144

Unavailable

7

Hemlock Rivet 6.5 mm

293150120

$7.23

8

Hemlock Rivet, 6.5 mm

293150119

$4.00

9

Leg Bushing

505072690

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

12a

Hex. Flange Screw M6 X 20

207662044

Unavailable

12b

Hex. Flange Screw M6 X 16

207661644

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Hex. Flange Screw M6 X 20

207662044

Unavailable

15

RH Reinforcement

518324874

Unavailable

16

LH Reinforcement

518324875

Unavailable

17

RH Deflector, Black Polypropylene

518325782

Unavailable

18

LH Deflector, Black Polypropylene

518325783

Unavailable

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

20

RH Front Suspension Retainer | Package Iron Dog

518326616

$39.97

21

LH Front Suspension Retainer | Package Iron Dog

518326617

$39.97

22

RH REAR RETAINER - Call your local BRP dealership

518326621

Unavailable

23

LH REAR RETAINER - Call your local BRP dealership

518326622

Unavailable

24

RH Rear Base

518325973

Unavailable

25

LH Rear Base | Includes 10v to 10x

518325974

Unavailable

26

RH ROLLER - Call your local BRP dealership

518326601

Unavailable

27

LH Roller

518326602

Unavailable

28

Seal

518326656

Unavailable

29

Front Radiator | Includes 10b to 10b2

518326485

Unavailable

30

Clinch Stud M6 X 20

250300027

$1.92

31

Rear Radiator Ass'y, 154" | Includes 10bm to 10bn

518326692

$699.97

32

Stavex Rivet

293150144

Unavailable

33

Rear Cap

518327105

Unavailable

34

RH Stirup | Includes 10aa to 10ab

518328938

Unavailable

35

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

36

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

37

Full Moon Dart 5 mm

293730042

Unavailable

38

Insert M5 X 0.8

293450268

Unavailable

39

CHASSIS KIT - Call your local BRP dealership | Includes 1470a to 1470e This part replaces 860200522.

860200813

Unavailable

40

CHASSIS KIT - Call your local BRP dealership | Includes 1470a to 1470e This part replaces 860200522.

860200813

Unavailable

A

Pop Rivet 3/16”

390407200

$0.66

B

Avex Rivet

390909100

$0.29

C

Not Available As Spare Part - Friction Washer

Unavailable

D

Avex Rivet

390909200

Unavailable

E

Avex Rivet

390909100

$0.29

F

Stavex Rivet

293150144

Unavailable

G

Henrob Rivet

293150146

Unavailable

H

Hemlock Rivet, 6.5 mm

293150096

$3.17

I

Hemlock Rivet, 6.5 mm

293150119

$4.00

J

Hemlock Rivet, 6.4 mm

293150174

$6.43

K

Monobolt Rivet, 4.8 mm

293150191

Unavailable
