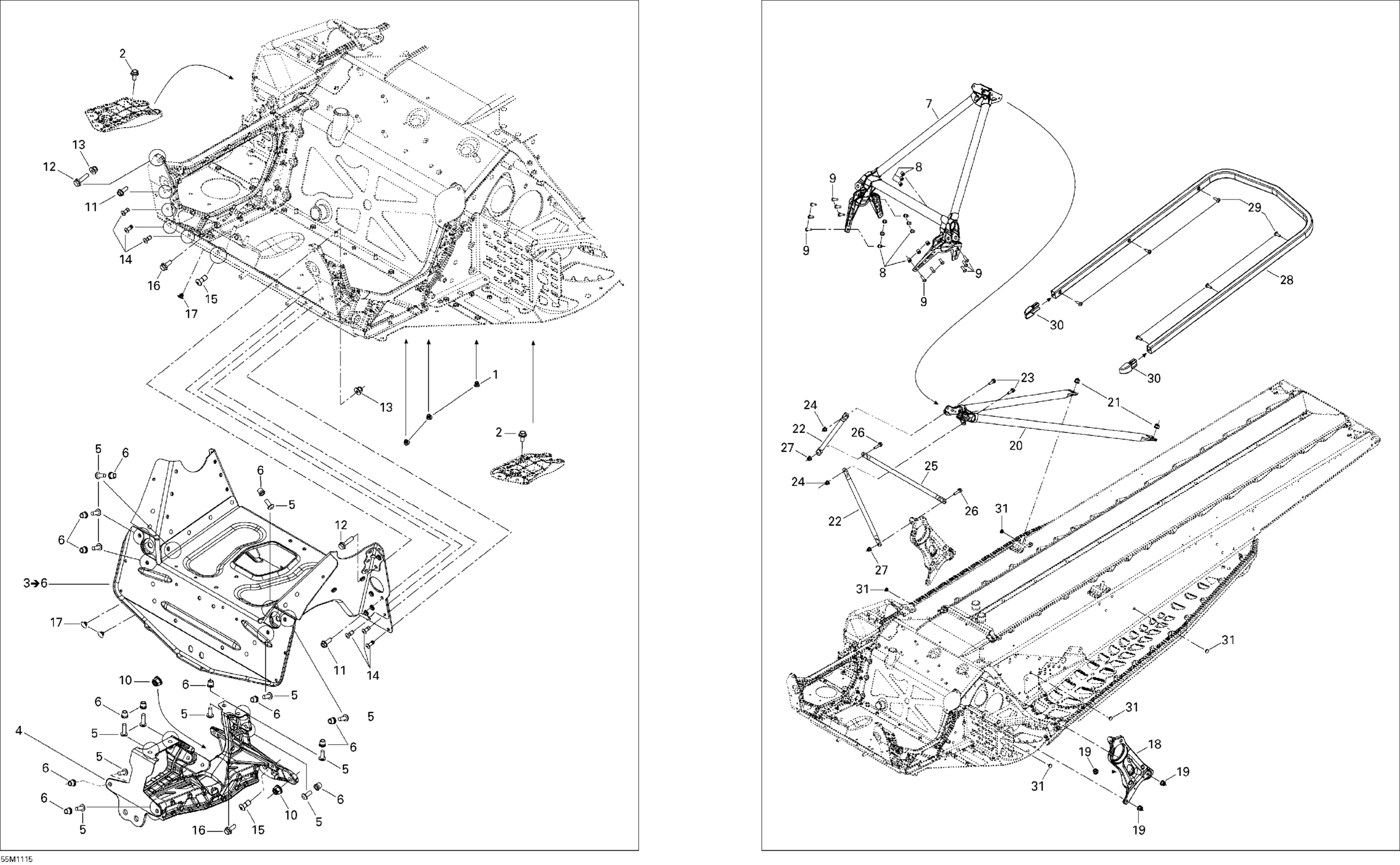

Ski-Doo Summit FREERIDE 800R E-TEC, 2011 Frame and Components Diagram

#

Description
Price

1

Pop Rivet 3/16"

390402400

Unavailable

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

3

Cross Member S Module | Package Iron Dog

518328322

$439.20

4

Front Suspension Support

518327487

Unavailable

5

Hex. Flange Screw M6 X 20

207662044

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

7

Front Member

518327565

$316.12

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Hex. Flange Screw M6 X 20

207662044

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

Hex. Flange Screw M6 X 16

210261650

$1.22

12

Hex. Flange Screw M6 X 25

207662544

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Monobolt Rivet, 4.8 mm

293150191

Unavailable

15

Monobolt Rivet 6.4

293150182

$2.91

16

Hex. Flange Screw M6 X 16

207661644

Unavailable

17

Full Moon Dart 5 mm

293730042

Unavailable

18

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

19

Hex. Flange Elastic Nut M8

233281414

Unavailable

20

Rear Member

518326559

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

Unavailable

22

Upper Lateral Column Support

518325114

Unavailable

23

Hex. Flange Screw M6 X 20

207662044

Unavailable

24

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

25

Center Column Support

518325115

Unavailable

26

Hex. Flange Screw M6 X 25

207662544

Unavailable

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

28

Black Rear Bumper, 154" | Vehicle 154" North America

518326049

$111.51

29

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

Unavailable

30

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$7.68

31

DART 8 MM, WHITE - Call your local BRP dealership | Package Burton

293730054

Unavailable
