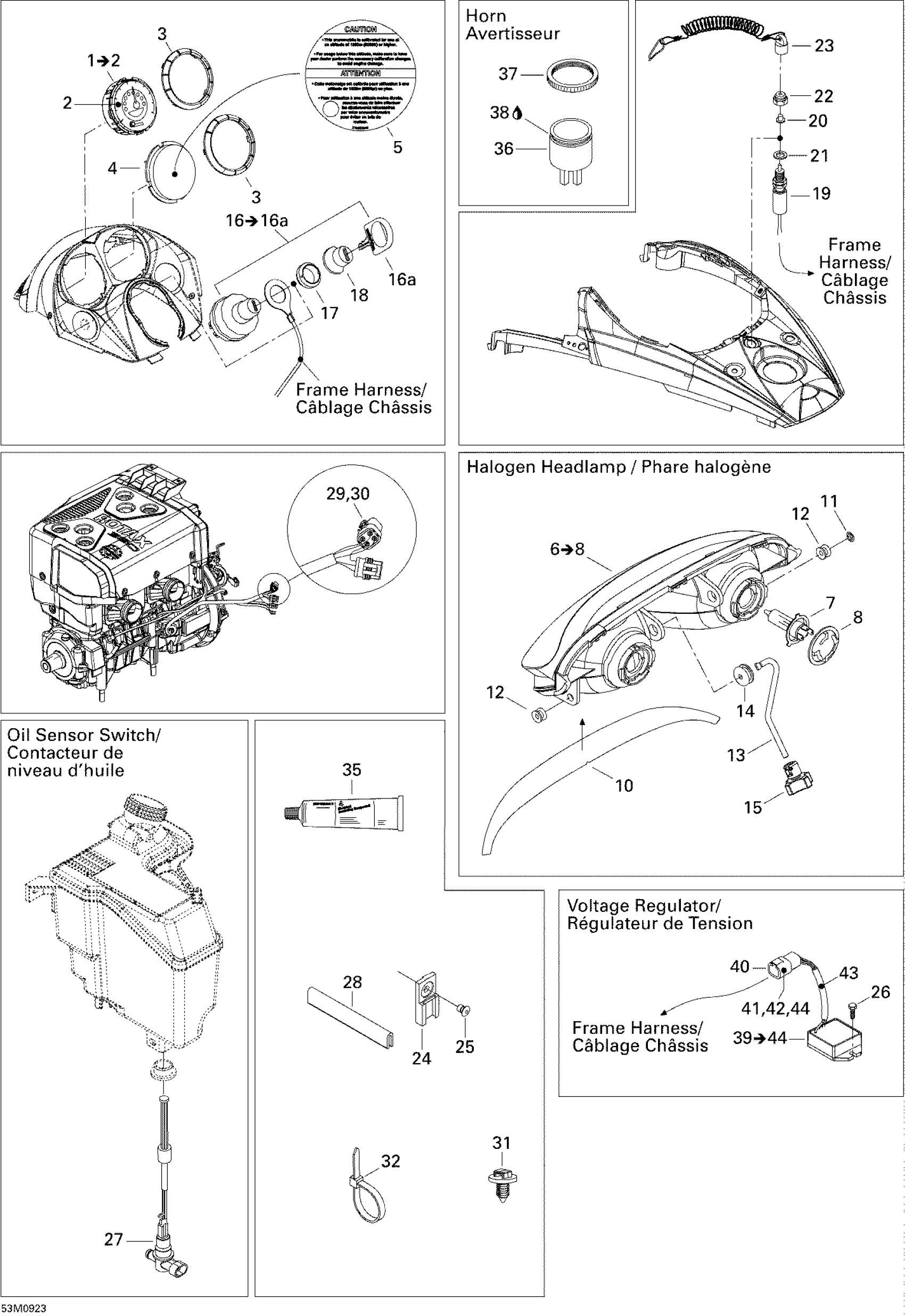

Ski-Doo Summit Fan, 2009 Electrical Accessories Diagram

#

Description
Price

1

SPEEDOMETER - Call your local BRP dealership | Includes 1 to 1a

515176476

Unavailable

2

LENS - Call your local BRP dealership

415129319

Unavailable

3

Gauge Ring This part replaces 515176242.

515179005

Unavailable

4

GAUGE HOLE COVER - Call your local BRP dealership

515175901

Unavailable

5

Altitude Decal

516003040

Unavailable

6

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

Unavailable

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

Unavailable

8

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

10

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

11

Push Nut

732610072

Unavailable

12

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

13

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

14

Grommet - Call your local BRP dealership

415100800

Unavailable

15

HANDLE - Call your local BRP dealership

515175975

Unavailable

16

IGNITION SWITCH - Call your local BRP dealership

515176548

Unavailable

16a

Blank Key

415129350

Unavailable

17

FACE NUT - Call your local BRP dealership

410112100

$14.29

18

Switch Boot

570013700

Unavailable

19

Brake Switch

515175653

$15.57

20

Plunger Cap

570151100

$10.14

21

WASHER - Call your local BRP dealership

503183500

$1.40

22

Switch Nut

515145900

$10.83

23

Cap Ass'y

515178283

$37.66

24

Clip

270000141

$8.33

25

Avdel Rivet 3/16"

293150037

$0.47

26

Hex. Flange Screw M6 X 12

210261250

$1.56

27

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

28

TRIM - Call your local BRP dealership

509000263

Unavailable

29

Female Terminal Housing, 4 Circuits

278001473

Unavailable

30

Female Lock, 4 Circuits

278001474

Unavailable

31

Mount Dart

293730040

$0.86

32

Tie-Rap 180 mm

414115200

$0.09

32

Tie Wrap 142 mm

293750002

Unavailable

32

Tie-Rap 173 mm

293750009

Unavailable

32

Tie Wrap 368 mm

293750008

$0.85

35

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

36

HORN - Call your local BRP dealership

515176035

Unavailable

37

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

38

Silicone Sealant 51388, 300 ml

296000309

Unavailable

39

Voltage Regulator | Manual Start, Includes 39 to 44

515176188

Unavailable

40

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

41

Male Terminal

515175568

$7.48

42

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

43

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

44

Sealing Cap

293000052

Unavailable
