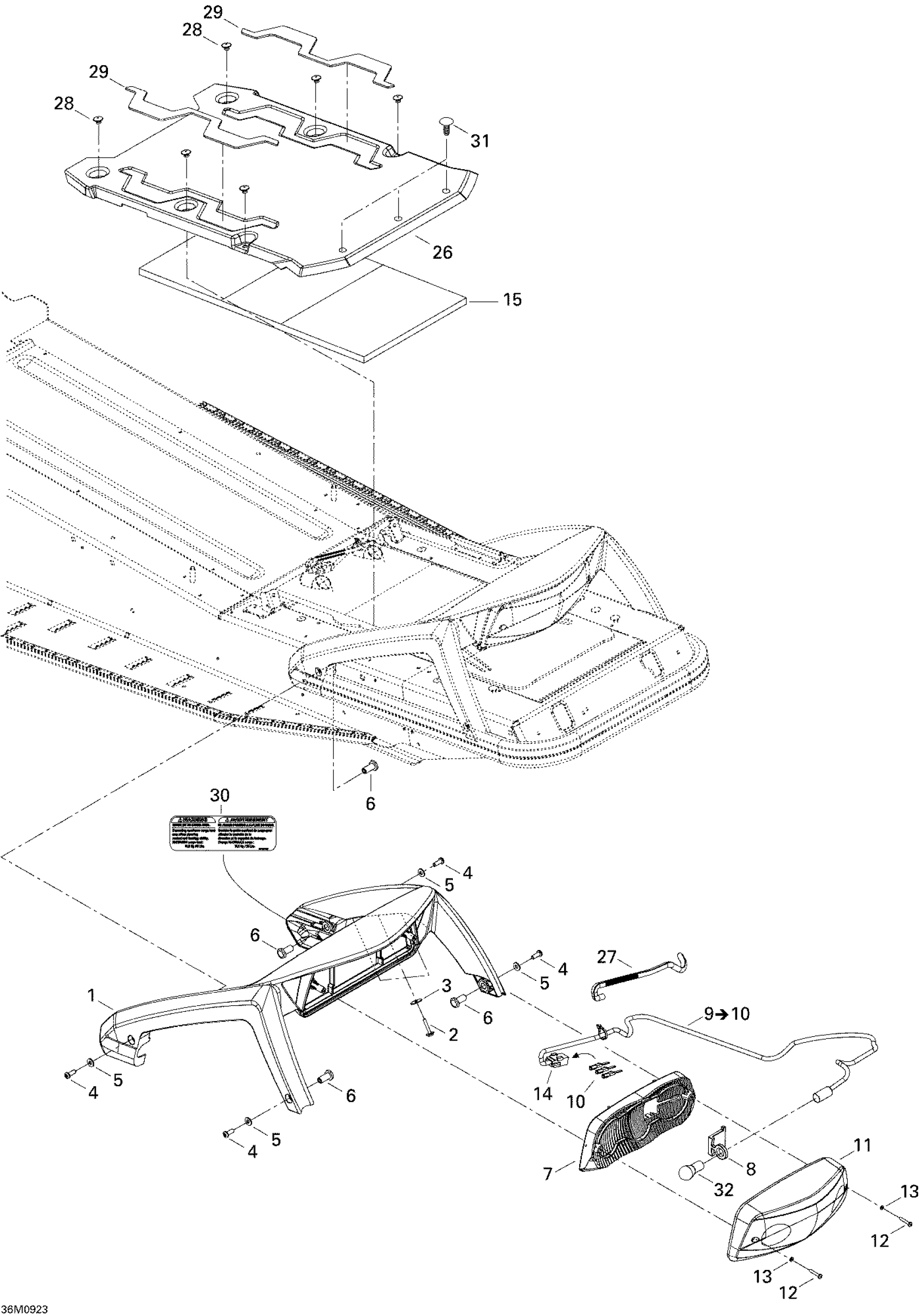

Ski-Doo Summit Fan, 2009 Luggage Rack Diagram
#
Description
Price
1
Luggage Rack
511000425
Unavailable
2
Self Tapping Screw #8 X 5/8
250000202
Unavailable
4
Torx Screw M6 X 20
250000722
Unavailable
5
Flat Washer
250200039
Unavailable
6
INSERT - Call your local BRP dealership
511000398
Unavailable
7
REFLECTOR - Call your local BRP dealership
510004442
Unavailable
8
BULB SUPPORT - Call your local BRP dealership
511000431
Unavailable
9
BULB SOCKET - Call your local BRP dealership | Includes 9 to 10
511000466
Unavailable
11
Lens
511000315
Unavailable
12
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership
209632580
Unavailable
13
Washer - Call your local BRP dealership
414516400
Unavailable
15
RADIATOR COVER SHIM - Call your local BRP dealership
511000364
Unavailable
26
RADIATOR COVER - Call your local BRP dealership
511000436
Unavailable
28
Pop Rivet 3/16"
293150103
Unavailable
29
Carpet
511000396
Unavailable
30
WARNING DECAL, MAXIMUM CARGO LOAD - Call your local BRP dealership
516002960
Unavailable
31
Black, Dart
293730006
Unavailable
