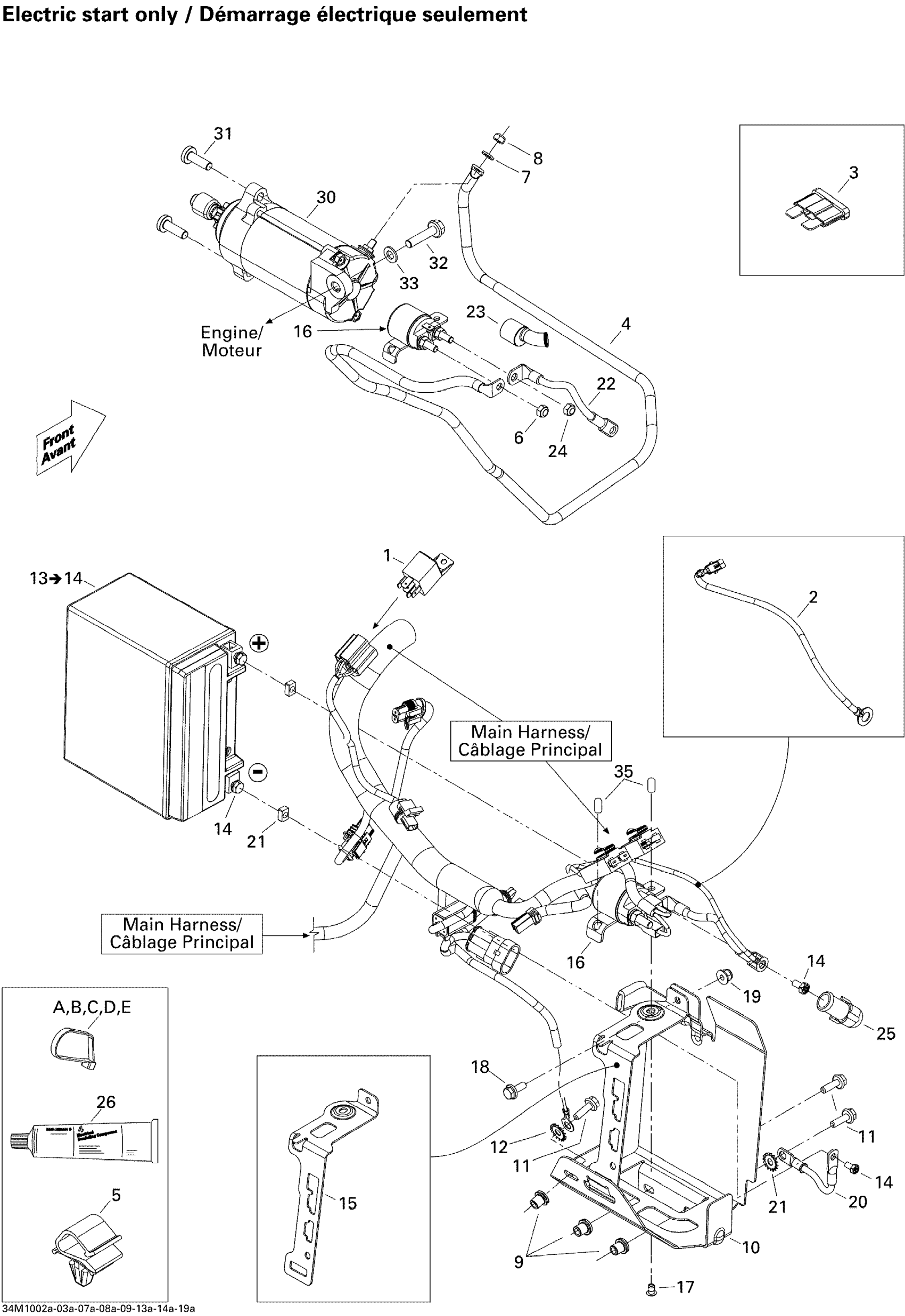

Ski-Doo Summit Everest 600HO ETEC, 2010 Battery And Starter 600HO ETEC Diagram

#

Description
Price

1

Relay | DS 650 X

710010053

Unavailable

2

Fuse Battery Wire

515176744

$11.94

3

Fuse, 30 Amperes

410917200

$3.22

4

BATTERY WIRE - Call your local BRP dealership

515177067

Unavailable

5

Tie Rap Mount (screwable)

515176795

$5.11

6

Elastic Stop Nut M6

232561414

$1.55

7

Flat Washer 6 mm

234061410

$1.04

8

Elastic Stop Nut M6

232561414

$1.55

9

Insert

293450275

$9.89

10

BATTERY SUPPORT ASS'Y - Call your local BRP dealership

515176886

Unavailable

11

Hex. Flange Screw M6 X 20

207662044

$1.66

12

Lock Washer Serrated M6

250200041

$0.92

13

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

14

Battery Bolt Kit

250000282

$2.95

15

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

16

Starter Relay

515176501

$93.82

17

Pop Rivet 3/16"

390402200

$0.26

18

Hex. Flange Screw M6 X 16

207661644

$0.61

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

Ground Wire

515176358

$26.12

21

Lock Washer Serrated M6

250200041

$0.92

22

BATTERY WIRE - Call your local BRP dealership

515176556

Unavailable

23

Protector Cap | XT

515175919

$16.89

24

Elastic Stop Nut M6

232561414

$1.55

25

Protector Cap

710000495

$10.14

26

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

30

Starter

515178473

$319.49

31

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

32

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

33

Flat Washer With Teflon 8 mm

250200008

$3.12

35

Cap

515176141

$2.91

A

Tie-Rap 180 mm

414115200

$0.09

B

Tie Wrap 142 mm

293750002

$0.88

C

Tie Wrap 368 mm

293750008

$0.85

D

Tie Wrap 94 mm | 4X4

293750001

$0.83

E

Tie-Rap 173 mm

293750009

$0.85
