Description

Price

1

TRUE BLUE HOOD - Call your local BRP dealership

517304402

Unavailable

2

Hood Foam

517304913

$22.49

3

True Blue Console | 600HO ETEC

517304503

$219.99

4

Console Nut

517304518

$15.99

5

Torx Screw M6 X 20

250000722

$1.69

6

Panel Nut M6 X 1.0

250100198

$2.19

7

Torx Truss Screw M6 X 16

250000721

$1.69

8

Torx Screw M6 X 20

250000722

$1.69

9

Panel Nut M6 X 1.0

250100198

$2.19

10

Black, RH Console | Includes 400 to 400b

517304322

$36.99

11

Black, Cap

275500241

$3.59

12

Loctite, Black Max, 3 ml

413408300

$26.99

13

Screw M4 X 16

250000725

$3.59

14

Gauge Support

517304575

$70.99

15

Torx Screw M6 X 20

250000722

$1.69

16

Panel Nut M6 X 1.0

250100198

$2.19

17a

Windsheld Kit 375

860200478

$174.99

17b

Windsheld 375mm | Deep Black

517304395

$148.99

17c

Windshield Support

517303607

$35.99

17d

Push Nut

732610072

$2.29

17e

RH Air Deflector

517303604

$44.99

17f

LH Air Deflector

517303605

$44.99

17g

Torx Screw K50 X 16

250000720

$1.69

17h

Washer M5

250200025

$1.49

17j

Rubber Washer 5 mm

250200024

$2.29

21

Grommet

517303756

$4.09

22

Deep Black, RH Panel

517304029

$219.99

22

PANEL_BODY RH B-160 - Call your local BRP dealership | Electric Start Models

517304210

Unavailable

23

Deep Black RH Moulding Panel

517303671

$29.99

24a

Grille

517303622

$31.99

24b

Push Nut

732610072

$2.29

25

Hex. Flange Screw K40 X 16

241141660

$1.49

26

Flat Washer 4 mm, Stainless

234042600

$1.49

27

RH Center Foam

517304883

$44.99

28

RH Panel Rear Foam

517304884

$19.99

29

Adhesive Patch

518325560

$4.69

30

Deep Black, LH Panel

517304030

$219.99

31

Deep Black, LH Moulding Panel

517303673

$29.99

32

Hex. Flange Screw K40 X 16

241141660

$1.49

33

Flat Washer 4 mm, Stainless

234042600

$1.49

34

LH Panel Center Foam

517304887

$28.99

35

LH Panel Lower Foam

517304888

$22.49

36

LH Panel Upper Foam

517304889

$21.99

37

LH Panel Rear Foam

517304890

$18.49

38

Foam

517304891

$21.99

39

End Piece Latch

517304075

$4.79

40

Panel Latch

517303981

$12.99

41

RH Panel Latch

517303612

$10.99

42

Latch Support

517304221

$9.39

43

Hex.Flange Screw M5 X 20

207652044

$1.99

44

Hex. Flange Elastic Nut M5

233251414

$1.91

45

LH Panel Latch

517303808

$11.99

46

Pop Rivet 3/16”

293150108

$1.49

47

Console Decal

517304105

$14.49

48

RH Decal

517304103

$19.99

49

LH Decal

517304104

$19.99

50

Not Available As Spare Parts

XXX

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

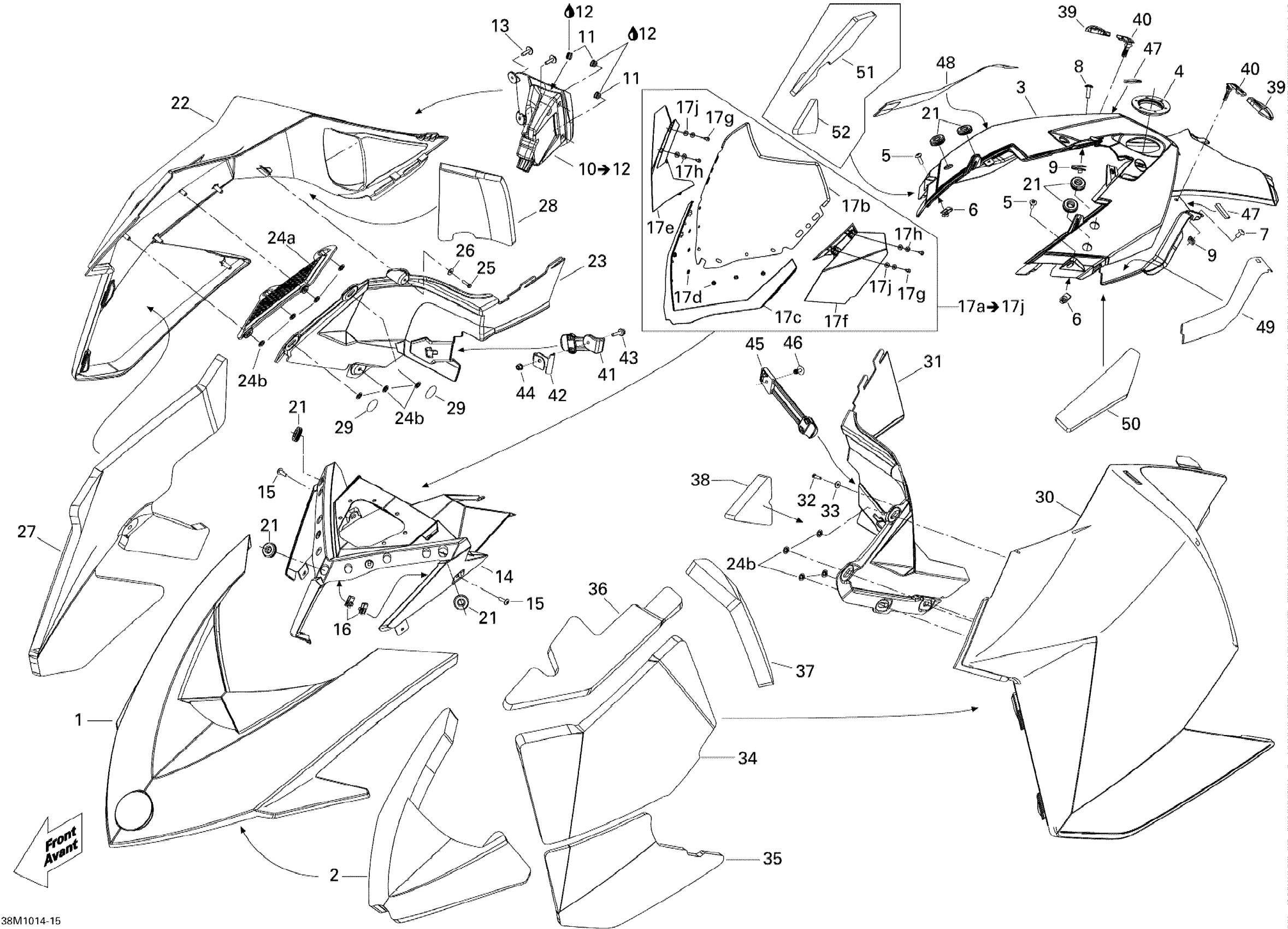

Ski-Doo Summit Everest 600HO ETEC, 2010 Hood 600HO ETEC Diagram

TRUE BLUE HOOD - Call your local BRP dealership

Hood Foam

True Blue Console | 600HO ETEC

Console Nut

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Black, RH Console | Includes 400 to 400b

Black, Cap

Loctite, Black Max, 3 ml

Screw M4 X 16

Gauge Support

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Windsheld Kit 375

Windsheld 375mm | Deep Black

Windshield Support

Push Nut

RH Air Deflector

LH Air Deflector

Torx Screw K50 X 16

Washer M5

Rubber Washer 5 mm

Grommet

Deep Black, RH Panel

PANEL_BODY RH B-160 - Call your local BRP dealership | Electric Start Models

Deep Black RH Moulding Panel

Grille

Push Nut

Hex. Flange Screw K40 X 16

Flat Washer 4 mm, Stainless

RH Center Foam

RH Panel Rear Foam

Adhesive Patch

Deep Black, LH Panel

Deep Black, LH Moulding Panel

Hex. Flange Screw K40 X 16

Flat Washer 4 mm, Stainless

LH Panel Center Foam

LH Panel Lower Foam

LH Panel Upper Foam

LH Panel Rear Foam

Foam

End Piece Latch

Panel Latch

RH Panel Latch

Latch Support

Hex.Flange Screw M5 X 20

Hex. Flange Elastic Nut M5

LH Panel Latch

Pop Rivet 3/16”

Console Decal

RH Decal

LH Decal

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
