Description

Price

1

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

2

Hex. Flange Elastic Nut M8

233281414

$1.14

3

Front Member

518326970

$276.12

4

Hex. Flange Screw M6 X 20

207662044

$1.66

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Rear Member

518326559

$244.58

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

Upper Lateral Column Support

518325114

$20.74

9

Hex. Flange Screw M6 X 20

207662044

$1.66

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Center Column Support

518325115

$20.74

12

Hex. Flange Screw M6 X 25

207662544

$0.53

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14a

Rear Bumper, 146"

518325374

$109.97

14b

CLEAR REAR BUMPER, 146 - Call your local BRP dealership | Track 146", Europe

518325578

Unavailable

14c

Clear Rear Bumper, 154" | 800R PTEK 154"

518324982

$109.97

14d

CLEAR REAR BUMPER, 163 - Call your local BRP dealership | Track 163"

518325375

$86.89

15a

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

15b

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

15c

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

15d

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

16

Flat Washer

224061201

$1.11

17

Full Moon Dart 8 mm

293730041

$2.12

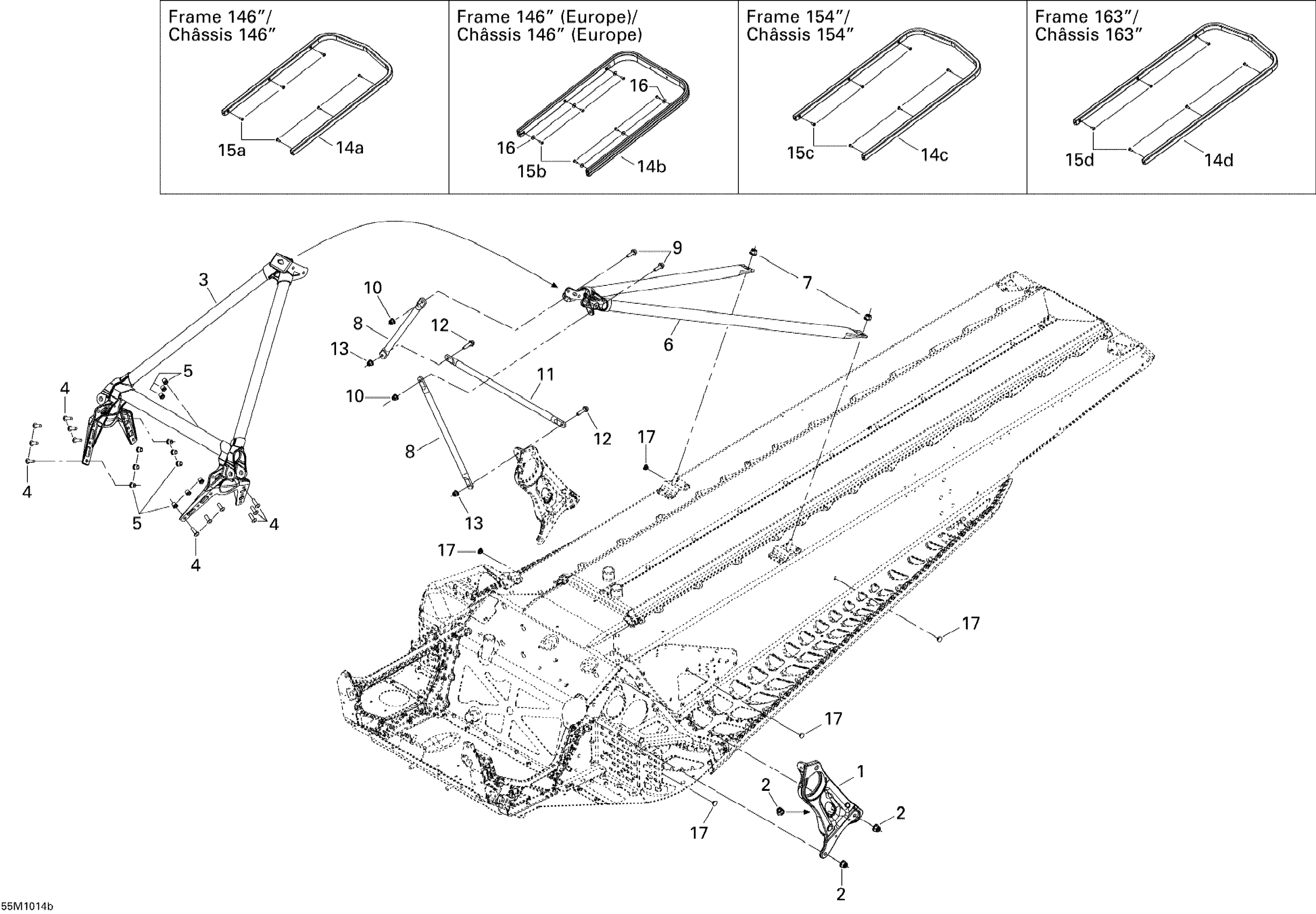

Ski-Doo Summit Everest 600HO ETEC, 2010 Frame and Components 2 Diagram
