Description

Price

1

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 1 to 3

513033578

$239.20

2

RH Panel Clip

513033471

$6.15

3

LH Panel Clip

513033472

$5.52

4

Fuel Tank Cap 91 Octane

513033722

$23.05

5

Sensor Level Fuel | Includes 40 to 40a

513033958

$104.58

6

Fuse, 0.5 Ampère

710001995

$7.48

7

Tubing 10 MM 1000MM Long

219704407

$2.20

8

Grommet

513033606

$18.43

9

Tie Wrap 368 mm

293750008

$0.85

10

Check Valve

513033842

$33.82

11

Grommet

513033596

$18.43

12

Polyurethane Hose 10000Mm Long

219704410

$46.12

13

Spring Clamp

414554800

$0.83

14

Tie-Rap 180 mm

414115200

$0.09

15

Fuel Pump Ass'y | Includes 13 to 15

513033643

$257.66

16

Fuel Filter

415129451

$23.05

17

Ring

513033180

$17.66

18

Gasket

513033334

$23.05

19

RH Cap

513033418

$12.62

20

LH Cap

513033419

$12.62

21

Shoulder Bushing

513033326

$12.62

22

HOSE ASS'Y - Call your local BRP dealership

513033560

$181.51

23

Locking Clip

513033135

$5.11

24

Tubing 16 Mm 1000Mm Long

219704408

$6.23

25

HOSE ASS'Y - Call your local BRP dealership | Includes 25 to 26

513033548

Unavailable

26

Locking Clip

513033135

$5.11

27

Bracket

513033542

$12.62

28

Hex. Flange Screw M5 X 10

207551044

$3.38

29

Hose Ass'y

513033599

Unavailable

30

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

31

Crimp Clamp, 15.3-706R

293650047

$2.64

32

Insulating Foam

513033588

$12.62

33

Tie Rap Mount (screwable)

515176795

$5.11

34

Tie Wrap 142 mm

293750002

$0.88

35

Pop Rivet 3/16" | DS 650 X

390402000

$0.28

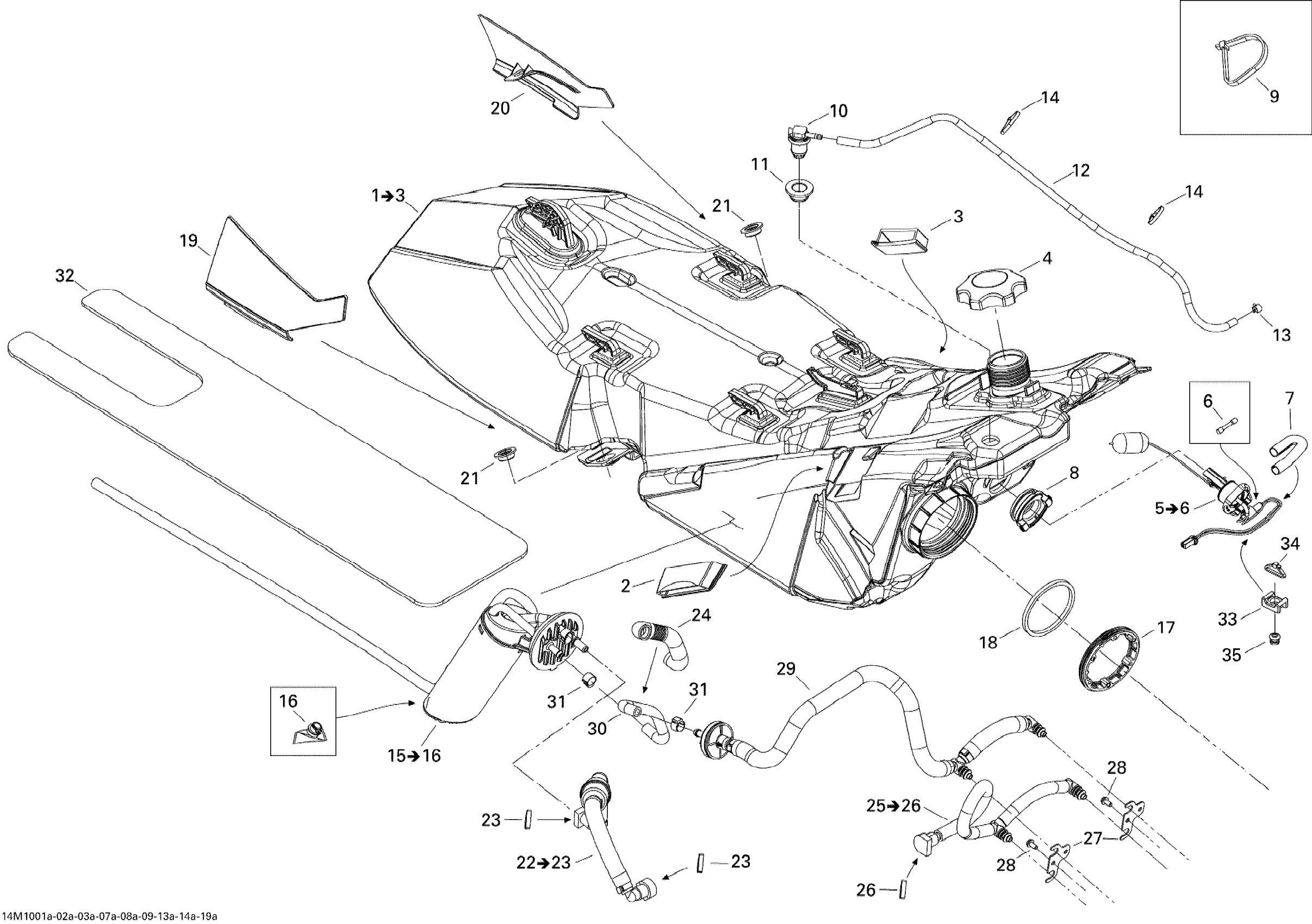

Ski-Doo Summit Everest 600HO ETEC, 2010 Fuel System 600HO ETEC Diagram
