Description

Price

1

Exhaust Manifold This part replaces 420673420.

420673421

$269.97

2

Gasket

420850552

$7.92

3

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.60

5

Washer

514053953

$0.75

6

Exhaust Gasket

514053487

$26.12

7

Exhaust Tuned Pipe | Includes 200 to 200k

514055065

$664.58

8

Front Upper Half Enveloppe

514054992

$38.43

9

Front Lower Half Enveloppe

514054993

$38.43

10

Rear Upper Half Enveloppe

514055039

$67.66

11

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$53.05

12

Henrob Rivet

293150091

$0.75

13

Insulating Wool

514054487

$19.20

14

Retaining Strap

514054408

$10.55

15

Retaining Strap

514054409

$10.55

16

Retaining Strap

514054410

$10.55

17

Retaining Strap

514053499

$8.35

18

Spring

514053643

$6.20

19

Bumper

514054275

$14.65

20

Pop Rivet 3/16"

293150103

$0.54

21

Exhaust Gasket

514054174

$27.66

22

Muffler Ass'y | Includes 400 to 400g

514054970

$738.43

23

Spring Bracket

514054155

Unavailable

24

RH Deflector

514054985

$54.58

25

LH DEFLECTOR - Call your local BRP dealership | 800R ETEC

514054202

$41.51

26

RH Insulating Wool

514054711

$18.43

27

LH Insulating Wool

514054299

$19.20

28

Pop Rivet 3/16”

390910000

$0.48

29

Lower Stopper

514054274

$19.20

30

Upper Stopper

514054606

$14.92

31

Spring Bracket

514054522

$6.28

32

Pop Rivet 3/16"

390402200

$0.26

33

Spring

514054226

$6.20

34

Reflective Sheet

514054488

$11.63

35

Temperature Sensor

514054641

$206.89

36

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

37

Tubing 6 Mm 3000Mm Long

219704425

$13.14

38

Tie Wrap 94 mm | 4X4

293750001

$0.83

39

Clip

414227300

$1.45

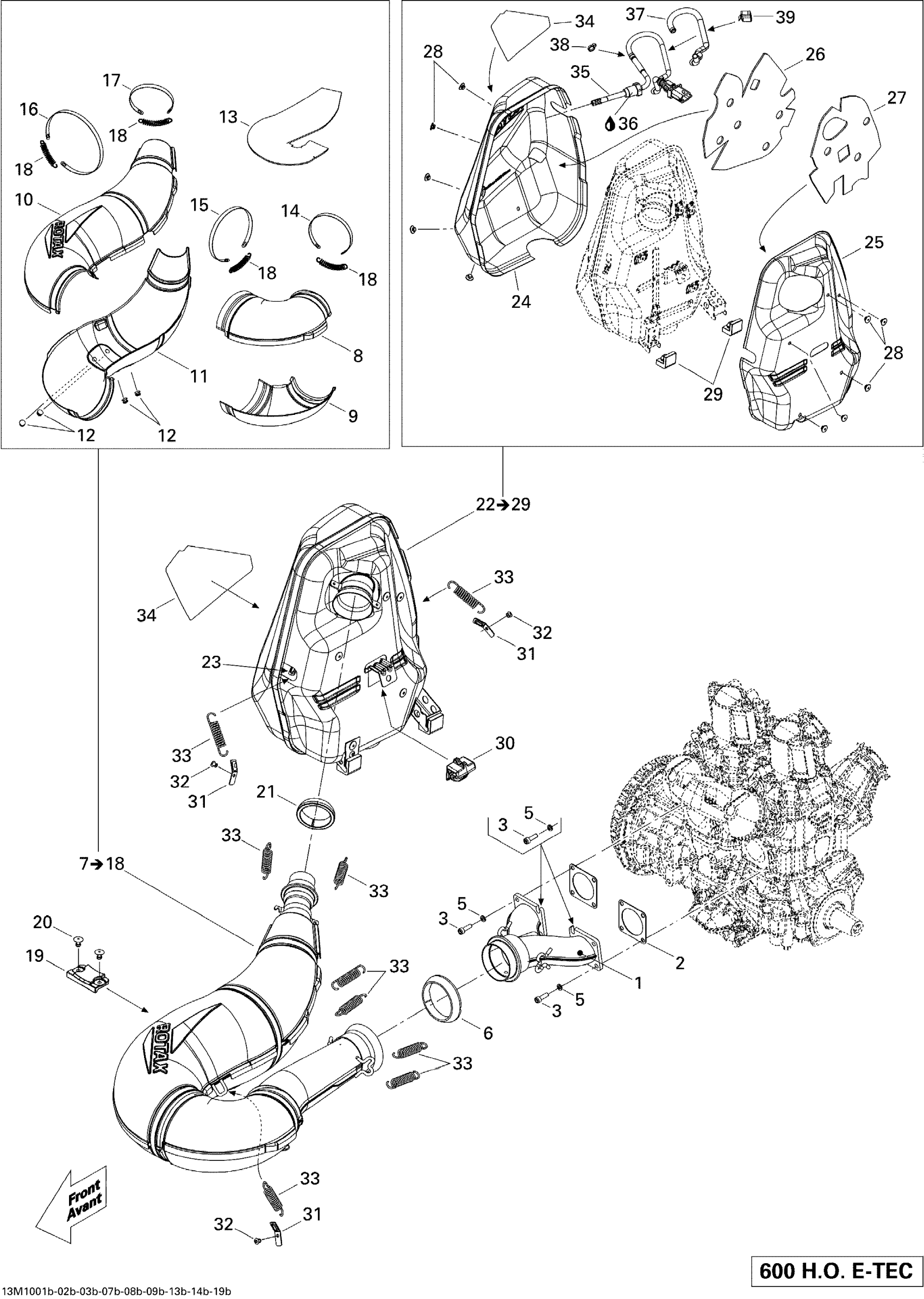

Ski-Doo Summit Everest 600HO ETEC, 2010 Exhaust System 600HO ETEC Diagram
