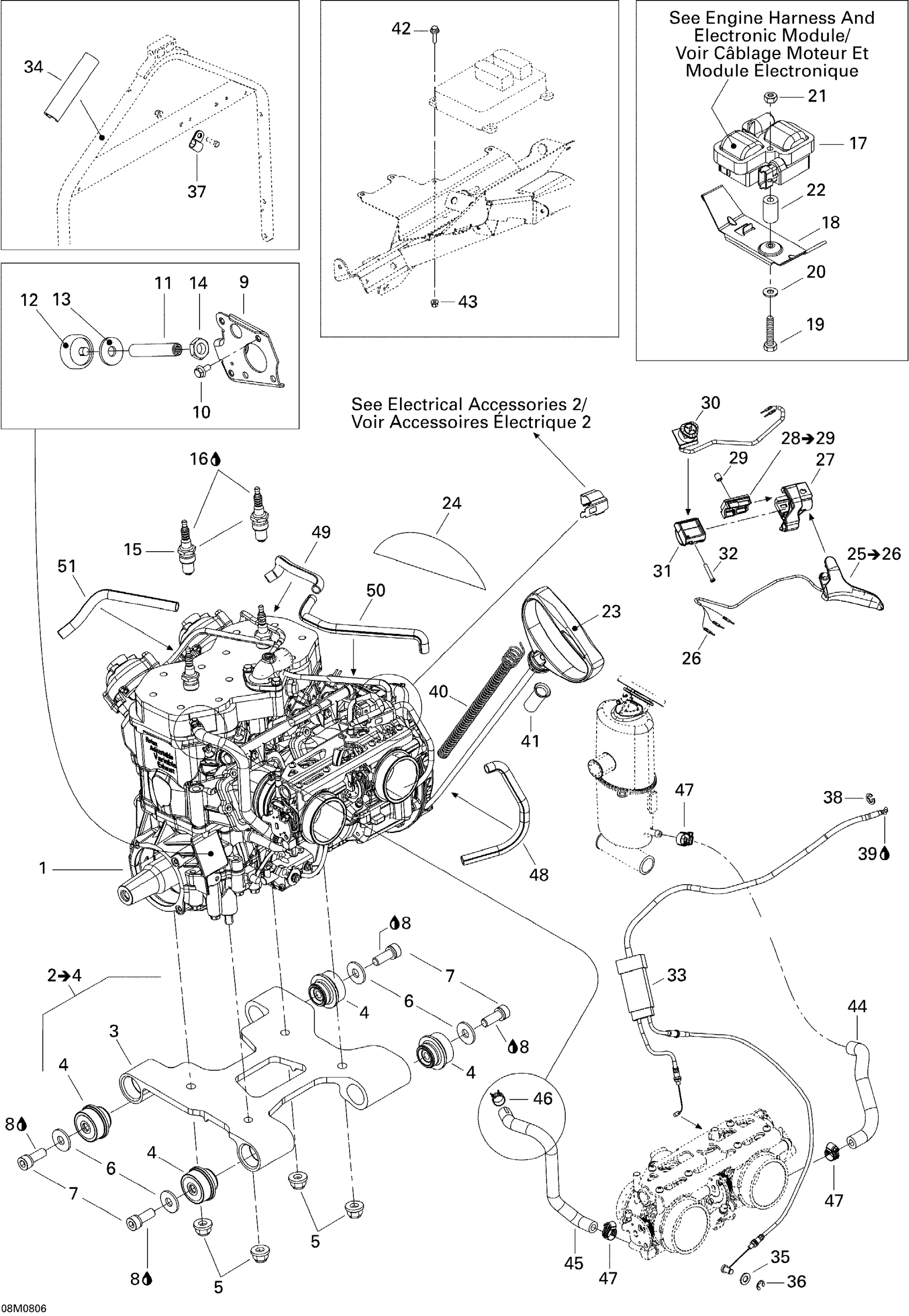

Ski-Doo Summit Adrenaline 600HO SDI, 2008 Engine Diagram

#

Description
Price

1

Engine 593 H.O. SDI (593 SDI)

400509781

Unavailable

1

Engine 593 H.O. SDI

400509782

Unavailable

2

Engine Support Ass'y | Includes 2 to 4

512060050

Unavailable

3

ENGINE SUPPORT - Call your local BRP dealership

512060051

Unavailable

4

Rubber Mount

512059691

$44.58

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

Flat Washer M10 | 4X4

250200014

$1.17

7

TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership

235202544

Unavailable

8

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

9

PLATE - Call your local BRP dealership

512059840

Unavailable

10

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

11

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

12

STOPPER - Call your local BRP dealership

512059610

Unavailable

13

WASHER - Call your local BRP dealership

512059057

Unavailable

14

Hex. Jam Nut M14

232170411

Unavailable

15

Spark Plug NGK BR8ECS

512060029

Unavailable

16

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

17

Ignition Coil

278001546

Unavailable

18

COIL SUPPORT - Call your local BRP dealership

512059865

Unavailable

19

Hex. Screw M6 X 45

207064544

Unavailable

20

Flat Washer 6 mm

234061410

Unavailable

21

Elastic Stop Nut M6

232561414

Unavailable

22

SPACER - Call your local BRP dealership

512059812

Unavailable

23

Starter Grip

572084400

Unavailable

24

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

25

Throttle Handle Ass'y | Includes 45 to 46

512060219

Unavailable

26

Male Terminal

515175232

$1.49

27

LOWER HOUSING - Call your local BRP dealership

512060197

Unavailable

28

Upper Housing Ass'y

512060198

Unavailable

29

Socket Set Screw M8 X 10

414440800

$4.00

30

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

31

Kill Switch Support

515176825

$8.60

32

Torx Screw #8-18

250000263

$1.02

33

THROTTLE CABLE - Call your local BRP dealership

512060086

Unavailable

34

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

35

Flat Washer 8 mm, Nylon

234081100

$1.00

36

Circlip

414753500

$0.59

37

TIE CLAMP - Call your local BRP dealership

293750042

Unavailable

38

Circlip

414274500

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

40

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

41

TUBE - Call your local BRP dealership

512059536

Unavailable

42

Hex.Flange Screw M5 X 20

207652044

$1.56

43

Hex. Flange Elastic Nut M5

233251414

Unavailable

44

FORMED HOSE - Call your local BRP dealership

512059563

Unavailable

45

HOSE-FORMED - Call your local BRP dealership This part replaces 512059990.

605354601

Unavailable

46

Universal Spring Clamp

513033029

Unavailable

47

Tridon Gear Clamp

293650170

$1.74

48

Was 409901700 Tubing (9 mm)

219704399

Unavailable

49

Was 409901700 Tubing (9 mm)

219704399

Unavailable

50

Was 409901700 Tubing (9 mm)

219704399

Unavailable

51

Was 409901700 Tubing (9 mm)

219704399

Unavailable
