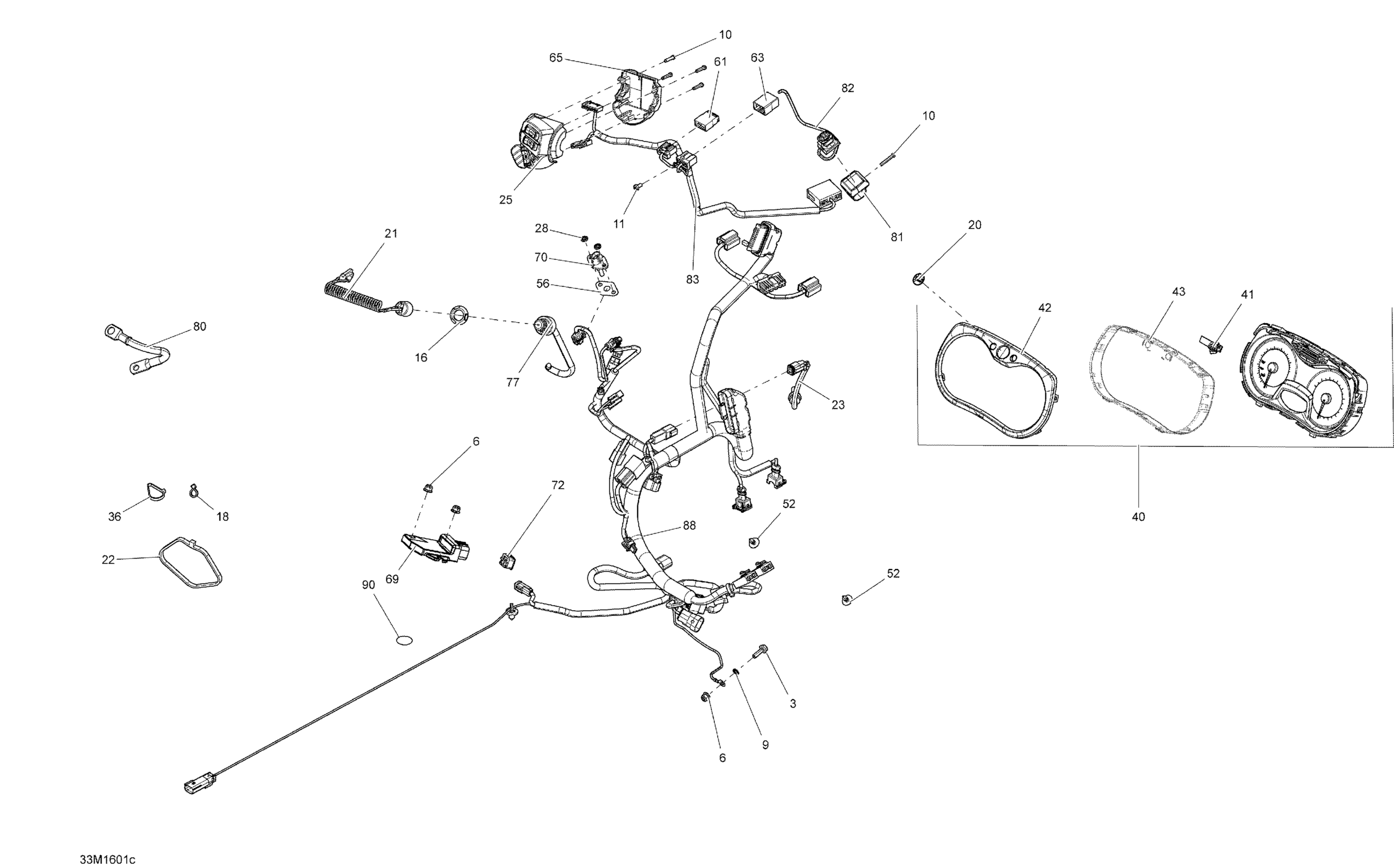

Ski-Doo SUMMIT 800R P-TEK 000CBGA00 Electrical System - 800R PTEK Diagram

#

Description
Price

3

Hex. Flange Screw M6 X 20

207662044

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

External Serrated Lock Washer 6 mm

234461608

Unavailable

10

Torx Screw #8-18

250000263

$1.02

11

Pan Screw Forming, 7500C

250000690

Unavailable

16

Safety Nut (DESS Switch)

278002963

$2.72

18

Tie Wrap 142 mm

293750002

Unavailable

20

BRP Logo 20MM x 2MM | XTP

516006224

Unavailable

21

DESS

515178284

Unavailable

22

Tie Wrap 368 mm

293750008

$0.85

23

Temperature Sensor This part replaces 420664508.

420664509

Unavailable

25

LH Housing

515177022

Unavailable

27

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

28

Push Nut

389804300

$0.43

36

Tie-Rap 180 mm

414115200

$0.09

40

Speedometer | Includes 10 to 10c

515177914

Unavailable

41

Speedometer Button | XTP

415129355

Unavailable

42

Gauge Ring

415129370

$10.66

43

Lens | XTP

415129349

Unavailable

52

Black, Dart

414644300

$0.78

56

Seal

508000769

$5.22

61

Male Terminal Housing, 6 Circuits

515175662

Unavailable

63

Male Terminal Housing, 8 Circuits

515175817

Unavailable

65

Switch Housing Plate

515175926

Unavailable

69

Voltage Regulator

515176364

Unavailable

70

Air Temperature Sensor

515176366

$18.43

72

Lock

515176681

Unavailable

77

DESS Switch

515177249

Unavailable

80

Ground Wire

515177289

Unavailable

81

Emergency Stop Switch Support

515177310

$8.60

82

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

83

Steering Wiring Harness

515177609

Unavailable

88

WIRING HARNESS ASSY - Call your local BRP dealership | Includes 1 To VSS

515177981

$455.35

90

Adhesive Patch

518325560

Unavailable
