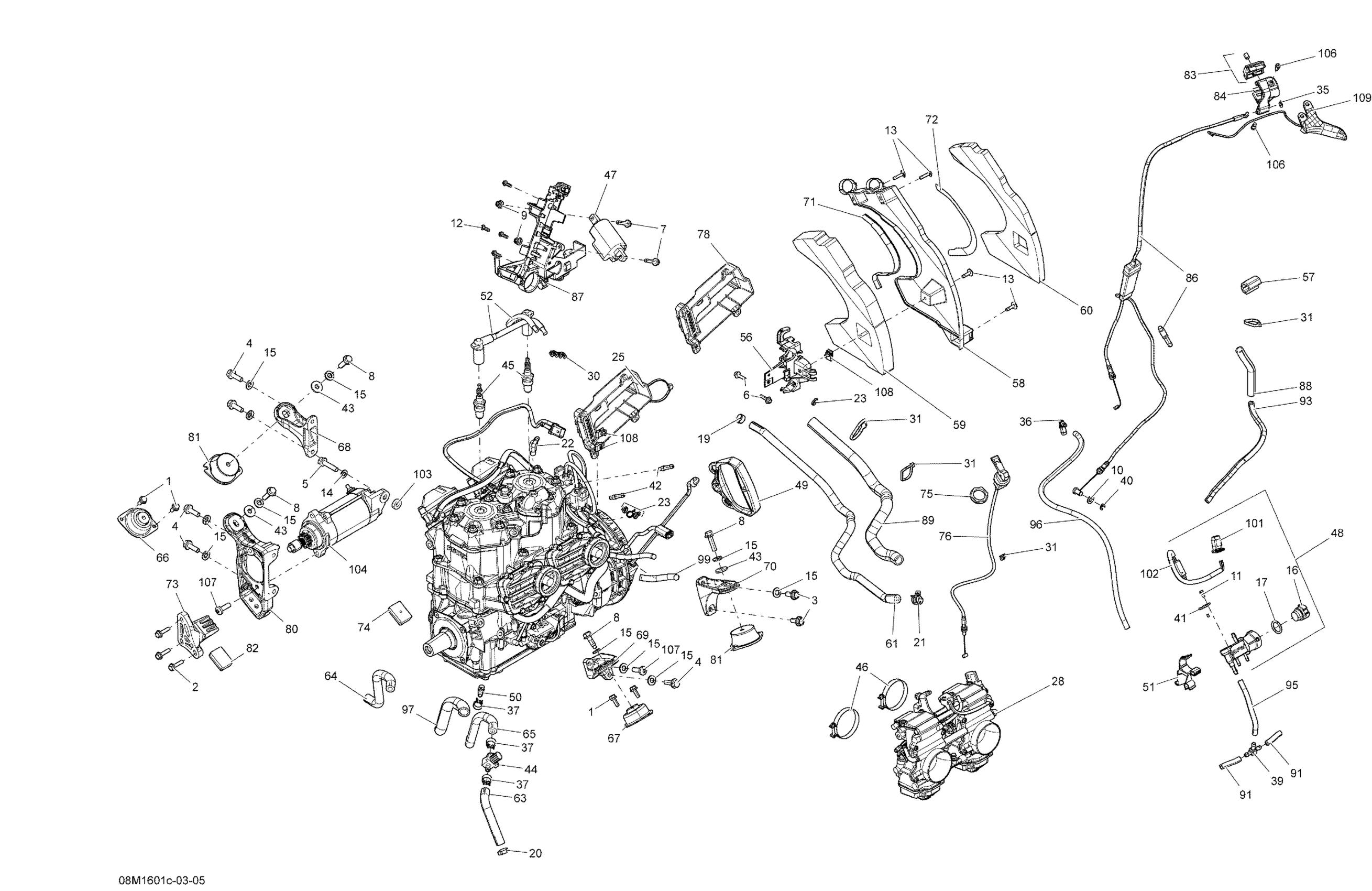

Ski-Doo SUMMIT 800R P-TEK 000CBGA00 Engine - 800R PTEK Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

2

Hex. Flange Screw M6 X 25

207562544

$1.39

3

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

4

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

5

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

6

Hex.Flange Screw M5 X 20

207652044

$1.56

7

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

8

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

10

Flat Washer 8 mm, Nylon

234081100

$1.00

11

Screw K40 X 10

241140060

$1.25

12

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

13

Torx Screw M5 X 20

250000528

Unavailable

14

Flat Washer With Teflon 8 mm

250200008

Unavailable

15

Conical Spring Washer M8

250200146

Unavailable

16

CAP - Call your local BRP dealership

270600009

$5.63

17

O-RING - Call your local BRP dealership

293300042

$7.69

19

Oetiker Clamp

293650046

Unavailable

20

Oetiker Clamp

293650125

$2.69

21

Norma Spring Clamp

293650214

$15.35

22

ELBOW FITTING 90 - Call your local BRP dealership

293700045

Unavailable

23

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

Not Available As Spare Part - Friction Washer

Unavailable

28

CARBURATOR KIT, TM40-B397 - Call your local BRP dealership | Engine 800R

403138805

Unavailable

30

Plastic Clip, Spark Plug Wire

410914600

Unavailable

31

Tie-Rap 180 mm

414115200

$0.09

35

Circlip

414274500

Unavailable

36

Male Connector

414580700

Unavailable

37

Spring Clamp

414655700

Unavailable

39

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

40

Circlip

414753500

$0.59

41

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Yellow, Washer

503183200

Unavailable

44

Valve 5/16” | Grand Touring 500.

512059324

Unavailable

45

Spark Plug NGK BR9ECS

415128524

Unavailable

46

Gemi Clamp

512059835

Unavailable

47

Ignition Coil

512059968

Unavailable

48

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

$221.51

49

Starter Grip

512060136

$14.54

50

Male Connector 1/8"-27 NPT

512060196

Unavailable

51

DPM SUPPORT - Call your local BRP dealership

512060229

Unavailable

52

Cable

512060291

Unavailable

56

Solenoid Support

512060298

$12.52

57

Protector

512060313

$9.31

58

Noise Shield

512060338

Unavailable

59

Inner Noise Foam

512060341

Unavailable

60

Outer Noise Foam

512060342

Unavailable

61

Hose Formed

512060347

Unavailable

63

Hose Formed

512060353

Unavailable

64

Not Available As Spare Part - Friction Washer

Unavailable

65

HOSE FORMED ENGINE OUTLET - Call your local BRP dealership

512060357

$21.51

66

Rubber Mount

512060387

$42.28

67

Rubber Mount

512060448

$42.28

68

Front Support, MAG

512060469

$31.51

69

Rear Support, PTO

512060478

$29.97

70

Rear Support, MAG

512060559

$29.97

71

Heat Shield

512060574

Unavailable

72

Heat Shield

512060575

Unavailable

73

Stopper Support

512060576

$28.43

74

Not Available As Spare Part - Friction Washer

Unavailable

75

Plastic Nut

512060671

$0.98

76

Choke Cable

512060672

Unavailable

78

CALIBRATED MODULE, 800R POWERT.E.K. - Call your local BRP dealership | Engine 800R

512060684

Unavailable

80

Front Support, PTO

512060714

$85.35

81

Rubber Mount

512060729

$69.97

82

Stopper

512060766

$9.31

83

Upper Housing

512060859

Unavailable

84

Lower Housing

512060860

Unavailable

86

Throttle Cable

512060893

Unavailable

87

Coils Support

512060924

$9.31

88

Tubing 10 MM 1000MM Long

219704407

Unavailable

89

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

91

Polyurethane Hose 10000Mm Long

219704410

Unavailable

93

Tubing 6 Mm 3000Mm Long

219704425

$13.14

95

Polyurethane Hose 10000Mm Long

219704410

Unavailable

96

Polyurethane Hose 10000Mm Long

219704410

Unavailable

97

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

99

Tubing 10 MM 1000MM Long

219704407

Unavailable

101

Female Terminal Housing, 2 Circuits

515175670

Unavailable

101

Female Lock, 2 Circuits

515175675

Unavailable

101

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

102

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

$73.82

103

Washer

515176500

Unavailable

104

Starter

515178473

$319.49

106

Flange Screw

732601143

$4.02

107

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

108

Panel Nut M5 X 0.8

250000958

Unavailable

109

Throttle Handle Ass'y

512061252

Unavailable
