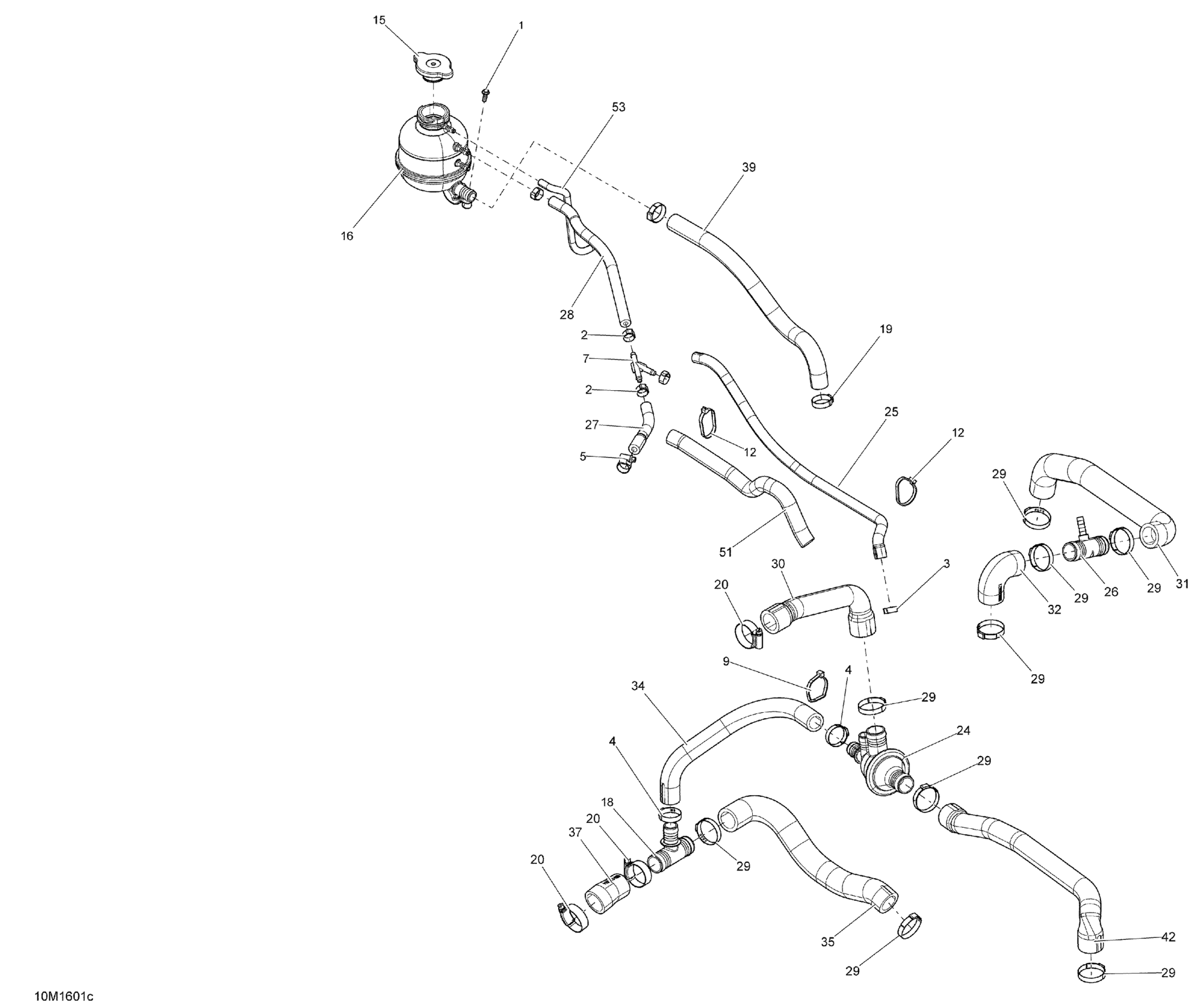

Ski-Doo SUMMIT 800R P-TEK 000CBGA00 Cooling System - PTEK Engine Diagram

#

Description
Price

1

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

2

Oetiker Clamp

293650046

Unavailable

3

Crimp Clamp, 15.3-706R

293650047

Unavailable

4

Crimp Clamp

293650099

Unavailable

5

Tridon Gear Clamp

293650170

$1.74

7

Y-Fitting

293710059

Unavailable

9

Tie Wrap 368 mm

293750008

$0.85

12

Tie-Rap 180 mm

414115200

$0.09

15

Radiator Pressure Cap

509000180

Unavailable

16

Coolant Tank

509000368

$86.89

18

T-Fitting

509000372

$7.87

19

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

20

Aba Gear Clamp, 26-38 MM

509000443

$5.68

24

Thermostat Housing

509000499

$39.97

25

Bleeder Hose

509000502

$23.82

26

T-Fitting

509000510

$11.52

27

BLEEDER HOSE - Call your local BRP dealership

509000516

$16.89

28

BLEEDER HOSE - Call your local BRP dealership

509000517

$19.97

29

Oetiker Gear Clamp, 36.5-706R

509000529

$10.14

30

ENGINE OUTLET HOSE - Call your local BRP dealership

509000669

Unavailable

31

Radiator Hose

509000670

$34.58

32

Radiator Hose This part replaces 509000671.

509001066

$18.43

34

Bypass Hose

509000672

$24.58

35

Radiator Hose

509000673

$22.28

37

Engine Inlet Hose

509000997

$18.43

39

Filling Hose

509000676

Unavailable

42

Thermostat Outlet Hose

509000679

$25.35

51

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

53

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable
