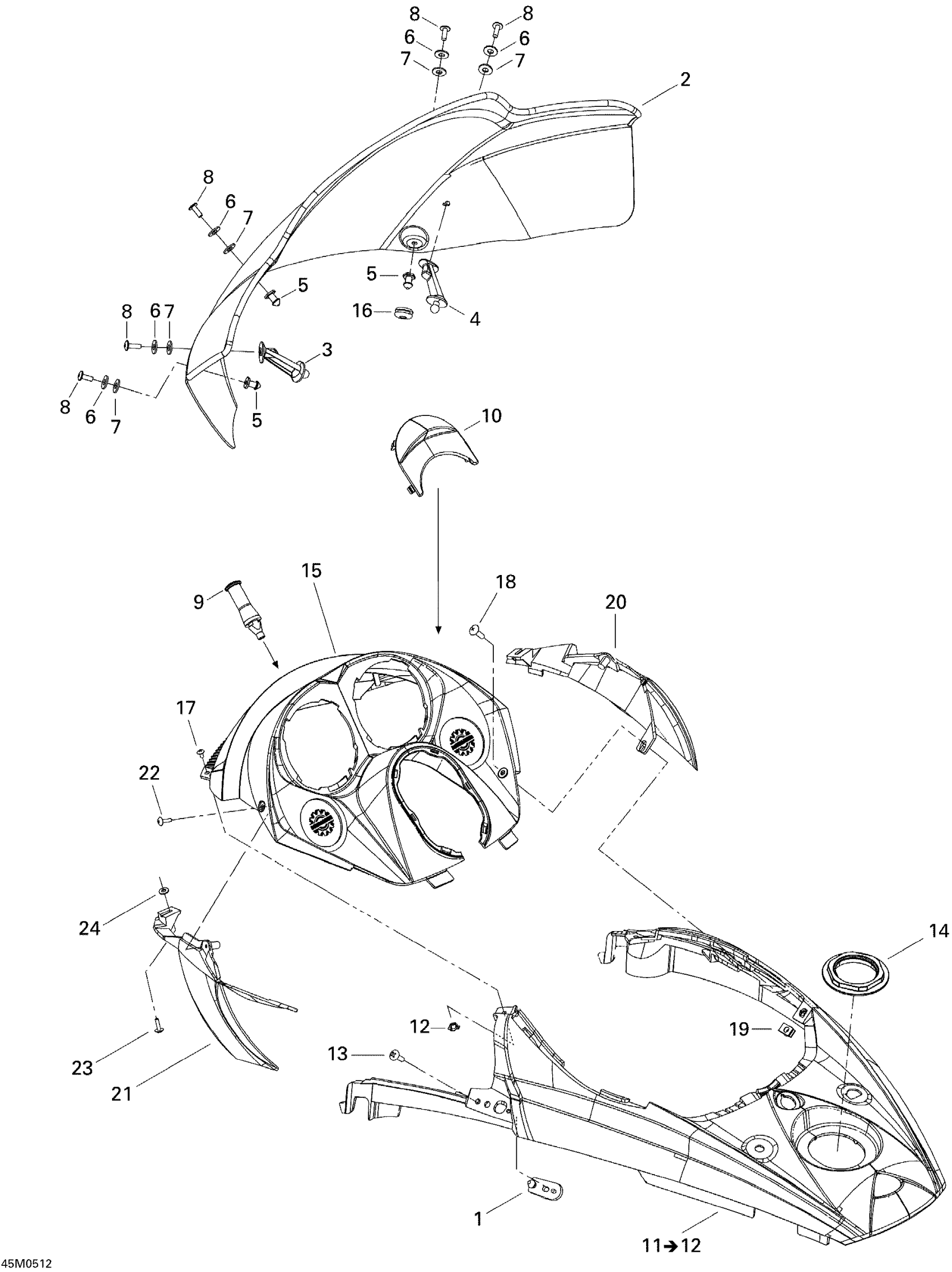

Ski-Doo Summit 800 HO, 2005 Windshield And Console 800HO Diagram
#
Description
Price
1
HOOD LATCH - Call your local BRP dealership
517302616
Unavailable
2
MEDIUM WINDSHIELD - Call your local BRP dealership
517303174
Unavailable
2
MEDIUM WINDSHIELD - Call your local BRP dealership
517303174
Unavailable
3
LH WINDSHIELD SUPPORT - Call your local BRP dealership
517303214
Unavailable
4
RH WINDSHIELD SUPPORT - Call your local BRP dealership
517303215
Unavailable
6
Washer M5
250200025
Unavailable
9
WINDSHIELD SUPPORT - Call your local BRP dealership
517303197
Unavailable
10
CONSOLE CAP - Call your local BRP dealership
517302592
Unavailable
11
CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 10 to 11, (Black/Yellow)
517302795
Unavailable
11
CENTER CONSOLE, YELLOW - Call your local BRP dealership | Includes 10 to 11
517302845
Unavailable
11
CENTER CONSOLE - Call your local BRP dealership | Includes 13 to 14, X, Black-Black Model
517303072
Unavailable
11
Center Console | Includes 11 to 12 / X, Cab Yellow B-190
517303073
Unavailable
12
T-NUT, M4 - Call your local BRP dealership
250100030
Unavailable
13
Torx Screw M6 X 20
250000722
Unavailable
14
CONSOLE NUT - Call your local BRP dealership
517302575
Unavailable
15
INDICATOR SUPPORT - Call your local BRP dealership
517303470
Unavailable
16
Grommet
517302841
Unavailable
18
Torx Screw M5 X 20
250000724
Unavailable
19
Panel Nut M5 X 0.8
250000958
Unavailable
20
RH AIR DEFLECTOR - Call your local BRP dealership
517302546
Unavailable
20
RH Air Deflector
517302798
Unavailable
21
LH AIR DEFLECTOR - Call your local BRP dealership
517302547
Unavailable
21
LH AIR DEFLECTOR - Call your local BRP dealership
517302799
Unavailable
22
Phillips Screw K40 X 16
250000723
Unavailable
23
Screw M4 X 16
250000725
Unavailable
24
Flat Washer 4 mm, Stainless
234042600
Unavailable
