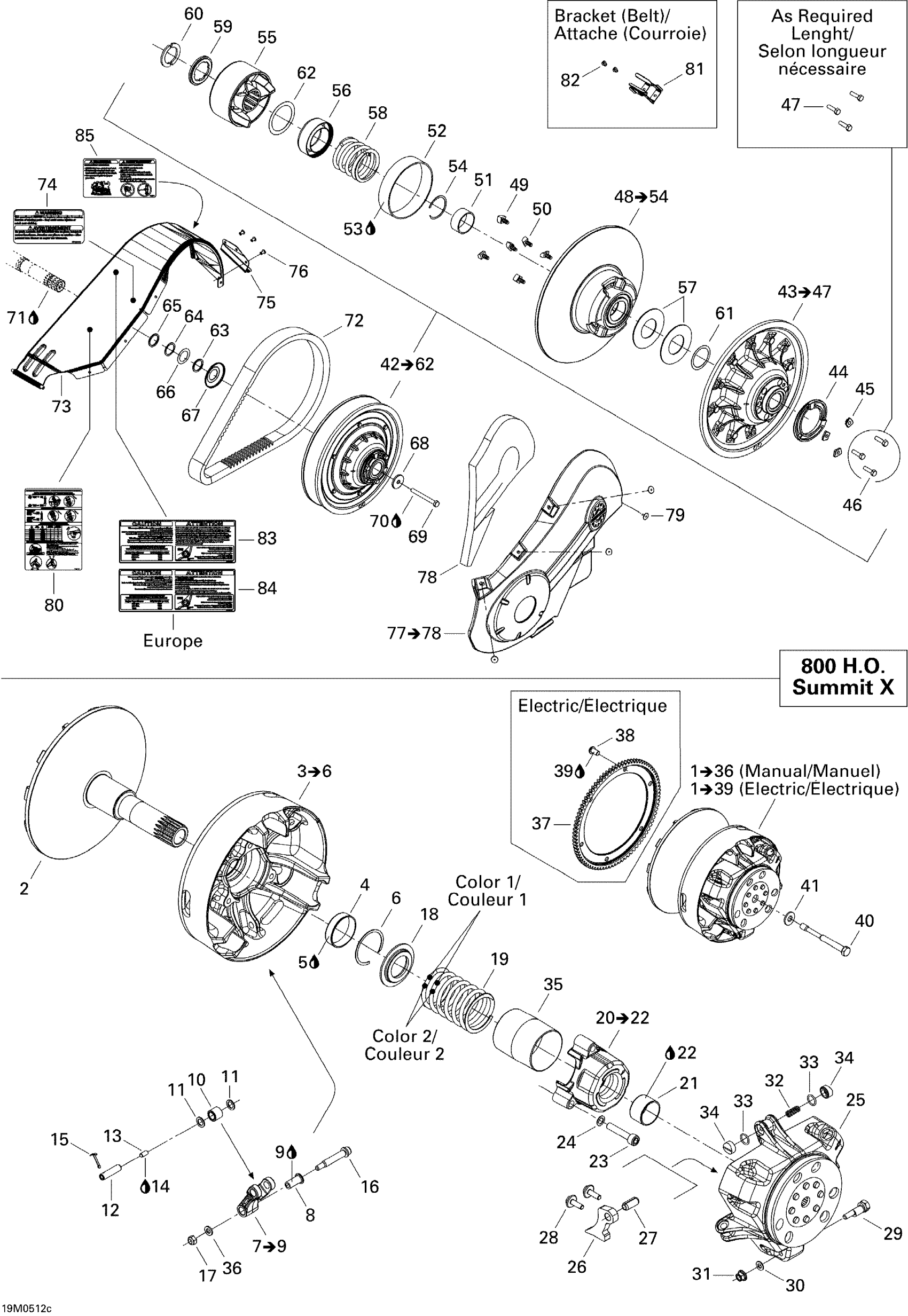

Ski-Doo Summit 800 HO, 2005 Pulley System 800HO X Diagram
#
1
Drive Pulley Ass'y | Includes 1 to 36 / Manual Start
417222699
Unavailable
1
Drive Pulley Ass'y | Includes 1 to 39 / Electric Start
417222757
Unavailable
2
Flasque Fixe As*Flange-Fixe Ass. This part replaces 417222904.
417222970
Unavailable
3
Flasque Coul.As*Flange-Slid Kit | Includes 3 to 6 This part replaces 417222171.
415129293
Unavailable
8
Bushing
417222633
Unavailable
13
SOCKET SET SCREW M6 X 12 - Call your local BRP dealership
250000407
Unavailable
16
SCREW ASS'Y - Call your local BRP dealership
417222028
Unavailable
17
Elastic Stop Nut M6
232561414
Unavailable
24
Lock Washer 8 mm
250200009
Unavailable
25
Governor Cup
417222213
Unavailable
26
RAMP 415 - Call your local BRP dealership
417222548
Unavailable
29
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
31
Hex. Flange Nut M6
233061414
Unavailable
32
Spring
417005700
Unavailable
36
Flat Washer 6 mm
234061410
Unavailable
37
Ens This part replaces 861790500.
861791800
Unavailable
38
Hex. Screw M8 X 16
236281684
Unavailable
39
Loctite 271, 10 ml
293800005
Unavailable
40
Spring Washer 14 mm
250200006
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
43
Fixed Flange Ass'y | Includes 40 to 44
417126603
Unavailable
44
Adjustment Ring
415005800
Unavailable
45
Adjustment Shim
415005900
Unavailable
46
Hex. Screw M6 X 25
207162544
Unavailable
47
HEX. SCREW M6 X 22 - Call your local BRP dealership
207162244
Unavailable
48
SLIDING FLANGE ASS'Y - Call your local BRP dealership | Includes 39 to 46
417126909
Unavailable
49
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership
417126373
Unavailable
50
Front Cam Slider Shoe, Black This part replaces 619100040.
417126374
Unavailable
51
Not Available As Spare Part - Friction Washer
Unavailable
52
BUSHING - Call your local BRP dealership
417126902
Unavailable
54
CIRCLIP - Call your local BRP dealership This part replaces 619100033.
371911200
Unavailable
55
CAM ASS'Y - Call your local BRP dealership
417126445
Unavailable
55
CAM ASS'Y - Call your local BRP dealership
417126445
Unavailable
55
CAM ASS'Y - Call your local BRP dealership
417126830
Unavailable
56
GUARD - Call your local BRP dealership
417126381
Unavailable
57
STOPPER WASHER - Call your local BRP dealership
504099600
Unavailable
59
SPACER - Call your local BRP dealership
417126733
Unavailable
60
HALF KEY - Call your local BRP dealership
417126734
Unavailable
61
SHIM - Call your local BRP dealership
504112300
Unavailable
62
SWIVEL ABUTMENT - Call your local BRP dealership
417126322
Unavailable
67
PROTECTOR - Call your local BRP dealership
417300238
Unavailable
69
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
71
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
72
Drive Belt
417300551
Unavailable
73
BELT GUARD - Call your local BRP dealership
417300213
Unavailable
74
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership
516002670
Unavailable
75
BELT GUARD BRACKET - Call your local BRP dealership
417300216
Unavailable
76
Avex Rivet
390909200
Unavailable
77
Side Protector Ass'y | Includes 49 to 50
417300248
Unavailable
78
Foam
417300246
Unavailable
79
Pop Rivet 3/16"
293150103
Unavailable
80
Decal, Suspension Adjustment
516001639
Unavailable
81
Bracket
517281905
Unavailable
83
Caution Decal,Altitude
516002737
Unavailable
84
Caution Decal, Altitude | Europe
516002738
Unavailable
85
EMERGENCY STARTING LABEL - Call your local BRP dealership
516002674
Unavailable
