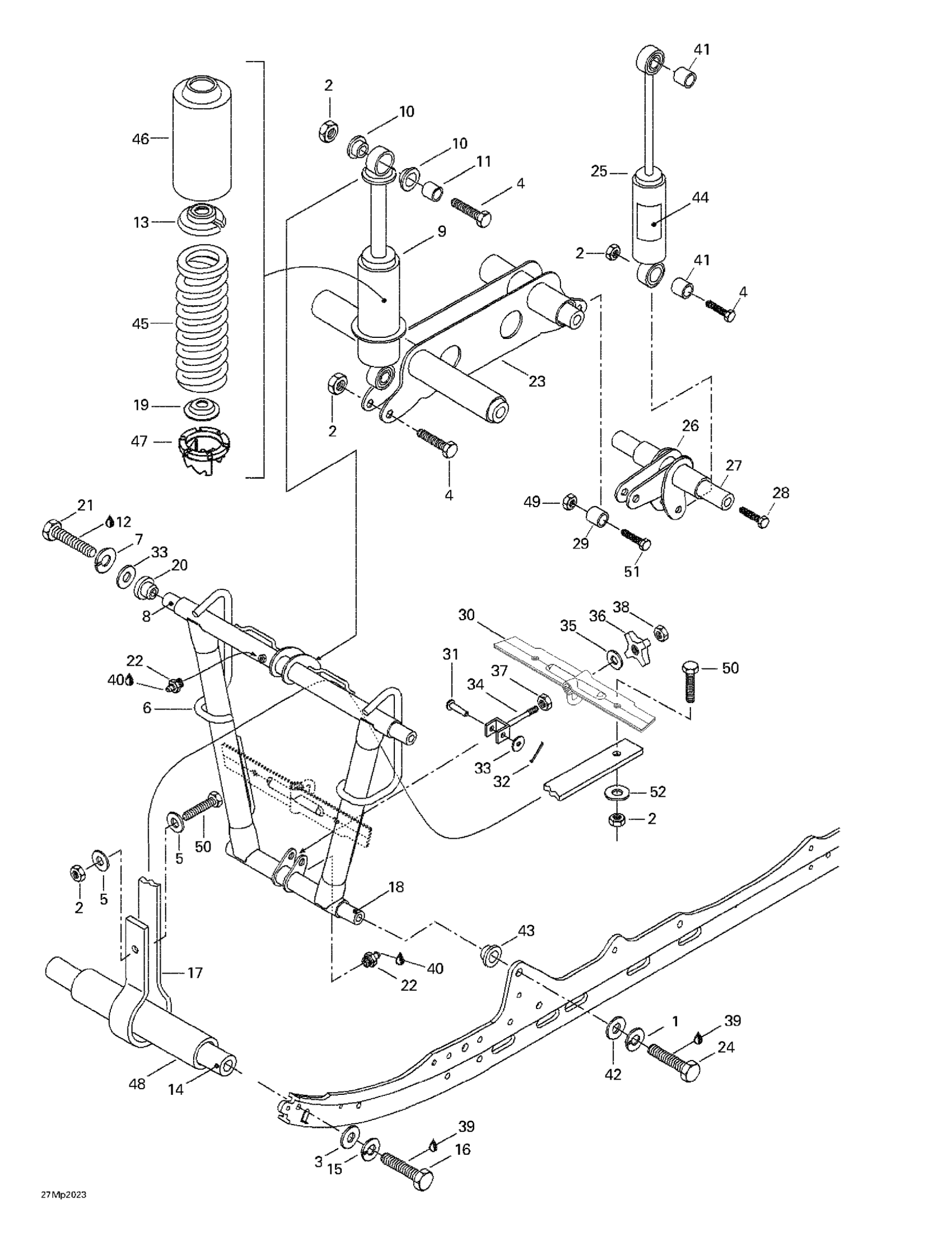

Ski-Doo Summit 800 H.M., 2000 Front Arm Diagram

#

Description
Price

1

Lock Washer 12 mm

234120602

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

$0.47

3

Flat Washer 8 mm

234081410

$0.69

4

Hex. Screw M8 X 40

207084044

$0.92

5

Flat Washer

224081301

$0.86

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Center Shock | Includes 9 - 11.

503188914

Unavailable

10

Bushing

503189364

Unavailable

11

Bushing

503189363

Unavailable

12

Loctite 243, 10 ml

293800060

$20.77

13

Spring Stopper

706200881

$10.30

14

Axle

503151600

$15.35

15

Lock Washer 8 mm

234181401

$0.89

16

Hex. Screw M8 X 30

207183044

$0.92

17

Stopper strap

503189450

Unavailable

18

SHAFT - Call your local BRP dealership

503189313

Unavailable

19

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

20

Bushing

503189324

$11.17

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$2.80

23

Shock Support | Summit 700 HM.

503173300

Unavailable

24

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

25

Rear Shock Kayaba (EUROPE) | Includes 24 - 28.

503188917

Unavailable

26

Rear Shock Support | Summit 700 HM.

503189440

Unavailable

27

WHEEL AXLE - Call your local BRP dealership

503188700

Unavailable

28

Hex. Flange Screw M10 X 35

207503544

$7.17

29

SPACER - Call your local BRP dealership

503189448

Unavailable

30

Belt Bracket

503188400

Unavailable

31

Clevis Pin

415016200

Unavailable

32

COTTER PIN - Call your local BRP dealership

371801000

Unavailable

33

Flat Washer 10 mm

234001410

$0.98

34

Stopper

503169300

Unavailable

35

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

36

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

37

Hex. Nut M10 X 1.5

232006414

$1.11

38

Elastic Locking Nut M10 X 1.5

233601416

$1.68

39

Loctite 271, 10 ml

293800005

$20.77

40

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

41

Bushing

414936000

$11.55

42

Flat Washer 12 mm

234021410

$0.68

43

CUSHION - Call your local BRP dealership

503189323

Unavailable

44

HPG Decal (Europe)

516000182

Unavailable

45

SPRING - Call your local BRP dealership

415070100

Unavailable

46

Protector

503193663

$35.35

47

Cam

503169000

Unavailable

48

Spacer

503189265

$4.75

49

Hex. Elastic Stop Nut M8

232581414

$0.47

50

Hex. Screw M8 X 25

207182544

$0.74

51

Hex. Screw M8 X 40

207084044

$0.92

52

Washer

503183100

$3.08
