2000 Ski-Doo Summit 800 H.M. Driven Pulley Diagram

← All diagrams

Find the part on the Driven Pulley diagram for your 2000 Ski-Doo Summit 800 H.M., then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

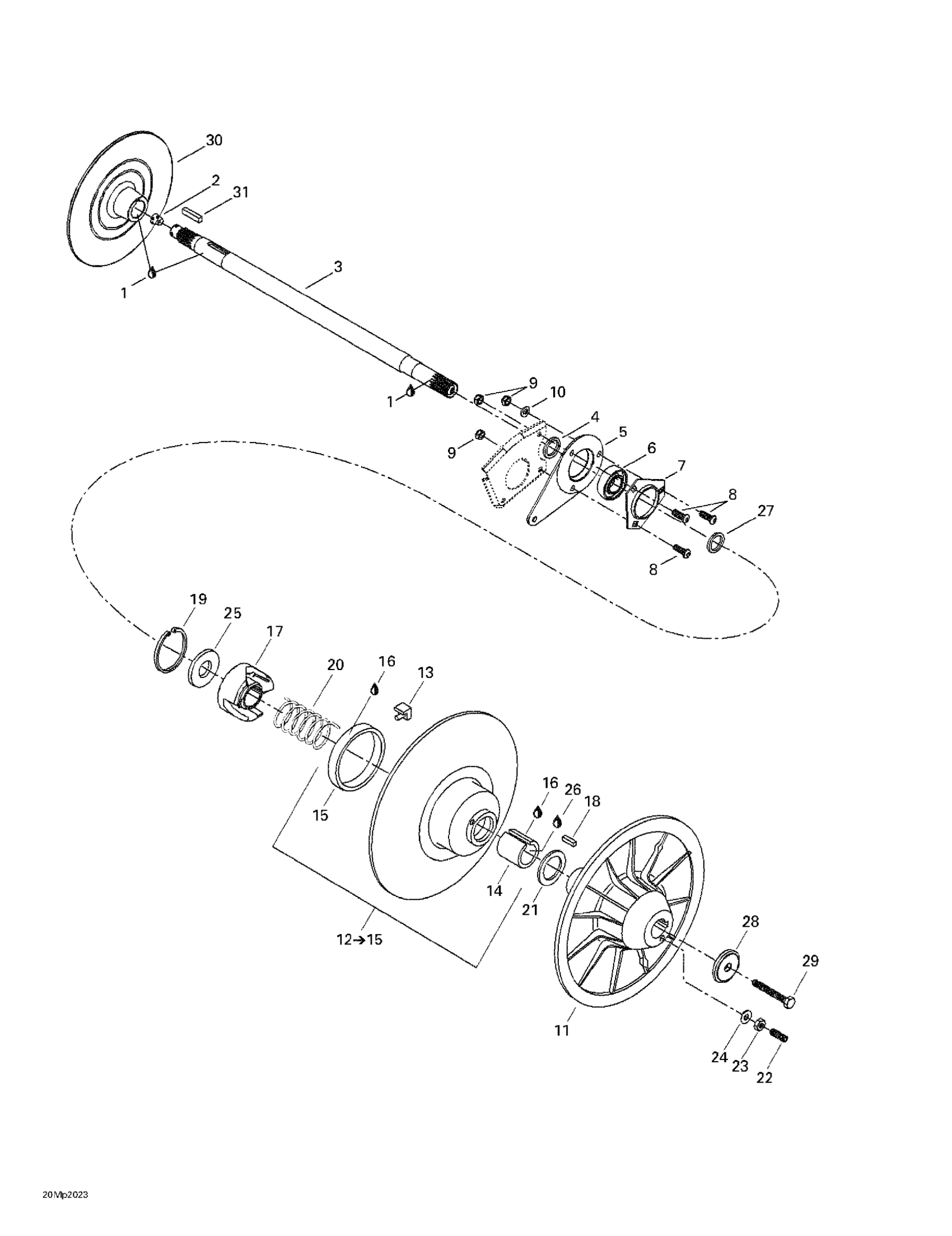

2000 Ski-Doo Summit 800 H.M. Driven Pulley Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

—
Out of stock

2

CORK - Call your local BRP dealership

414784800

—
Out of stock

3

COUNTER SHAFT - Call your local BRP dealership

501026300

—
Out of stock

4

Spacer

504149100

1

$11.20

In stock

5

Spacer (Casting)

080044200

1
Out of stock

6

Bearing-Ball

405408900

—
Out of stock

7

FLANGE - Call your local BRP dealership

501025000

—
Out of stock

9

Hex. Elastic Stop Nut M8

232581414

3
Out of stock

10

Flat Washer 8 mm

234081410

1
Out of stock

11

Fixed Flange

417010200

—
Out of stock

12

Sliding Pulley | Includes 24 - 27.

504143400

—
Out of stock

13

CAM SLIDER SHOE - Call your local BRP dealership

414918000

—
Out of stock

14

BUSHING - Call your local BRP dealership

415011200

—
Out of stock

15

GARLOCK BUSHING - Call your local BRP dealership

414876600

—
Out of stock

16

Loctite 609, 10 ml

413703100

1
Out of stock

17

Cam 50 Deg./47 Deg | Summit 800.

417126339

—
Out of stock

18

Key

414820800

—
Out of stock

19

CIRCLIP - Call your local BRP dealership

371903100

—
Out of stock

20

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

—
Out of stock

21

Thrust Washer

504141900

—
Out of stock

22

Socket Set Screw M6 X 30

206263044

—
Out of stock

23

Hex. Nut M6

232061414

3

$0.44

In stock

24

WASHER - Call your local BRP dealership

420245370

—
Out of stock

25

Washer

504141800

—
Out of stock

26

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

—
Out of stock

27

Spacer

504149100

1

$11.20

In stock

28

Strength Washer

517302322

1
Out of stock

29

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

—
Out of stock

30

BRAKE DISK - Call your local BRP dealership

507031300

—
Out of stock

31

KEY - Call your local BRP dealership

507021300

—
Out of stock
