Partiron

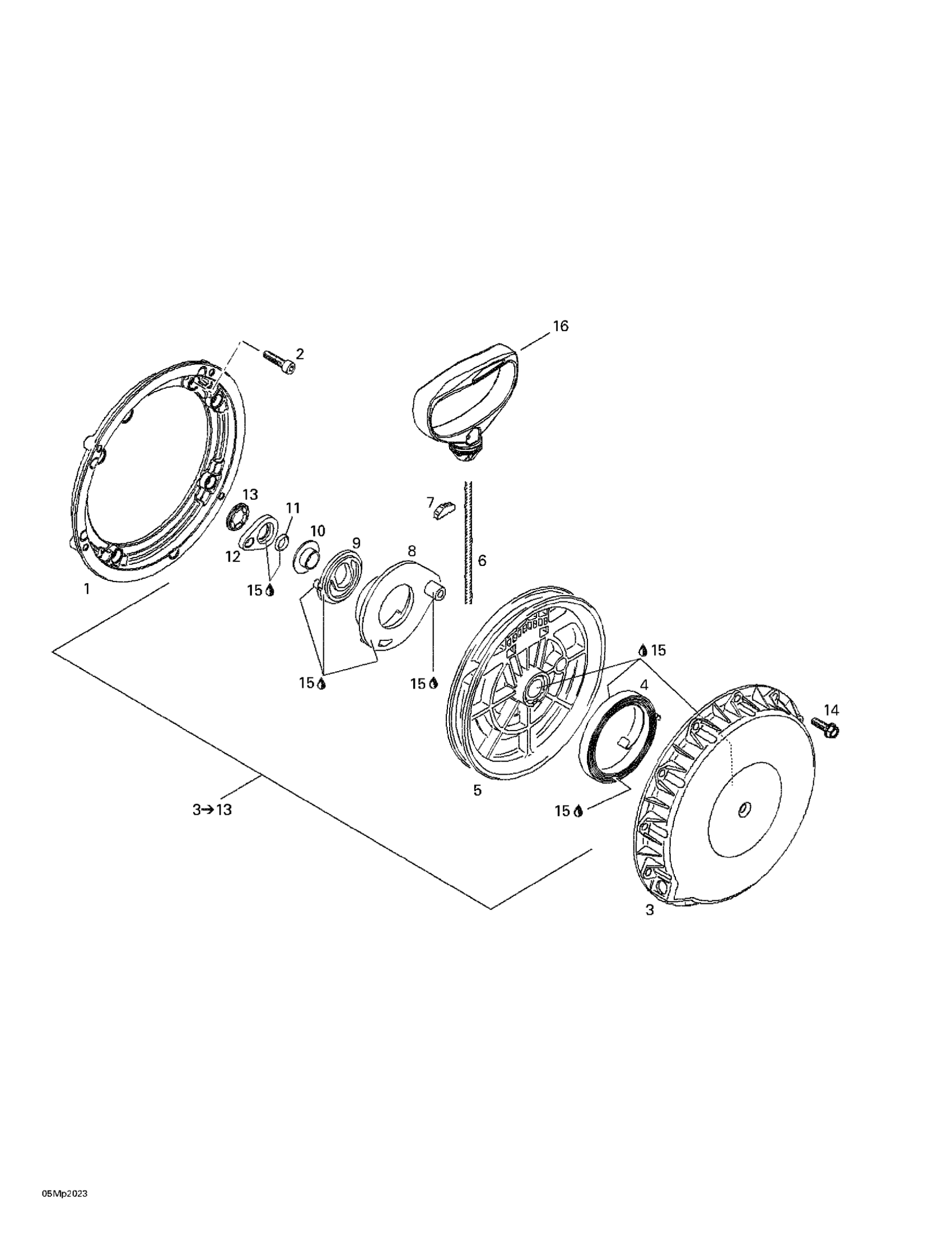

Ski-Doo Summit 800 H.M., 2000 Rewind Starter Diagram

#

Description
Price

1

Flange Connector

420810868

$86.12

2

Socket Head Screw M6 x 16

420241237

Unavailable

3

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$166.12

3

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

420887448

Unavailable

4

Rewind Spring

420939115

$25.32

5

ROPE SHEAVE - Call your local BRP dealership | MX-Z 700.

420852284

Unavailable

6

Was 412500100 Rope-Starter

219704403

Unavailable

7

Key Clamp

420852070

Unavailable

8

Pawl

420852633

$32.28

9

PAWL LOCK - Call your local BRP dealership

420852302

Unavailable

10

Stage Sleeve

420847926

Unavailable

11

O-Ring

420250400

Unavailable

12

Lock Ring

420852520

Unavailable

13

Locking Element

420845560

Unavailable

14

Torx Flange Screw M6 X 20

420441386

Unavailable

15

Molykote PG 54, 10 g

420899763

Unavailable

16

Starter Grip

572084400

Unavailable
