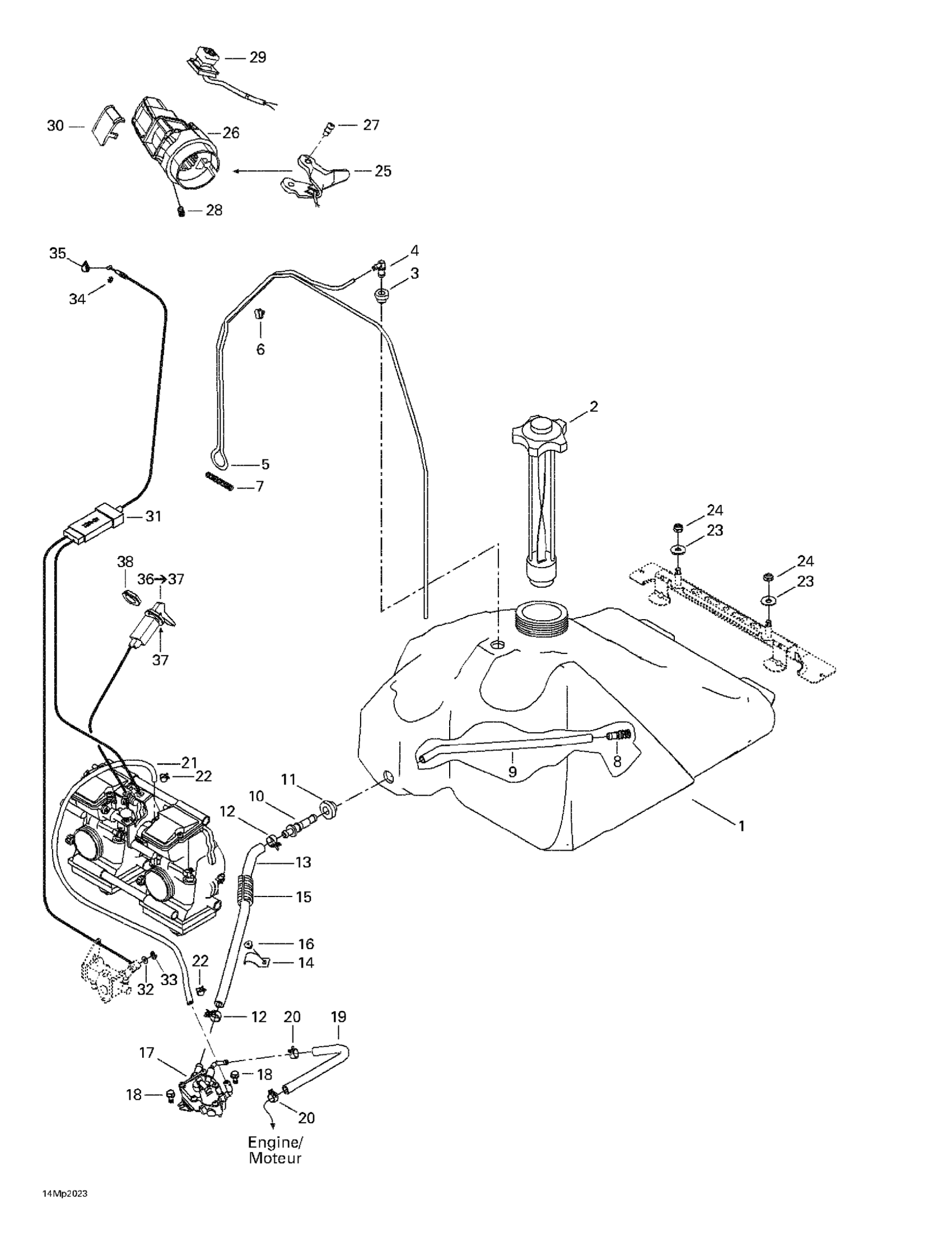

Ski-Doo Summit 800 H.M., 2000 Fuel System Diagram
#
Description
Price
1
Fuel Tank
513032987
Unavailable
5
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
6
TUBE CLAMP - Call your local BRP dealership
513032923
Unavailable
7
SPRING - Call your local BRP dealership
414818200
Unavailable
10
Male Connector
414872700
Unavailable
11
Grommet | Europe
707800347
Unavailable
12
UNIVERSAL SPRING CLAMP - Call your local BRP dealership
513032979
Unavailable
15
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
16
Pop Rivet 3/16"
390406500
Unavailable
17
Fuel Pump | MANUAL STARTER
403901806
Unavailable
18
HEX. SCREW M6 X 12 - Call your local BRP dealership
210361280
Unavailable
19
Hose
219704549
Unavailable
21
Formed Tube | Formula III 700 R.
415117900
Unavailable
22
Spring Clamp
414420700
Unavailable
24
Hex. Elastic Stop Nut M8
232581414
Unavailable
25
Throttle Handle
512059481
Unavailable
26
THROTTLE HOUSING - Call your local BRP dealership
512059763
Unavailable
29
Kill Switch
515175410
Unavailable
30
Switch Cover
572100901
Unavailable
31
THROTTLE CABLE - Call your local BRP dealership
512059112
Unavailable
34
Circlip
414274500
Unavailable
35
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
36
CHOKE CABLE - Call your local BRP dealership | INCLUDES ITEMS 41 TO 42
512059110
Unavailable
37
Lock Washer, Interior Teeth
394103300
Unavailable
38
PLASTIC NUT - Call your local BRP dealership
512059094
Unavailable
