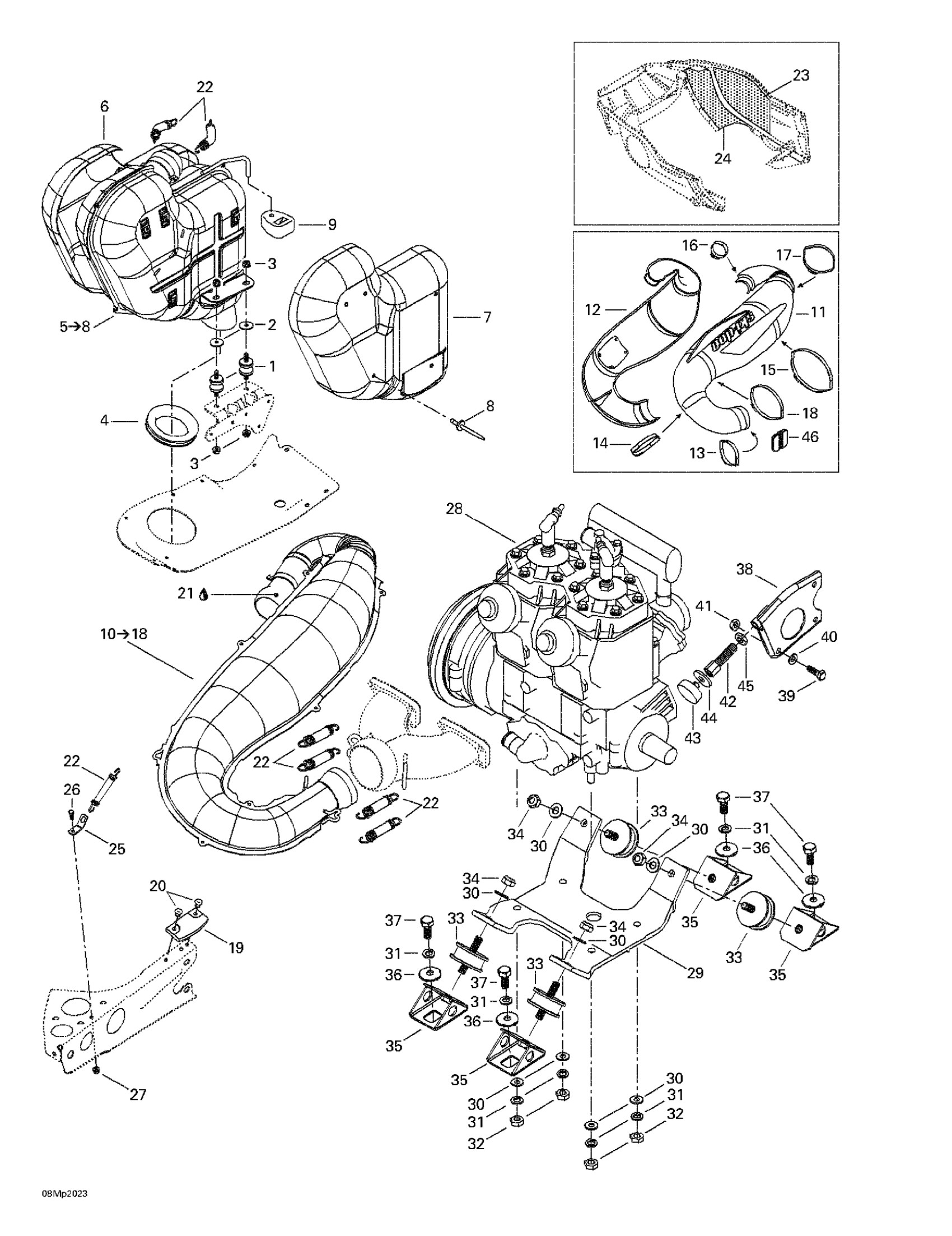

Ski-Doo Summit 800 H.M., 2000 Engine Support And Muffler Diagram
#
1
Rubber Mount
514052994
Unavailable
2
Insulated Washer
514052891
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
Exhaust Grommet
514053064
Unavailable
5
MufflerAss'y
514052995
Unavailable
6
RH Heat Shield
514052732
Unavailable
7
LH Heat Shield | 600
514052733
Unavailable
10
TunedPipeAss'y
514053002
Unavailable
11
Upper Enveloppe
514053008
Unavailable
12
Lower Enveloppe
514053009
Unavailable
13
Norma Gear Clamp
514053074
Unavailable
14
Norma Gear Clamp | Grand Touring 500.
514052962
Unavailable
15
Norma Gear Clamp
514052735
Unavailable
16
Norma Gear Clamp
293650118
Unavailable
17
Norma Gear Clamp | Grand Touring 500.
514052962
Unavailable
18
Norma Gear Clamp | Grand Touring 600.
514052902
Unavailable
19
Rubber Pad
570044100
Unavailable
20
Pop Rivet 3/16"
390406500
Unavailable
21
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
23
Reflective Sheet
514052718
Unavailable
24
Reflective Sheet
514052719
Unavailable
25
Spring Bracket
514053026
Unavailable
26
Hex. Screw M5 X 12
207151244
Unavailable
27
Hex. Flange Elastic Nut M5
233251414
Unavailable
28
<<793>> Engine
400702601
Unavailable
29
Engine Support
512059173
Unavailable
30
Flat Washer 10 mm
234001410
Unavailable
31
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
33
RUBBER MOUNT - Call your local BRP dealership
570128700
Unavailable
35
Engine Support
512050900
Unavailable
36
Lock Washer
512056700
Unavailable
37
Hex. Screw M10 X 25
207102544
Unavailable
38
Support Plate
512058500
Unavailable
40
Flat Washer 8 mm
234081410
Unavailable
41
Hex. Elastic Stop Nut M8
232581414
Unavailable
42
STOPPER SCREW - Call your local BRP dealership
512058800
Unavailable
43
Stopper
512059056
Unavailable
44
WASHER - Call your local BRP dealership
512059057
Unavailable
45
Nut Hexagonal RH.
232026414
Unavailable
46
Rubber Pad | 600
514053180
Unavailable
