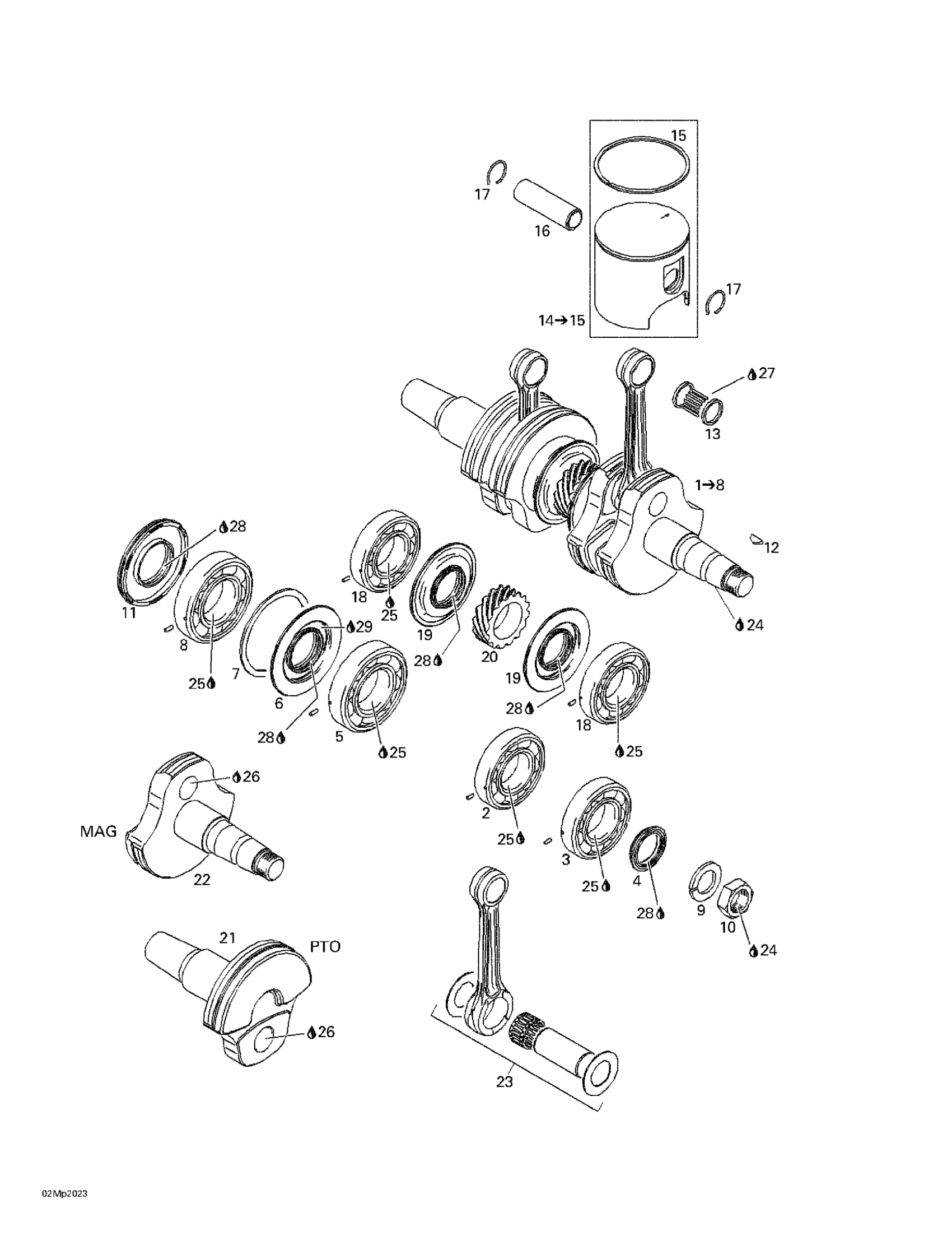

Ski-Doo Summit 800 H.M., 2000 Crankshaft And Pistons Diagram
#
Description
Price
1
Crankshaft Ass'y
420888401
Unavailable
3
Ball Bearing 6207 | With drive pin
420832575
Unavailable
5
Bearing_Ball - Call your local BRP dealership | MX Z 800.
420832601
Unavailable
7
Washer
420926190
Unavailable
8
Bearing_Ball - Call your local BRP dealership | MX Z 800.
420832601
Unavailable
9
Lock Washer, 22 mm
420945759
Unavailable
10
Hex. Nut, M22 X 1.5
420842239
Unavailable
11
Oil Seal | Included in gasket kit
420931284
Unavailable
12
Woodruff Key
420246015
Unavailable
13
Needle Bearing
420832445
Unavailable
145
Piston 81 | Includes 13 to 14 This part replaces 420889456.
420889457
Unavailable
15
SEMI-TRAPEZ RING - Call your local BRP dealership
420815360
Unavailable
6
GUDGEON PIN - Call your local BRP dealership
420916371
Unavailable
17
Piston Circlip
420845106
Unavailable
18
Ball Bearing 6207 | With drive pin
420832575
Unavailable
19
Oil Seal | Formula Deluxe 700.
290931455
Unavailable
20
CENTRAL GEAR - Call your local BRP dealership
420834355
Unavailable
21
CRANKSHAFT (PTO) - Call your local BRP dealership This part replaces 420819032.
420819030
Unavailable
22
Crankshaft (MAG side)
420819060
Unavailable
23
Rod Repair Kit (MAG side)
420888403
Unavailable
Rod Repair Kit (PTO side)
420888404
Unavailable
25
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
26
Sealant Loctite 648
219703000
Unavailable
27
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
28
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
29
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
