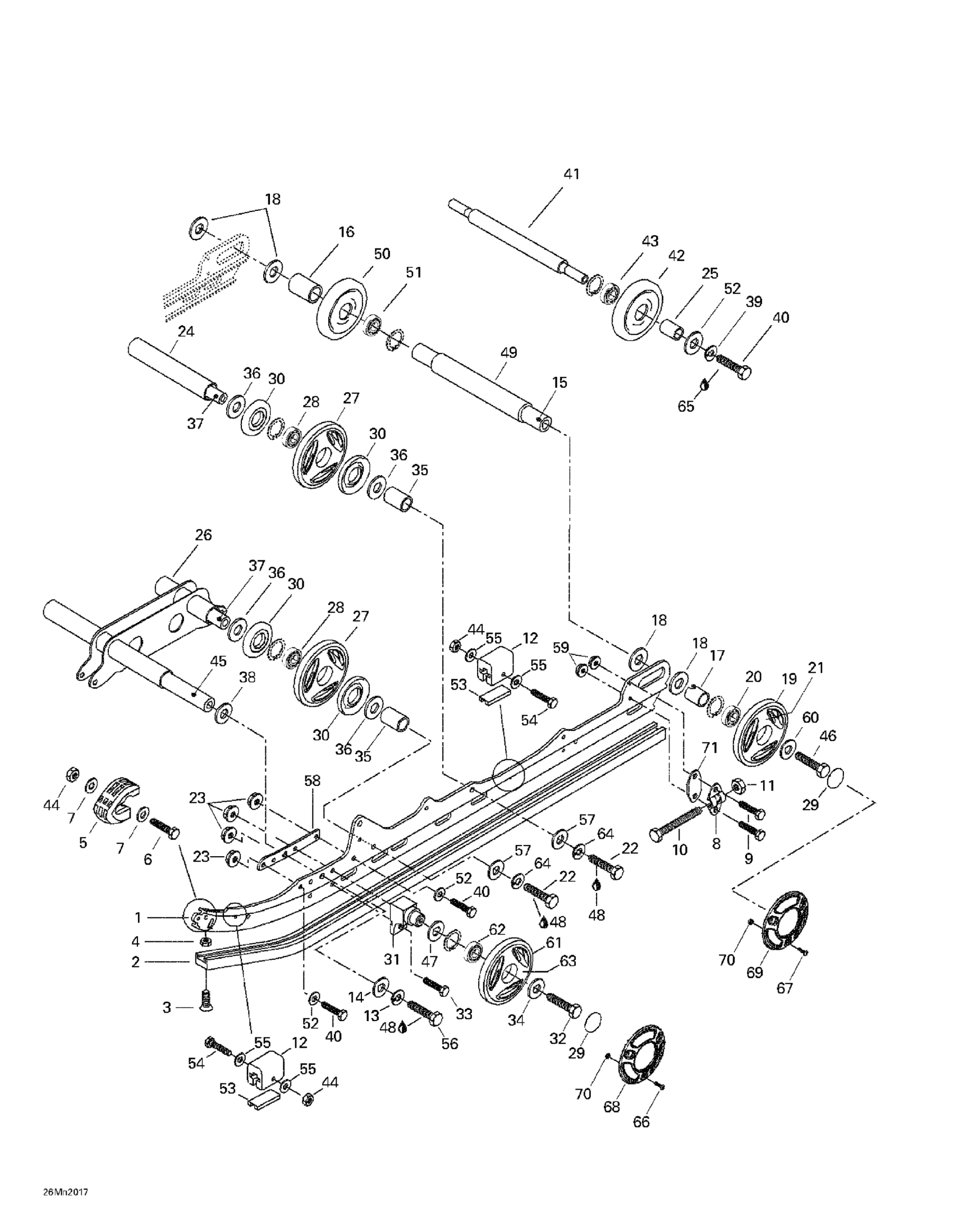

Ski-Doo Summit 700 SB, 2000 Rear Suspension Diagram
#
1
Runner
503189199
Unavailable
Runner | Summit 700 HM.
503189438
Unavailable
2
RUNNER SHOE - Call your local BRP dealership
560103500
Unavailable
Shoe Runner | Summit 700 HM.
503189401
Unavailable
3
Phillips Screw M6 X 25
208562560
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
5
RUNNER PROTECTOR - Call your local BRP dealership
572075400
Unavailable
6
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152544
Unavailable
7
Washer | DS 650 X
391301600
Unavailable
8
Tensioner
503155300
Unavailable
Hex. Screw M6 X 30
207063044
Unavailable
10
HEX. SCREW M10 X 100 - Call your local BRP dealership
230100044
Unavailable
12
Rubber Stopper
570063000
Unavailable
13
Lock Washer 12 mm
234120602
Unavailable
19
Wheel 165 mm Yellow
503190817
Unavailable
19
Wheel 165 | Includes 19 - 20. GT SE Millennium Edition.
503189508
Unavailable
20
Ball Bearing
293350115
Unavailable
21
Wheel 165 mm
503190856
Unavailable
22
Hex. Screw M10 X 35
207103544
Unavailable
23
Hex. Flange Elastic Nut M8
233281414
Unavailable
24
Spacer
503153100
Unavailable
25
Spacer
572048300
Unavailable
26
Shock Support
503189466
Unavailable
27
Wheel 135
503191029
Unavailable
Wheel 139 mm Ass'y
503190798
Unavailable
28
Ball Bearing
293350115
Unavailable
29
Wheel Cap
570063600
Unavailable
30
Labyrinth Shaft
503189314
Unavailable
31
SUPPORT - Call your local BRP dealership
503190389
Unavailable
33
Hex. Screw M8 X 25
207182544
Unavailable
35
SPACER - Call your local BRP dealership
503188800
Unavailable
38
Hardened Washer
503175400
Unavailable
39
Lock Washer 8 mm
234181401
Unavailable
40
Hex. Screw M8 X 30
207183044
Unavailable
41
Wheel Support Axle
503153600
Unavailable
42
Idler Wheel | Includes 48 - 49.
572043500
Unavailable
44
Elastic Stop Nut M5
232551414
Unavailable
45
Lower Axle
503174900
Unavailable
46
Hex. Screw With Nylon
250000019
Unavailable
47
WASHER - Call your local BRP dealership
503173700
Unavailable
48
Loctite 271, 10 ml
293800005
Unavailable
49
CENTRAL SPACER - Call your local BRP dealership
503183000
Unavailable
51
Ball Bearing
293350115
Unavailable
52
Flat Washer 8 mm
234081410
Unavailable
54
HEX. SCREW M5 X 40 - Call your local BRP dealership
207054044
Unavailable
55
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
56
Hex. Screw M12 x 40
207124044
Unavailable
57
Flat Washer 10 mm
234001410
Unavailable
58
Reinforcement Plate
503189197
Unavailable
59
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
61
WHEEL 135 (BLACK) - Call your local BRP dealership | Includes 28 - 29.
572097602
Unavailable
WHEEL 139 MM - Call your local BRP dealership
503190815
Unavailable
61
Wheel 135 | Mach Z R Millennium Edition.
503189511
Unavailable
62
Ball Bearing
293350115
Unavailable
63
Wheel 135 | Includes 18 to 19
503190797
Unavailable
64
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
66
SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership | Grand Touring 600. Grand Touring 800.
208652060
Unavailable
67
Phillips Screw M5 X 25
208652560
Unavailable
68
Chrome Cap
503189509
Unavailable
69
Chrome Cap
503189510
Unavailable
70
Elastic Stop Nut M5
232551414
Unavailable
71
TENSIONER SPACER - Call your local BRP dealership
503189160
Unavailable
