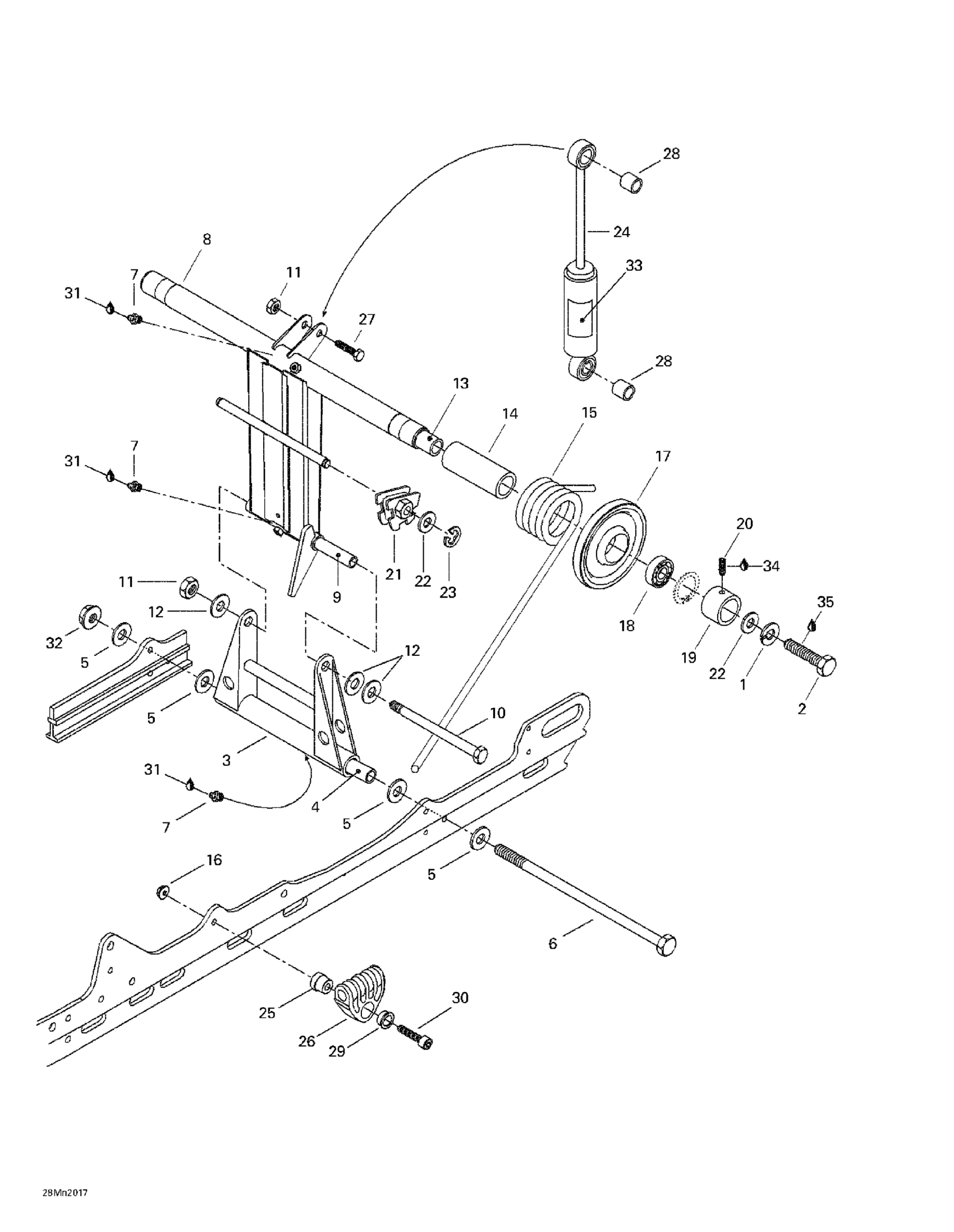

Ski-Doo Summit 700 SB, 2000 Rear Arm, Rear Suspension Diagram
#
Description
Price
1
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
2
Hex. Screw M10 X 35
207103544
Unavailable
4
Lower Axle Pivot
503154703
Unavailable
5
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
6
Bolt M8 X 248mm
503192440
Unavailable
7
Grease Fitting
408200700
Unavailable
8
Rear Arm
503170700
Unavailable
9
Upper Axle, Pivot Arm
503144300
Unavailable
10
Bolt M8, Short
732601197
Unavailable
11
Hex. Elastic Stop Nut M8
232581414
Unavailable
12
Flat Washer 8 mm
234081410
Unavailable
13
Rear Cross Shaft
503168700
Unavailable
14
BUSHING - Call your local BRP dealership
572086000
Unavailable
15
RH Spring (Europe) | MX Z 380 F.
503189354
Unavailable
LH Spring (Europe) | MX Z 380 F.
503189355
Unavailable
16
Hex. Flange Elastic Nut M8
233281414
Unavailable
17
Idler Wheel | Includes 17 - 18.
572091400
Unavailable
18
Ball Bearing
293350115
Unavailable
21
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
23
e Circlip
371907100
Unavailable
24
Rear Shock
503189182
Unavailable
25
Spring Guide Axle
503188934
Unavailable
26
Spring Support
503189657
Unavailable
27
Hex. Screw M8 X 40
207084044
Unavailable
28
Bushing
414936000
Unavailable
29
CUSHION RETAINER - Call your local BRP dealership
503188929
Unavailable
30
Socket Head Screw M8 X 45
205084544
Unavailable
31
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
32
Hex. Flange Elastic Nut M8
233281414
Unavailable
33
HPG Decal (Europe)
516000182
Unavailable
34
Loctite 271, 10 ml
293800005
Unavailable
