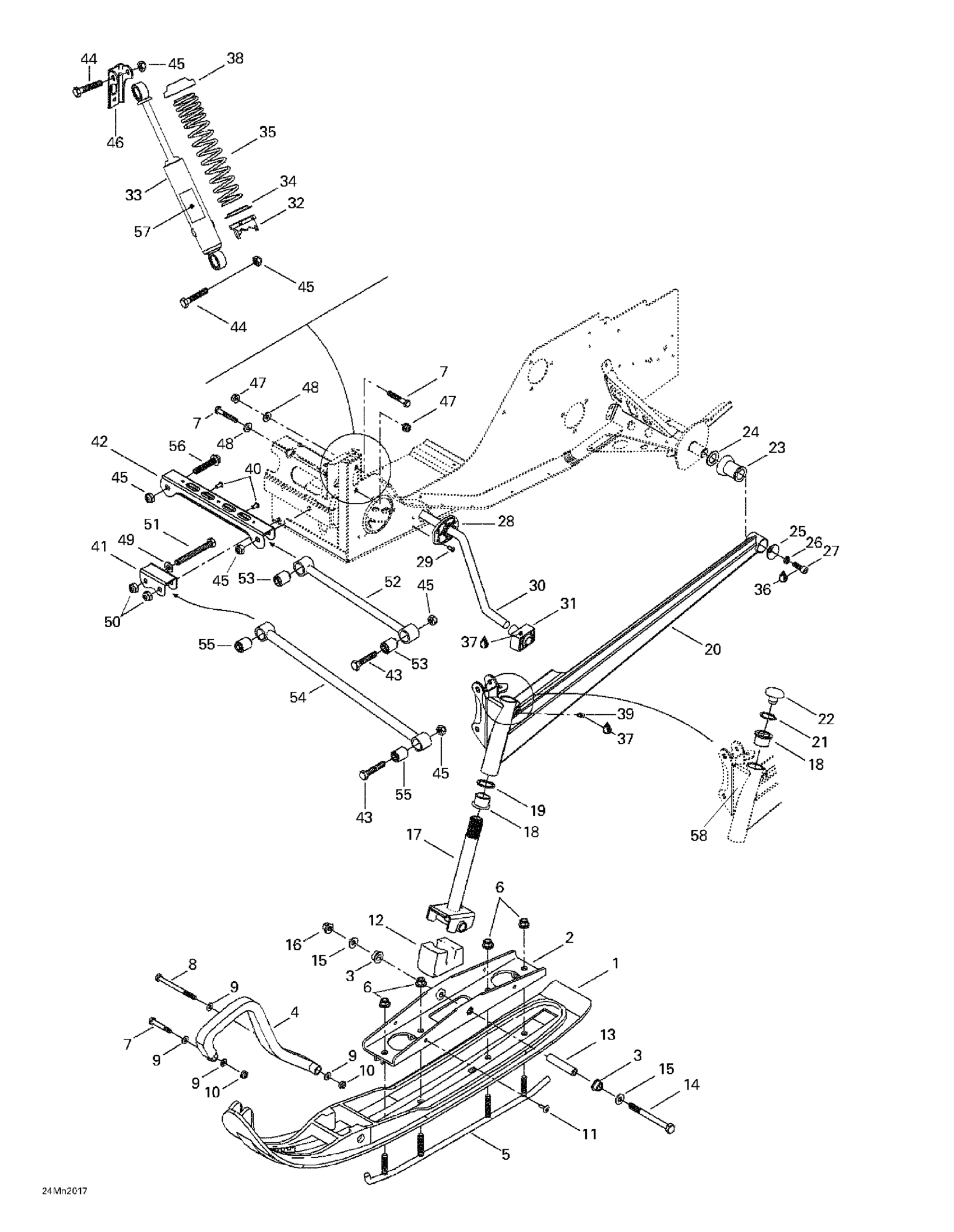

Ski-Doo Summit 700 SB, 2000 Front Suspension And Ski Diagram

#

Description
Price

1

Ski-Liner Flex

505070189

Unavailable

2

Bridge-ass'y | Includes 2 - 3.

505070055

Unavailable

Bridge Ass'y

505070479

Unavailable

3

BUSHING - Call your local BRP dealership

505070001

Unavailable

4

Black, Handle

505070963

Unavailable

5

CARBIDE RUNNER - Call your local BRP dealership

860501900

Unavailable

6

Hex. Flange Elastic Nut M10

233201414

$1.26

7

Hex. Screw M8 X 50

207085044

Unavailable

8

SCREW-HEX. M8 X 100 - Call your local BRP dealership

230080044

Unavailable

9

Flat Washer 8 mm

234081410

Unavailable

10

Hex. Elastic Stop Nut M8

232581414

Unavailable

11

RIVET_POP 1/4 - Call your local BRP dealership

390911100

Unavailable

12

SKI STOPPER - Call your local BRP dealership

505072018

Unavailable

13

Spacer

506133300

Unavailable

14

HEX. SCREW M10 X 110 - Call your local BRP dealership

250000001

Unavailable

15

Washer

732900049

Unavailable

16

Flange Nut M10

732610084

Unavailable

17

Ski Leg

506151234

Unavailable

18

Cushion

505070003

Unavailable

19

WASHER - Call your local BRP dealership

505070004

Unavailable

20

RH Swing Arm

505070521

Unavailable

RH Arm (Chrome) | MX Z 700 SB Millennium Edition.

505070481

Unavailable

LH Swing Arm

505070522

Unavailable

LH Arm (Chrome) | MX Z 700 SB Millennium Edition.

505070482

Unavailable

21

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

22

Cap

572091300

$8.97

23

DAMPER - Call your local BRP dealership

570062200

Unavailable

24

WASHER - Call your local BRP dealership

503146700

$4.42

25

CUP - Call your local BRP dealership

506079600

Unavailable

26

Lock Washer 8 mm

234181401

Unavailable

27

Socket Head Screw M8 X 25

205082544

Unavailable

28

Bushing | 550F

505070191

Unavailable

29

Pop Rivet 3/16"

390402300

Unavailable

30

Stabilisator

505070282

Unavailable

31

BALL JOINT BLOCK - Call your local BRP dealership

505070117

Unavailable

32

Cam

503169000

Unavailable

33

Damper

415105700

Unavailable

34

GUIDE_SPRING - Call your local BRP dealership

503165100

$1.91

35

SPRING - Call your local BRP dealership

505070020

Unavailable

Spring | Summit 700 SB.

505070475

Unavailable

36

Loctite 243, 10 ml

293800060

$20.77

37

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

38

Spring Stopper

706200881

$10.30

39

Grease Fitting

408200700

Unavailable

40

Pop Rivet 3/16"

390402200

$0.26

41

Lower Arm Bracket

505070011

Unavailable

42

Upper Arm Bracket

505070010

Unavailable

43

Hex. Flange Screw M10 X 55

207605544

Unavailable

Hex. Flange Screw M10 X 55

207605544

Unavailable

44

Hex. Screw M10 X 55

207005544

$1.85

45

Elastic Locking Nut M10 X 1.5

233601416

$1.68

46

RH SHOCK BRACKET - Call your local BRP dealership

518317518

$9.20

LH Shock Bracket

518317519

Unavailable

47

Hex. Flange Elastic Nut M8

233281414

Unavailable

48

Washer

506151245

Unavailable

49

Flat Washer 10 mm

234001410

Unavailable

50

Elastic Locking Nut M10 X 1.5

233601416

$1.68

51

Hex. Screw M10 X 95

207009544

Unavailable

52

Upper Arm Ass'y | Includes 52 - 53.

505070404

Unavailable

53

Bushing

505070025

Unavailable

54

Lower Arm Ass'y | Includes 40 - 41.

505070403

Unavailable

55

Bushing

505070025

Unavailable

56

Hex. Flange Screw M10 X 55

207605544

Unavailable

57

Shock Decal

516000183

Unavailable

58

Chrome Plate

505070578

Unavailable
