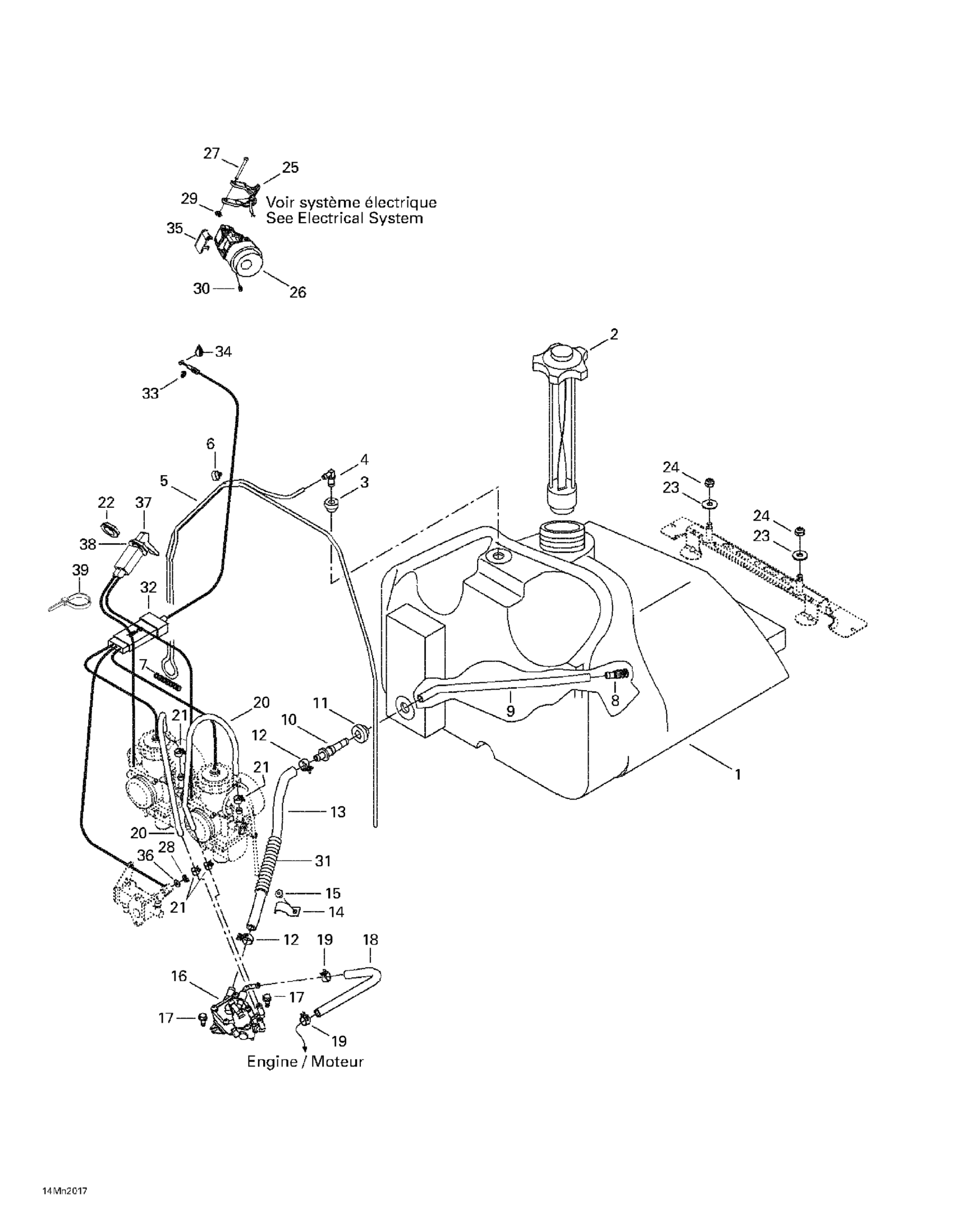

Ski-Doo Summit 700 SB, 2000 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513032987

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$35.35

3

Grommet

513032908

$8.74

4

Male Connector

414814100

$2.18

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

9

Hose

415005700

$5.49

10

Male Connector

414872700

$1.86

11

Grommet | Europe

707800347

$7.58

12

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

13

Formed Hose

513032903

$28.43

14

CLIP - Call your local BRP dealership

415018200

Unavailable

15

Pop Rivet 3/16"

390406500

$0.70

16

Fuel Pump | MX-Z 500.

403901800

Unavailable

17

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

18

Hose

219704549

$47.66

19

Spring Clamp

414415200

$0.83

20

Tube

415117800

Unavailable

21

Spring Clamp

414420700

$0.68

22

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

23

Flat Washer 8 mm

234082410

$1.11

24

Hex. Elastic Stop Nut M8

232581414

$0.47

25

Handle Ass'y 40 mm | MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.

512059172

Unavailable

26

Throttle Handle Housing

572100900

Unavailable

27

Lever Pin

414438700

$11.14

28

Circlip

414753500

$0.59

29

Circlip | Model-RS

414439000

$4.14

30

Socket Set Screw M8 X 10

414440800

$4.00

31

Tubing 16 Mm 1000Mm Long

219704408

$6.23

32

THROTTLE CABLE - Call your local BRP dealership

512059188

Unavailable

33

Circlip

414274500

$0.74

34

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

35

Switch Cover

572100901

$14.54

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Choke Cable | Includes 12 - 13. Formula Deluxe 500.

512059203

Unavailable

38

Lock Washer, Interior Teeth

394103300

Unavailable

39

Tie Wrap 94 mm | 4X4

293750001

$0.83
