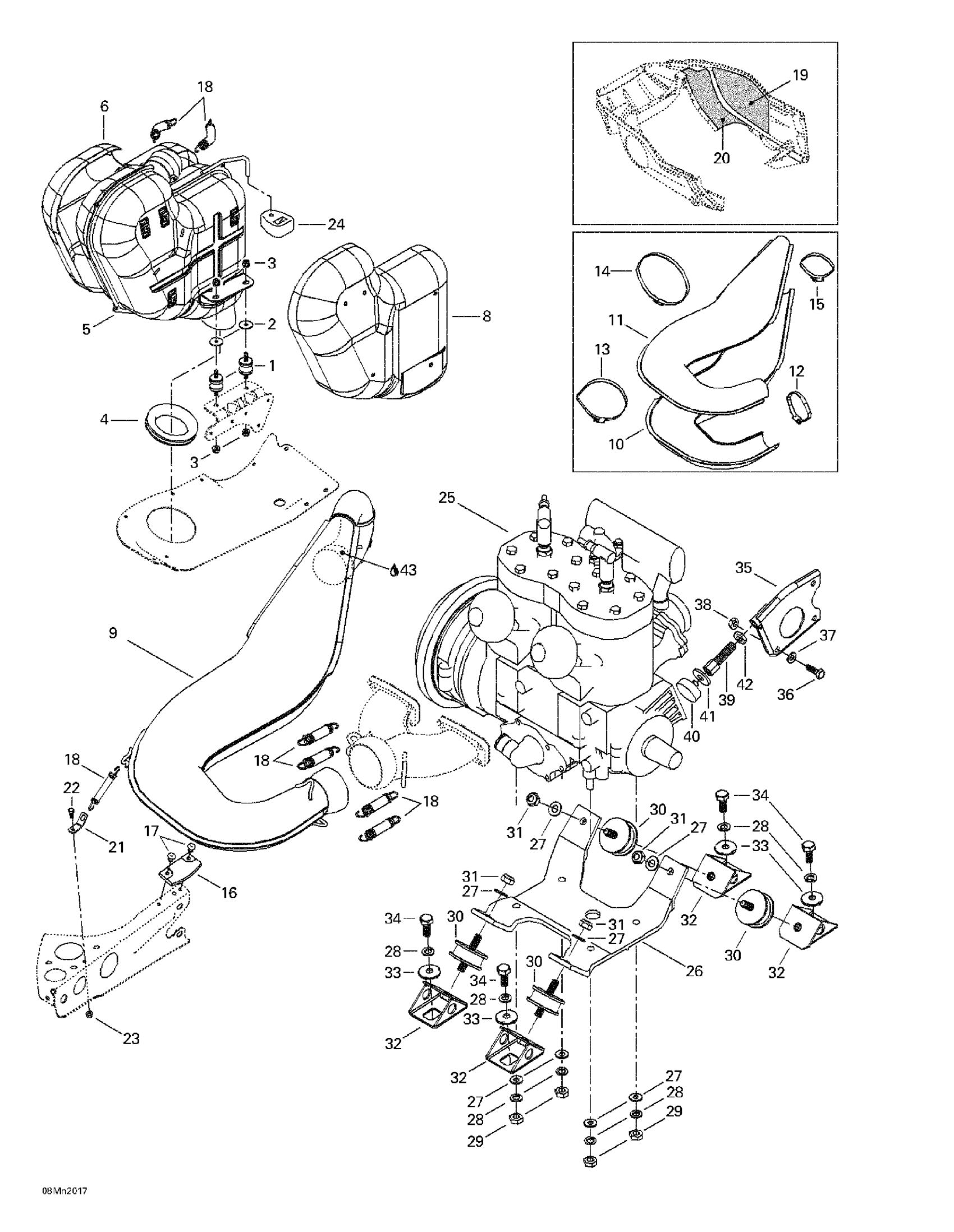

Ski-Doo Summit 700 SB, 2000 Engine Support And Muffler Diagram
#
1
Rubber Mount
514052994
Unavailable
2
Insulated Washer
514052891
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
Exhaust Grommet
514053064
Unavailable
5
Muffler Ass'y | Formula Deluxe 700.
514053035
Unavailable
6
RH Heat Shield
514052732
Unavailable
7
LH Heat Shield | 600
514052733
Unavailable
9
Tuned Pipe Ass'y | Formula Deluxe 700.
514053031
Unavailable
10
Lower Enveloppe
514052984
Unavailable
11
Upper Enveloppe
514052714
Unavailable
12
Norma Gear Clamp
514053074
Unavailable
13
Norma Gear Clamp | Grand Touring 500.
514052962
Unavailable
14
Norma Gear Clamp
514052735
Unavailable
15
Norma Gear Clamp
293650118
Unavailable
16
Rubber Pad
570044100
Unavailable
17
Pop Rivet 3/16"
390406500
Unavailable
19
Reflective Sheet
514052718
Unavailable
20
Reflective Sheet
514052719
Unavailable
21
Spring Bracket
514053026
Unavailable
22
Hex. Screw M5 X 12
207151244
Unavailable
23
Hex. Flange Elastic Nut M5
233251414
Unavailable
25
<<693>> Engine | Formula Z 700.
400604018
Unavailable
<<693>> Engine | MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.
400604011
Unavailable
26
Engine Support
512058000
Unavailable
27
Flat Washer 10 mm
234001410
Unavailable
28
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
30
RUBBER MOUNT - Call your local BRP dealership
570128700
Unavailable
32
Engine Support
512050900
Unavailable
33
Lock Washer
512056700
Unavailable
34
Hex. Screw M10 X 25
207102544
Unavailable
35
Support Plate
512058500
Unavailable
37
Flat Washer 8 mm
234081410
Unavailable
38
Hex. Elastic Stop Nut M8
232581414
Unavailable
39
STOPPER SCREW - Call your local BRP dealership
512058800
Unavailable
40
Stopper
512059056
Unavailable
41
WASHER - Call your local BRP dealership
512059057
Unavailable
42
Nut Hexagonal RH.
232026414
Unavailable
43
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
