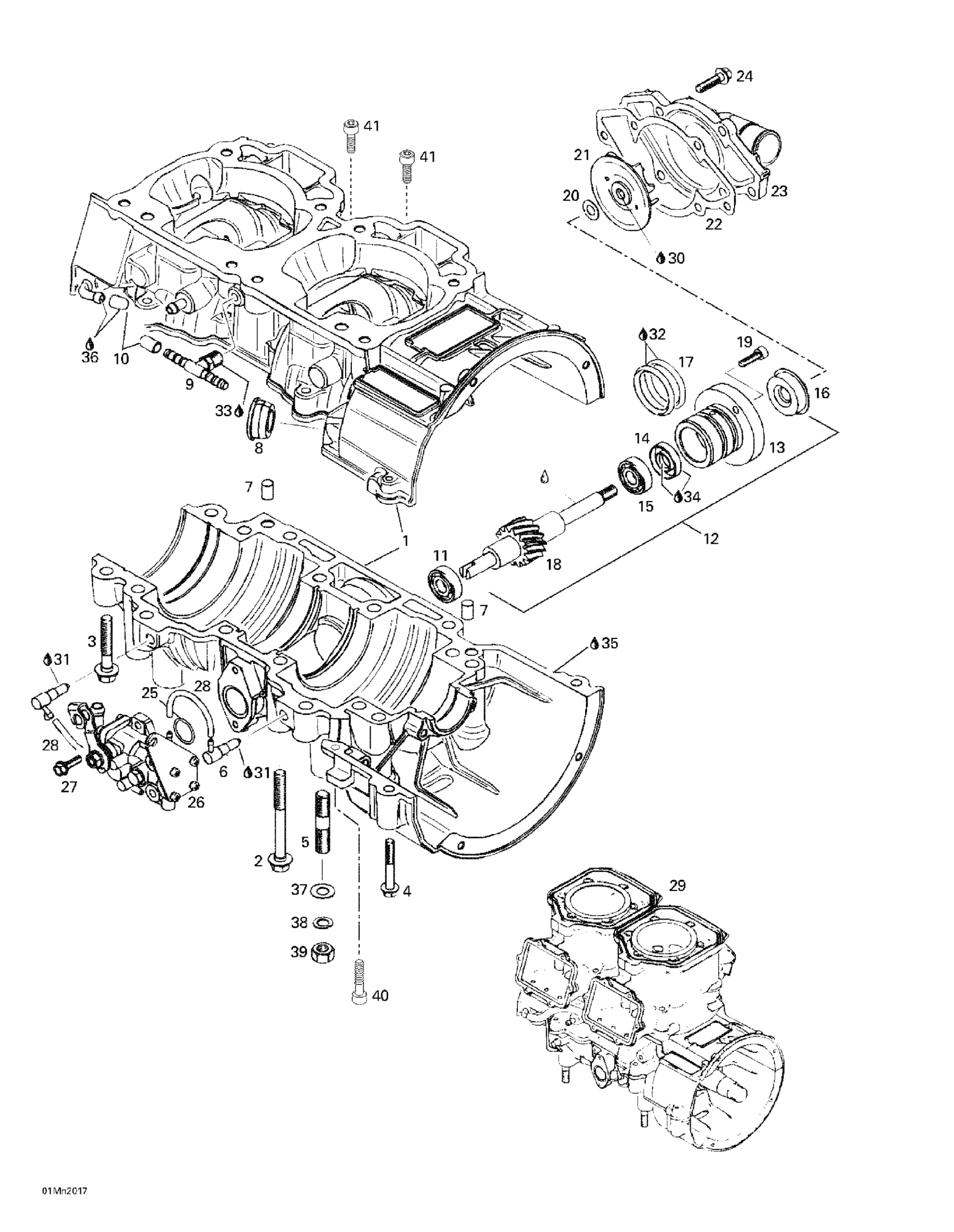

Ski-Doo Summit 700 SB, 2000 Crankcase, Water Pump And Oil Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 11. Formula Z 700.

420888272

Unavailable

Crankcase Ass'y | Includes 1 - 11. Formula Deluxe 700.

420888274

Unavailable

2

Hex. Collar Screw M8 x 75 | Formula Z 700.

420841316

Unavailable

Hex. Collar Screw M8 x 75 | Formula Deluxe 600.

420640831

Unavailable

3

Hex. Collar Screw M8 x 45

420640432

Unavailable

Hex. Collar Screw M8 x 45

420640436

Unavailable

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

Unavailable

5

Stud M10 X 23

420941644

Unavailable

6

Check Valve

420956511

$28.57

7

Center Pin 8 X 12

420632010

Unavailable

8

Cable Grommet

420860965

$13.58

9

T-Fitting | Formula Z 700.

420874360

Unavailable

10

Cap

420960770

$4.00

11

Ball Bearing

420232100

Unavailable

12

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$342.28

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$342.28

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420230195

$12.65

15

Ball Bearing

420232100

Unavailable

16

Rotary Seal

420650371

Unavailable

17

O-Ring

420950890

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Allen Screw M5 x 16

420840514

Unavailable

20

Thrust Washer

420227945

$3.86

21

Water Impeller

420222505

$14.92

22

Gasket This part replaces 420931810.

420931811

Unavailable

23

Water Pump Housing

420922630

$59.20

24

Hex. Screw M6 X 25

420240034

$1.56

25

O-Ring

293300041

$7.05

26

Oil Pump Ass'y | Formula Deluxe 700.

420888265

Unavailable

27

Taptite Screw M5 X 16

420941928

Unavailable

28

Oil Hose 1500Mm Long

219704404

Unavailable

29

Short Block Ass'y | Formula Z 700.

420069302

Unavailable

Short Block Ass'y | Formula Deluxe 700.

420069303

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

Sealant Loctite 648

219703000

Unavailable

32

Dow Corning 111, 150 g

413707000

$57.82

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Petamo Grease, GHY133N, 400 g

420899271

Unavailable

35

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable

36

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable

37

Flat Washer 10 mm

234001410

Unavailable

38

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

39

Hex. Nut M10 X 1.5

232006414

$1.11

40

Socket Head Screw M6 X 30

205063044

Unavailable

41

Socket Head Screw M6 X 20

205062044

$1.07
