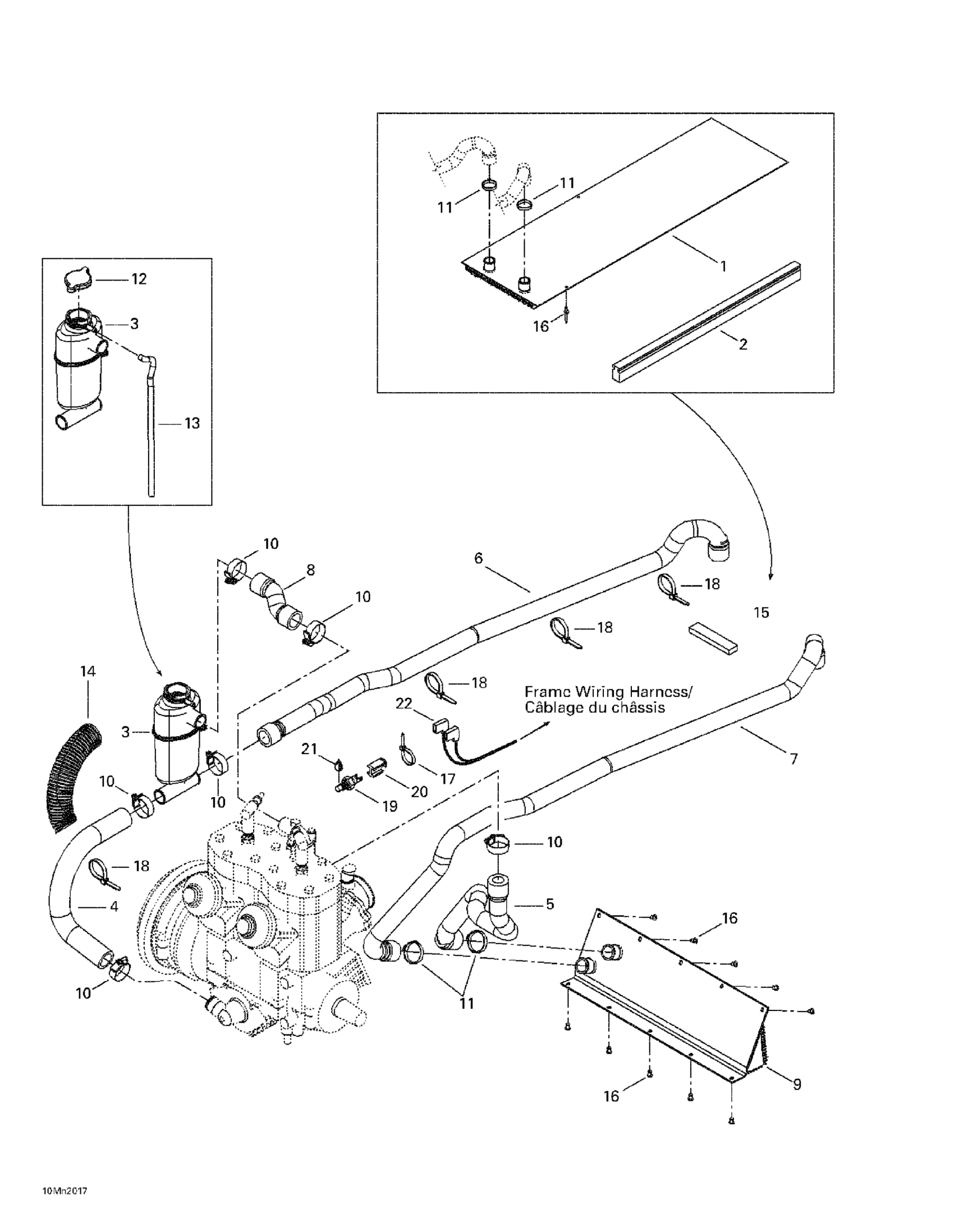

Ski-Doo Summit 700 SB, 2000 Cooling System Diagram
#
Description
Price
1
Rear Radiator | Includes 28 - 29.
517296310
Unavailable
Rear Radiator | Summit 700 HM.
518321868
Unavailable
2
Radiator Protector | Grand Touring 500.
518321656
Unavailable
3
Tank Coolant | Grand Touring 500. This part replaces 509000133.
509000134
Unavailable
4
Engine Inlet Hose
509000001
Unavailable
5
ENGINE OUTLET HOSE - Call your local BRP dealership | Grand Touring 500.
509000046
Unavailable
6
RADIATOR INLET HOSE - Call your local BRP dealership | Grand Touring 500.
509000003
Unavailable
7
Radiator Outlet Hose | Grand Touring 500.
509000004
Unavailable
8
Deviation Hose
509000005
Unavailable
9
Front Radiator
509000070
Unavailable
10
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
11
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
12
Pressure Cap
509000187
Unavailable
13
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
14
Was 415084700 Protective Shield | Grand Touring 500.
219704413
Unavailable
17
Tie Wrap 142 mm
293750002
Unavailable
19
Temperature Sensor | Grand Touring 500.
512047000
Unavailable
20
Connector Plug | Grand Touring 500.
515175297
Unavailable
21
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
