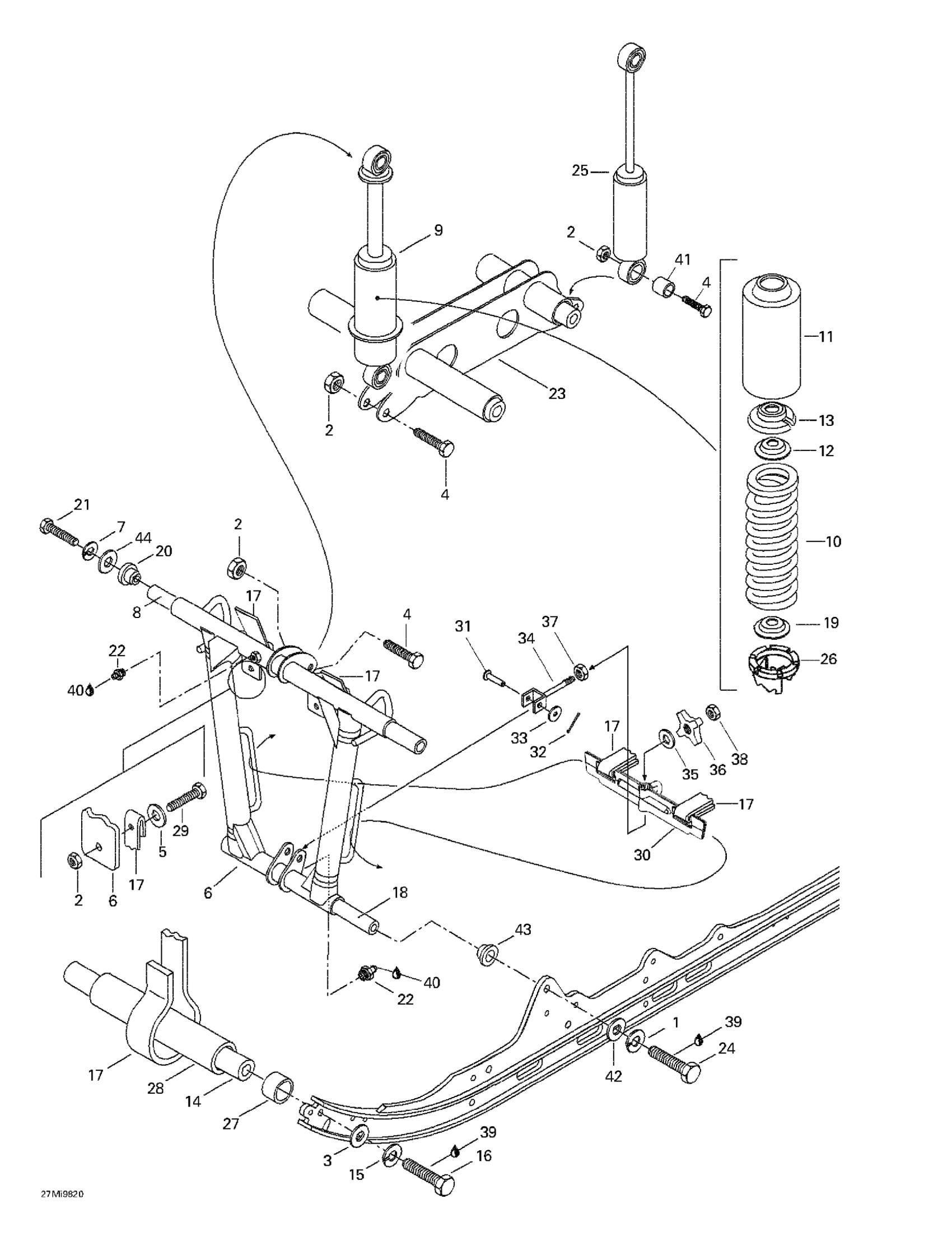

Ski-Doo Summit 670X, 1998 Front Arm, Rear Suspension Diagram
#
1
Lock Washer 12 mm
224721218
Unavailable
2
Hex. Elastic Stop Nut M8
232581414
Unavailable
3
Flat Washer 8 mm
234081410
Unavailable
4
Hex. Screw M8 X 40
207084044
Unavailable
6
Welded Front Arm
503182500
Unavailable
7
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
8
SHAFT - Call your local BRP dealership
503190387
Unavailable
9
Shock | Summit 500.
414975700
Unavailable
10
Spring
415070500
Unavailable
11
Protector
503193663
Unavailable
12
Cap
706200785
Unavailable
15
Lock Washer 8 mm
234181401
Unavailable
16
Hex. Screw M8 X 30
207183044
Unavailable
17
Stopper Strap
503166400
Unavailable
18
Shaft
503182000
Unavailable
21
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
22
Grease Fitting
408200700
Unavailable
23
Shock Support | Summit 700 HM.
503173300
Unavailable
24
Hex. Screw M12 x 60 | Formula Deluxe 500 LC. Formula Deluxe 583.
222026065
Unavailable
25
Shock
415086400
Unavailable
26
Cam
503169000
Unavailable
27
Spacer
572080600
Unavailable
28
Plastic Spacer
572059300
Unavailable
29
Hex. Screw M8 X 25
207182544
Unavailable
30
Belt Bracket
503183600
Unavailable
31
Clevis Pin
415016200
Unavailable
32
COTTER PIN - Call your local BRP dealership
371801000
Unavailable
33
Flat Washer 10 mm
234001410
Unavailable
34
Stopper
503169300
Unavailable
35
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
36
ADJUSTER KNOB - Call your local BRP dealership
572034000
Unavailable
39
Loctite 271, 10 ml
293800005
Unavailable
40
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
41
Bushing
414936000
Unavailable
43
Cushion | Formula Z 583. Formula 583 Deluxe.
415026300
Unavailable
44
Flat Washer 10 mm
234001410
Unavailable
