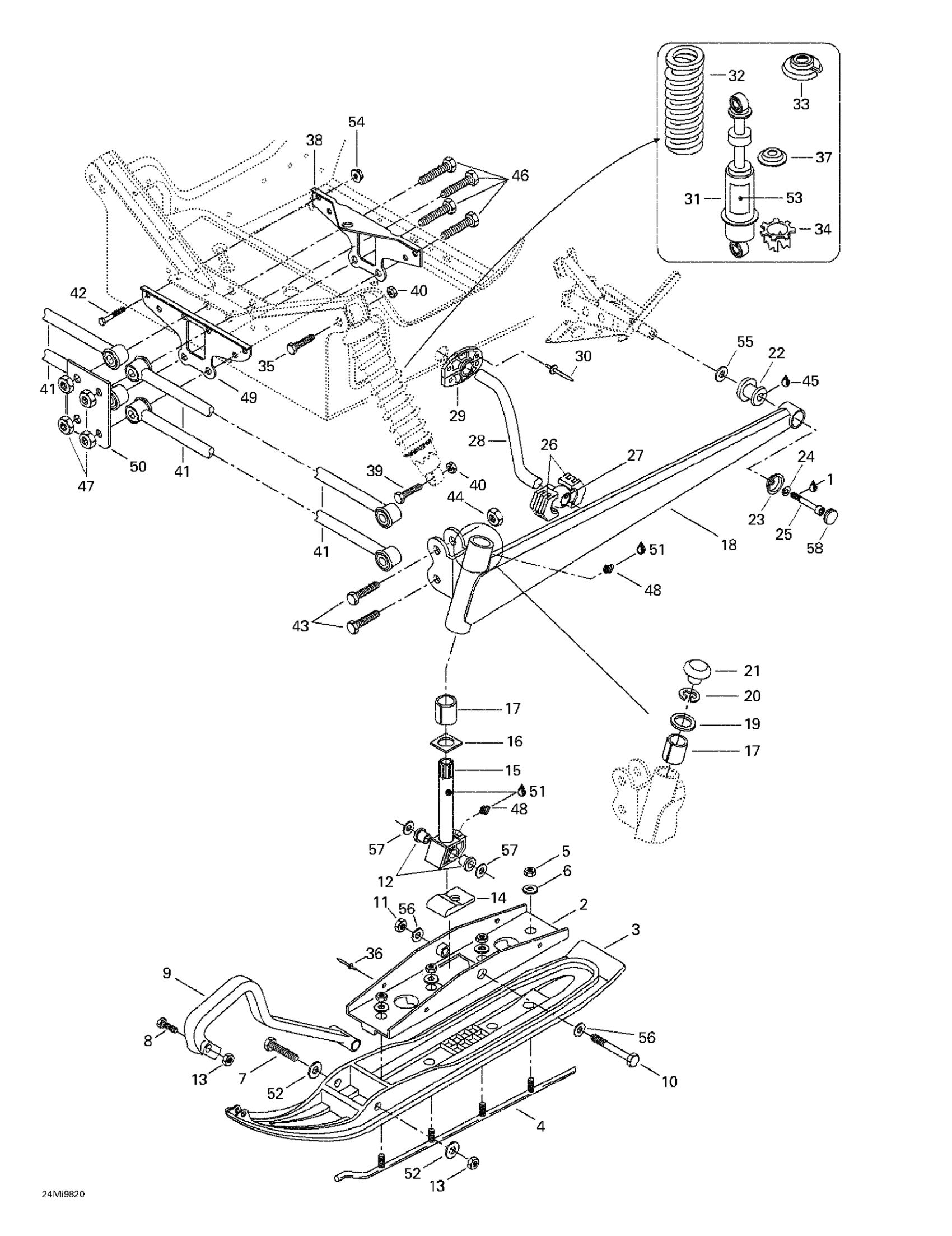

Ski-Doo Summit 670X, 1998 Front Suspension And Ski Diagram
#
2
Bridge Ass'y | MX Z 500. MX Z 583.
580668200
Unavailable
3
Ski-Liner Flex
505070189
Unavailable
4
CARBIDE RUNNER - Call your local BRP dealership
860501900
Unavailable
6
Flat Washer 10 mm
234001410
Unavailable
7
SCREW-HEX. M8 X 100 - Call your local BRP dealership
230080044
Unavailable
8
Hex. Screw M8 X 50
207085044
Unavailable
9
Black, Handle
505070963
Unavailable
10
Hex. Screw M12 x 120
732601169
Unavailable
11
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
12
CUSHION - Call your local BRP dealership
414530600
Unavailable
13
Hex. Elastic Stop Nut M8
232581414
Unavailable
14
Ski Stopper
570053300
Unavailable
15
Ski Leg | Includes 15 - 16.
506144500
Unavailable
16
Wear Plate
506081200
Unavailable
17
Cushion
572069900
Unavailable
18
LH Swing Arm | Formula Deluxe 380.
506144200
Unavailable
RH Swing Arm | Formula Deluxe 380.
506144100
Unavailable
19
Thrust Washer
506080900
Unavailable
20
CIRCLIP - Call your local BRP dealership
371910400
Unavailable
22
DAMPER - Call your local BRP dealership
570062200
Unavailable
23
Cup | Package Hunter
705007171
Unavailable
24
Lock Washer 8 mm
234181401
Unavailable
25
Socket Head Screw M8 X 25
205082544
Unavailable
26
Block Sliding
572069800
Unavailable
27
Ball Joint
506127300
Unavailable
28
Stabilizator | Summit X670.
506127400
Unavailable
29
Half-Bushing | Formula Deluxe 500.
572077600
Unavailable
30
Pop Rivet 3/16"
390402300
Unavailable
31
Shock
414969900
Unavailable
32
Spring (Yellow)
415083700
Unavailable
34
Cam
503169000
Unavailable
35
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
38
Rear Link Plate
517254900
Unavailable
41
Arm Ass'y
580649500
Unavailable
42
Hex. Screw M6 X 55
207065544
Unavailable
43
Hex. Screw M12 x 50
222025075
Unavailable
44
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
45
Grease, Super Lube
293550030
Unavailable
46
Hex. Screw M12 x 100
732601113
Unavailable
47
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
48
Grease Fitting
408200700
Unavailable
49
Front Link Plate
517254800
Unavailable
50
Support
518306700
Unavailable
51
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
52
Flat Washer 8 mm
234081410
Unavailable
53
Shock Decal
418001500
Unavailable
54
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
56
FLAT WASHER - Call your local BRP dealership
506136400
Unavailable
57
Washer
732900048
Unavailable
58
CAP - Call your local BRP dealership
572045900
Unavailable
