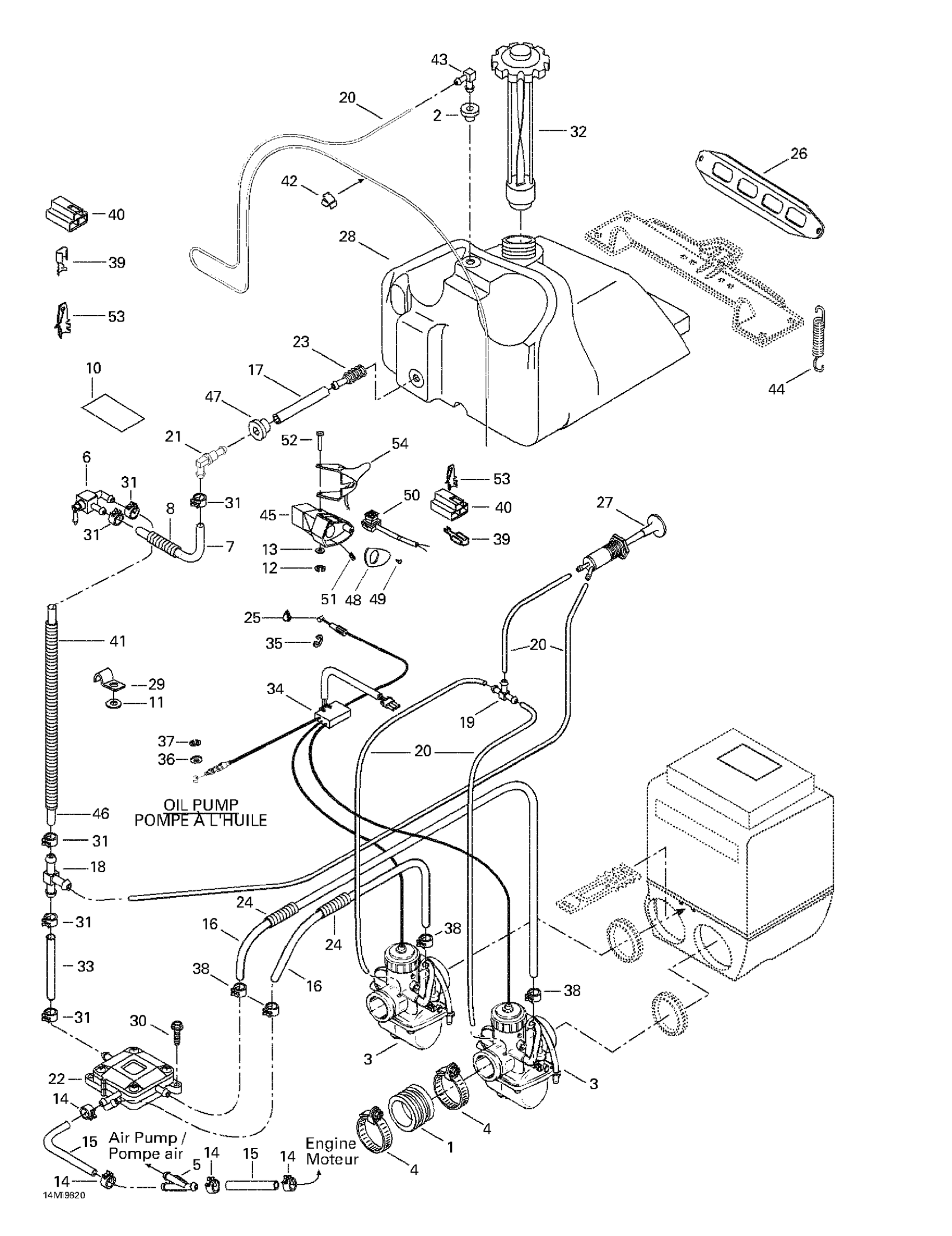

Ski-Doo Summit 670X, 1998 Fuel System Diagram

#

Description
Price

1

Adaptor Carburetor | Summit X670.

570070100

Unavailable

2

Grommet

709200285

$8.13

3

Carburetor VM 44-34 (PTO)

403137600

Unavailable

Carburetor VM 44-35 (MAG)

403137700

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Y-Fitting

293710059

$9.40

6

Shut Off Valve | MX Z 670 HO.

414872200

Unavailable

7

Formed Hose | MX Z 670 HO.

415062400

Unavailable

8

Tubing 16 Mm 1000Mm Long

219704408

$7.15

9

Spring Clamp

414420700

$0.66

10

Security Label | MX Z 670 HO.

414931500

Unavailable

11

Flat Washer

224061121

$0.51

12

Circlip | Model-RS

414439000

$4.01

13

Flat Washer M5, Stainless

234051600

$0.73

14

Spring Clamp

414415200

$0.81

15

Hose

219704549

$46.24

16

Polyurethane Hose 10000Mm Long

219704410

$52.96

17

Hose

415005700

$5.47

18

T-Fitting

415119300

$3.01

19

T-Fitting

414222400

$1.52

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

21

Male Connector | MX Z 670 HO.

572078200

Unavailable

22

Fuel Pump Ass'y | MX Z 670 HO.

403901200

Unavailable

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

24

Tubing 10 MM 1000MM Long

219704407

$2.52

25

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

$32.06

28

Fuel Tank | MX Z 500.

572110700

Unavailable

29

CLIP - Call your local BRP dealership

415018200

Unavailable

30

Hexagonal Head Screw

210262050

$2.00

31

Spring Clamp

414655700

$0.66

32

Fuel Tank Cap | MX Z 670 HO.

513032905

Unavailable

33

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

34

Throttle Cable and Housing (44 mm) | MX Z 670 HO.

415108900

Unavailable

35

Circlip

414274500

$0.85

36

Flat Washer 8 mm, Nylon

234081100

$1.15

37

Circlip

414753500

$0.67

38

Spring Clamp

414554800

$0.81

39

Female Terminal PACKARD

561503200

Unavailable

40

Female Terminal Housing (3 circuits)

409008500

Unavailable

41

Tubing 16 Mm 1000Mm Long

219704408

$7.15

42

Clip

414227300

$1.40

43

Male Connector

414814100

$2.12

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Housing

512060603

$10.25

46

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

47

Grommet | Europe

707800347

$8.70

48

Plate

512060390

$9.03

49

Screw

414473200

Unavailable

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

51

Socket Set Screw M8 X 10

414440800

$3.88

52

Lever Pin

414438700

$10.81

53

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

54

Heat Throttle Handle Ass'y (44 mm) | MX Z 670 HO.

572109400
