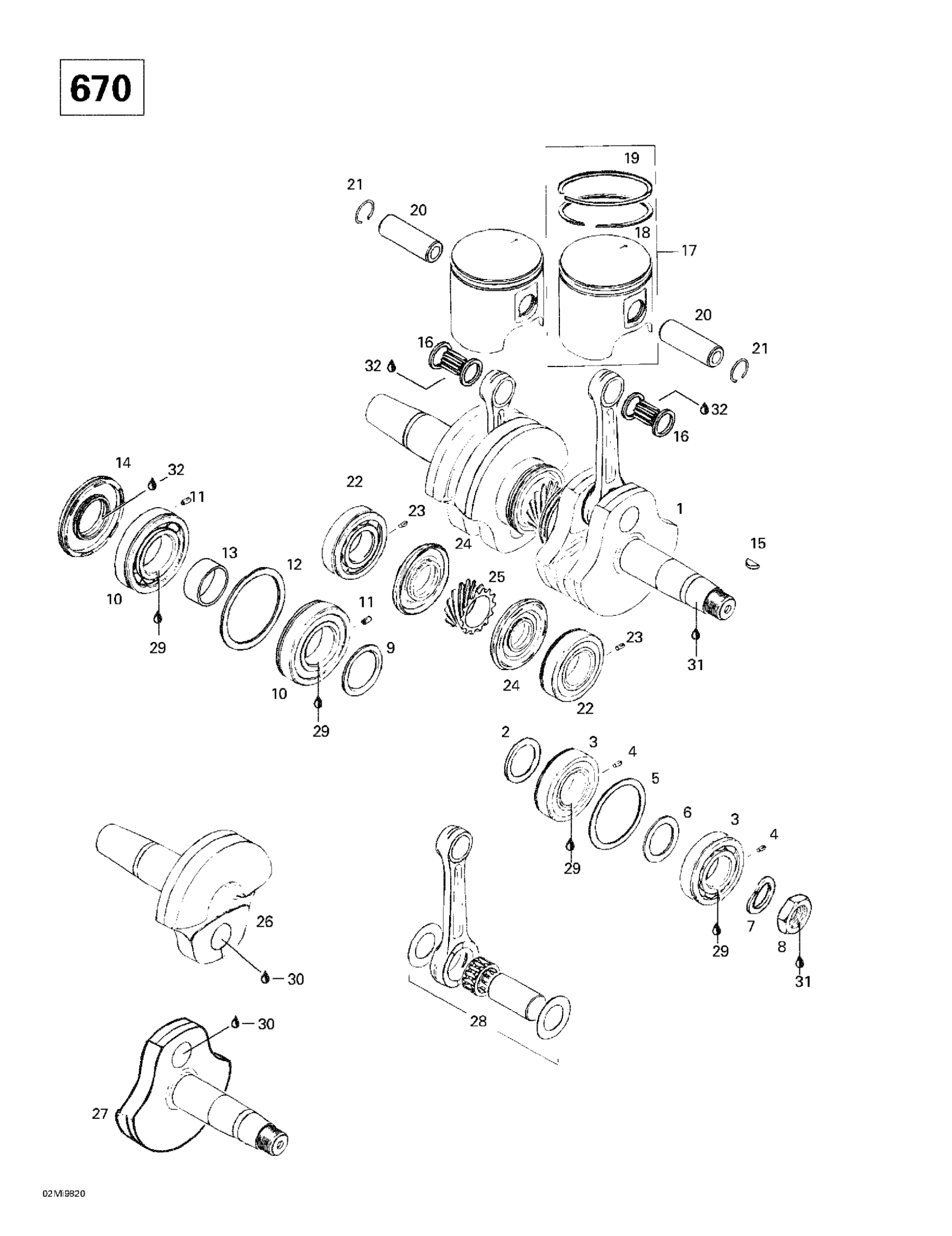

Ski-Doo Summit 670X, 1998 Crankshaft And Pistons (670) Diagram
#
Description
Price
1
Crankshaft Ass'y | Includes 1 - 13. MX Z 670 HO.
420887984
Unavailable
2
DISTANCE RING - Call your local BRP dealership
420827445
Unavailable
3
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
4
Dowel Pin
420929972
Unavailable
5
RETAINING DISK - Call your local BRP dealership
420827050
Unavailable
6
ADJUSTMENT WASHER - Call your local BRP dealership
420427684
Unavailable
7
Lock Washer, 22 mm
420945759
Unavailable
8
Hex. Nut, M22 X 1.5
420842239
Unavailable
9
DISTANCE RING - Call your local BRP dealership
420827760
Unavailable
10
BALL BEARING - Call your local BRP dealership
420832574
Unavailable
11
Dowel Pin
420929972
Unavailable
12
Retaining Disk
420927710
Unavailable
13
Distance Sleeve | Formula Deluxe 500 LC. Formula Deluxe 670.
420847684
Unavailable
14
Oil Seal This part replaces 290831952.
420831952
Unavailable
15
Woodruff Key
420246015
Unavailable
16
Needle Bearing
420832445
Unavailable
17
Piston Ass'y (2 rings 77.90 mm) | MX Z 670 HO.
420887615
Unavailable
Oversize Pist. Ass'y (2 rings 78.15 mm) | MX Z 670 HO.
420887616
Unavailable
18
Rectangular Ring 78.0 mm | Formula Deluxe 670.
420815025
Unavailable
Oversize Rectangular Ring 78.25 mm | Formula Deluxe 670.
420815021
Unavailable
19
SEMI-TRAPEZ RING 78.00 MM - Call your local BRP dealership | Formula Deluxe 670.
420815090
Unavailable
Oversize Semi-trapez Ring 78.25 mm | Formula Deluxe 670.
420815091
Unavailable
20
GUDGEON PIN - Call your local BRP dealership
420916371
Unavailable
21
CIRCLIP - Call your local BRP dealership
420845100
Unavailable
22
BALL BEARING - Call your local BRP dealership | Includes 3 - 4.
420832538
Unavailable
23
Dowel Pin
420929972
Unavailable
24
Oil Seal
420831990
Unavailable
25
Central Gear 14 Teeth
420935748
Unavailable
26
Half Crankshaft (P.T.O.)
420818702
Unavailable
27
Half Crankshaft (MAG)
420818732
Unavailable
28
Crankshaft Repair Kit (MAG side) | Formula Deluxe 670.
420887988
Unavailable
Crankshaft Repair Kit (PTO side) | Formula Deluxe 670.
420887989
Unavailable
29
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
30
Sealant Loctite 648
219703000
Unavailable
